INDUSTRIAL INJECTION PDM-3354CC DODGE PERFORMANCE PISTONS - 1998.5-2002 5.9L CUMMINS 24V (STD BORE)

Step up durability and heat control on your 24-valve build. INDUSTRIAL INJECTION's PDM-3354CC Performance pistons are a standard-bore set for 1998.5-2002 5.9L Cummins. They feature a low-friction coating and chamfered crowns to help reduce scuffing and handle elevated cylinder pressures-ideal for street/strip VP44 trucks targeting reliable power.

Fitment

• 1998.5-2002 Dodge Ram 2500/3500 with 5.9L Cummins 24-valve (ISB, VP44)
• Standard bore (no overbore required). Professional measurement & setup recommended.

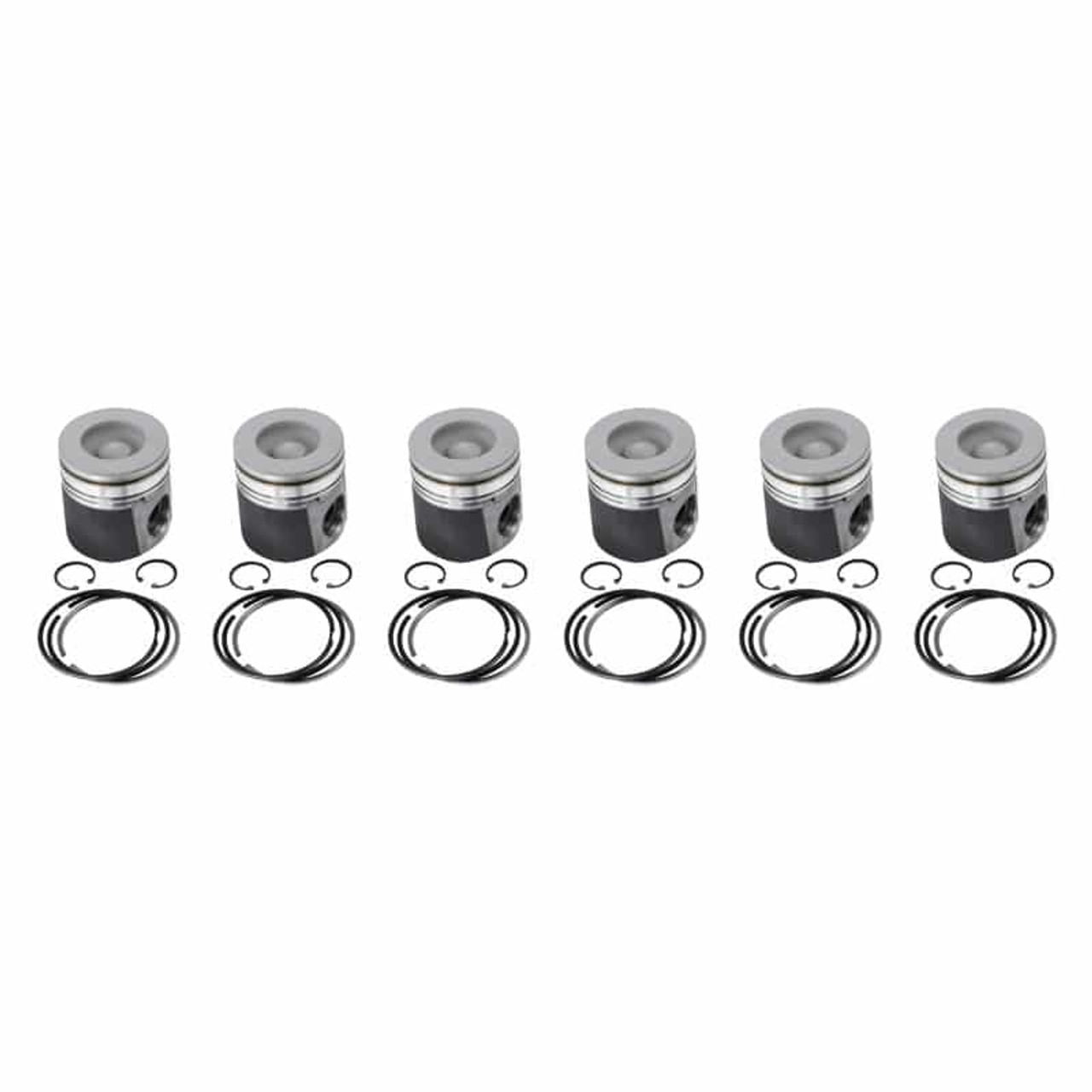

What's Included

• (6) Pistons - standard bore
• Matched rings, wrist pins, and clips

Key Features

• Performance piston set for VP44 24V builds
• Coated skirts to mitigate friction and scuffing under load
• Chamfered crowns to help manage heat and reduce cylinder wall contact at the top
• Complete drop-in set for standard bore blocks

Recommended Parts (CPP Internal Links)

• ARP 247-4202 Head Stud Kit (98.5-02 24V)
• MAHLE HS54174-2 Upper (Head) Gasket Set - 98.5-02 24V
• MAHLE 54174 Cylinder Head Gasket - 98.5-02 24V
• Shop 98.5-02 24V Pistons & Rings
• More 98.5-02 24V Engine Parts & Accessories

Cross-Reference / Alternatives

• PDM-3354 Stock Pistons - Standard Bore
• PDM-3354.040 Stock Pistons - .040 Over
• PDM-3354FCC Race Pistons - Standard Bore
• PDM-3354FCC.020 Race Pistons - .020 Over
• PDM-3354FCC.040 Race Pistons - .040 Over

Helpful Notes

• Measure bores, piston-to-wall clearance, and ring end gaps; follow builder specs.
• Match head gasket thickness and timing/fueling to your power goals.

FAQ

Yes, the performance set uses a low-friction skirt coating to help reduce scuffing and heat-related wear in VP44 builds.

No-PDM-3354CC are standard bore. Have a machine shop verify cylinder roundness/taper before installation; if out of spec, consider .020 or .040 over options listed above.

ARP head studs, a proper 24V head set, and adequate fuel/air supply. For higher boost or competition, consult our 98.5-02 engine parts section for additional upgrades.
