Product Description
Step up durability and sealing on your late 2nd-Gen 5.9L Cummins. Industrial Injection's PDM-3354CC.020 coated & chamfered performance pistons are .020" over to match a fresh bore/hone, with surface treatments designed for heat control and reduced friction in street/tow and performance builds.
Fitment
- 1998.5-2002 Dodge Ram 2500/3500 - 5.9L Cummins 24-Valve (ISB, VP44)
What's Included

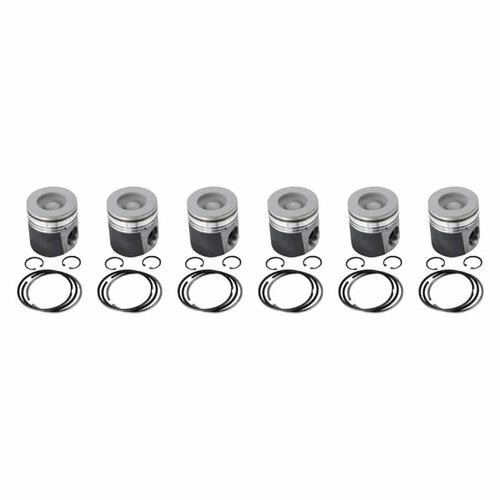

- Complete piston set for 6 cylinders - .020" (0.50 mm) oversize
- Rings, wrist pins, and clips
Key Features
- Coated & chamfered crowns to manage heat and help reduce edge scuffing
- Ceramic skirt coating for lower friction under high load
- Drop-in kit with rings/pins/clips (machine to .020" over and verify clearances)
- Built for street/tow, work, and performance power levels
Recommended Parts (CPP internal links only)
- ARP 247-4202 Head Stud Kit (98.5-02 24V)
- MAHLE HS54174-2 Head/Upper Gasket Set (98.5-02 24V)
- VP44 Injection Pumps & Accessories (98.5-02)
- Need fly-cuts? PDM-3354FCC.020 (.020 Over, Fly-Cut/Coated/Chamfered)
Cross-References & Alternatives
- PDM-3354 (Standard Bore, Stock Replacement)
- PDM-3354.020 (Stock .020 Over)
- PDM-3354CC.040 (Performance .040 Over)
Helpful Notes
- Machine block to .020" over; confirm piston-to-wall and ring end gaps per your build spec.
- Match head gasket thickness, timing, and boost goals with appropriate head studs and fueling/air upgrades.
FAQ
Are these “drop-in pistons?The kit includes rings, pins, and clips, but you must bore/hone the block to .020" and measure all clearances.
What's the difference between CC and FCC pistons?CC = Coated & Chamfered. FCC adds .100" fly-cut valve reliefs for high-lift cams while retaining coatings and chamfers.
Do these require special rings?They include a matched ring set. If you change ring style or end gap targets, consult your machinist and cam/boost plan.
What supporting mods do you recommend?At minimum, ARP head studs and a quality head set. For higher power, ensure adequate fuel supply and VP44 health, plus proper turbo sizing.
| Specifications for INDUSTRIAL INJECTION PDM-3354CC.020 | |
|---|---|
| Brand | Industrial Injection |
| Part Number | PDM-3354CC.020 |
| GTIN | 00840256914245 |
| UPC | 840256914245 |
| Engine Compatibility | 1998.5–2002 Dodge Ram 2500/3500 5.9L Cummins 24-Valve (VP44) |
| Configuration | Coated & chamfered piston kit, .020" over (set of 6) w/ rings, wrist pins & clips |
| Country of Origin | USA |
| Core Charge | Not applicable |
| Shipping Weight | ~20 lb (boxed) |
| Package Dimensions | 15" × 10" × 6" |
| Shipping Method | Ground (parcel) |
| Prop 65 Warning | This product can expose you to chemicals including lead and chromium, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Learn more. |
