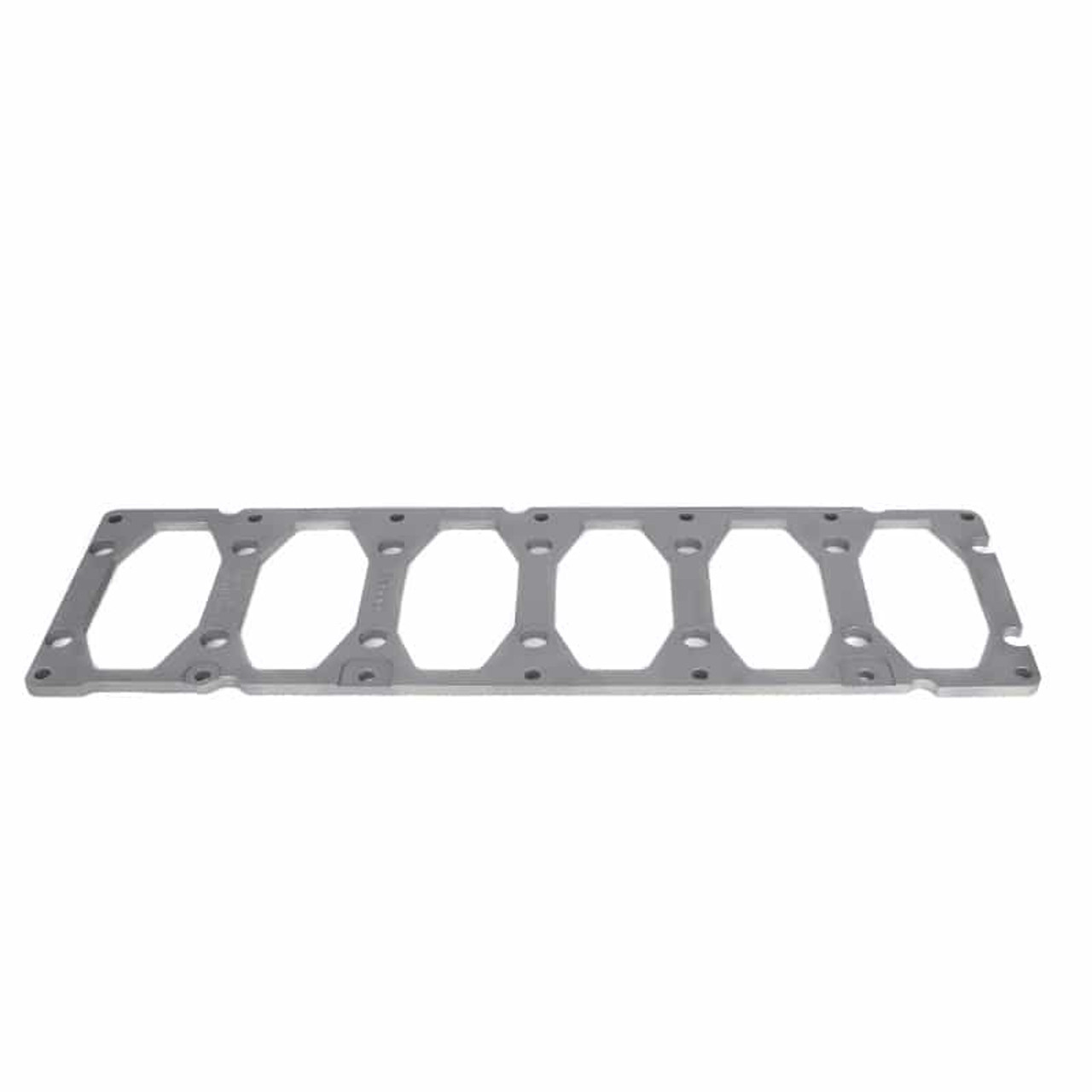

INDUSTRIAL INJECTION PDM-06023 DODGE COMMON RAIL GORILLA GIRDLE FOR 03 AND UP CUMMINS 14MM WITH ARP XL MAIN STUDS

2003+ Common Rail 14Mm Gorilla Girdle W/ Arp Xl Main Studs

This kit includes:

• 1 Gorilla Girdle
• 14 top spacers
• (Large hole) 12 bottom spacers (small hole) 1 rear main spacer bar
• 2 rear main stud nuts (12 point)
• 12 main stud nuts (Nylock)

Before you start. First check the torque on the main studs. 14mm A1, 150 ft lbs

Requires Stamped Oil Pan

Note: On certain 6.7L Cummins engines that come factory with a windage tray instead of a factory girdle you will be required to get the early style longer oil pickup tube bolts as well as an early style oil pickup tube.

We are currently working on a fix for this to prevent any further install issues. Cummins oil pickup tube part number: 3949692 (qty 1) Cummins oil pickup tube bolt part number: 3902460 (qty 2)

Elevate the performance and reliability of your Cummins engine with the INDUSTRIAL INJECTION PDM-06023 Dodge Common Rail Gorilla Girdle. Designed specifically for 2003 and newer Cummins models featuring a 14mm configuration, this advanced girdle serves as a formidable upgrade for high-performance applications. Crafted from durable materials, the Gorilla Girdle enhances the structural integrity of your engine, promoting stability even under extreme conditions.

This comprehensive kit comes with everything you need for a successful installation, including one robust Gorilla Girdle, 14 top spacers, and 12 bottom spacers tailored for both large and small hole setups. Additionally, a rear main spacer bar is supplied along with 2 rear main stud nuts (12-point) and 12 nylock main stud nuts to ensure a secure fit. The intricately designed components not only simplify installation but also contribute to optimal engine performance.

Before you dive into installation, it's essential to check the torque on the main studs, set at 150 ft lbs for the 14mm A1 specification. Please note that the use of a stamped oil pan is required, and for specific 6.7L Cummins engines equipped with a factory windage tray, early-style longer oil pickup tube bolts and an early-style oil pickup tube will be necessary. The required Cummins oil pickup tube part number is 3949692, along with bolts numbered 3902460.

With the Gorilla Girdle, you can enjoy peace of mind knowing that your engine setup is reinforced to withstand the stresses of high-performance driving. Invest in your Cummins today and experience the difference that advanced engineering can make.
