Product Description
Marine big-bowl airflow with performance durability. INDUSTRIAL INJECTION PDM-03523CC.040 pistons are the coated & chamfered (.040" over) version for the 1989-1998 5.9L Cummins 12-valve. The larger “marine bowl improves air/fuel mixing, while the CC spec adds skirt/crown protection and top-edge chamfering to reduce scuffing under heat and load. Complete set with rings, wrist pins, and clips.
Fitment
- 1989-1998 Dodge Ram 5.9L Cummins 12-Valve (6BT) - all VIN/years in this range
- Bore size: .040" over (≈4.056") - requires machine hone/bore
What's Included

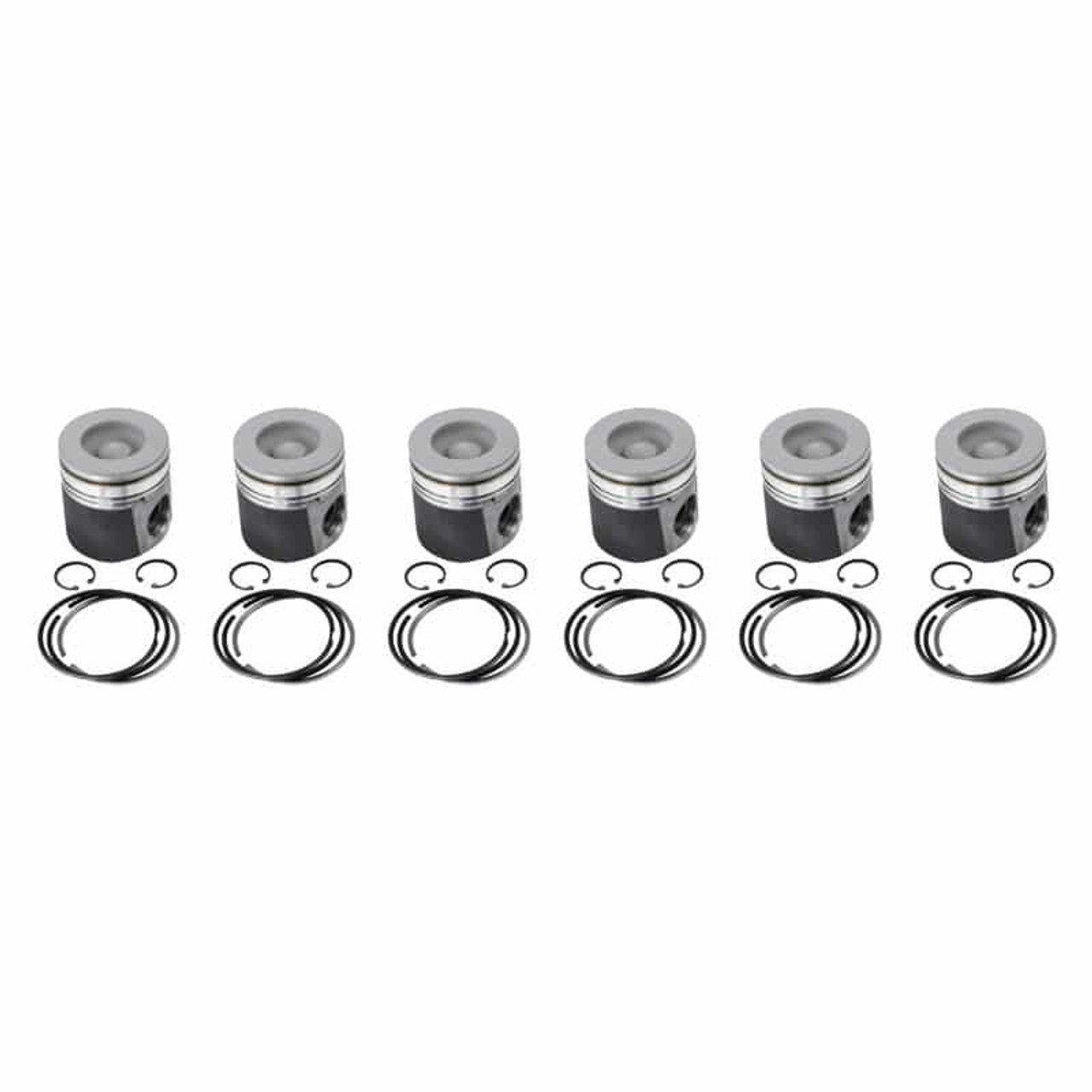

- (6) Coated & chamfered “Marine Big Bowl pistons - .040 oversize
- Matched rings, wrist pins, and clips
Key Features
- Marine big-bowl design for improved mixture and clean burn under load
- CC spec (Coated & Chamfered) to help manage heat and reduce skirt scuffing
- Drop-in component set (after machine overbore), OE pin height and compression ratio
- Built for towing, work, and performance street/marine applications
Recommended Parts (CPP internal links)
- ARP 247-4203 Head Stud Kit - 1989-1998 5.9L 12V
- MAHLE HS4068 Upper Head Set - 1989-1998 12V
- MAHLE 4068C Head Gasket (STD .061") - 1989-1998 12V
- Total Seal S4194-40 Gapless 2nd Ring Set - 4.056" (.040 over)
- CPP Fly-Cut Pistons Service - extra valve clearance for big cams
- Shop All 12V Cummins Pistons & Rings
Cross-Reference / Alternatives
- PDM-03523.040 - Marine Big Bowl (Stock style) .040 over
- PDM-03523CC.020 - Marine Big Bowl Performance .020 over
- PDM-03523CC - Marine Big Bowl Performance (Stock bore)
Helpful Notes
- Machine work required: .040" overbore and proper piston-to-wall clearance and ring end gaps.
- Confirm bowl/CR compatibility with your injector spray pattern, head gasket thickness, and intended boost/fuel.
FAQ
What does “CC mean on this part number?“CC indicates the Coated & Chamfered version. These receive skirt/crown coatings and a top-edge chamfer to help reduce scuffing and heat stress in hard-use builds.
Are these truly drop-in?The set includes rings, pins, and clips, but a .040" overbore/hone and precise measurements are required for correct clearances.
Why the Marine Big Bowl?The larger bowl improves air/fuel mixing and can support cleaner combustion and EGT control under load compared to small-bowl designs.
Which supporting mods are recommended?Head studs, fresh head gasket(s), quality ring sets, adequate fuel supply and cooling. Consider fly-cutting for high-lift cams.
| Specifications for INDUSTRIAL INJECTION PDM-03523CC.040 | |
|---|---|
| Brand | Industrial Injection |
| Part Number | PDM-03523CC.040 |
| GTIN | 00840256913491 |
| UPC | 840256913491 |
| Engine Compatibility | 1989–1998 Dodge Ram 2500/3500 5.9L Cummins 12-Valve (6BT) |
| Configuration | Coated & Chamfered “Marine Big Bowl” Performance Pistons, .040" over; set of 6 with rings, wrist pins & clips |
| Country of Origin | Not specified |
| Core Charge | None |
| Shipping Weight | ~20 lb (package) |
| Package Dimensions | Approx. 18" × 7" × 6" |
| Shipping Method | Ground (UPS/FedEx) |
| Prop 65 Warning | This product can expose you to chemicals including lead and chromium, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Learn more. |
