INDUSTRIAL INJECTION PDM-03513CC DODGE PERFORMANCE PISTONS FOR 89-98 CUMMINS 12 VALVE STOCK

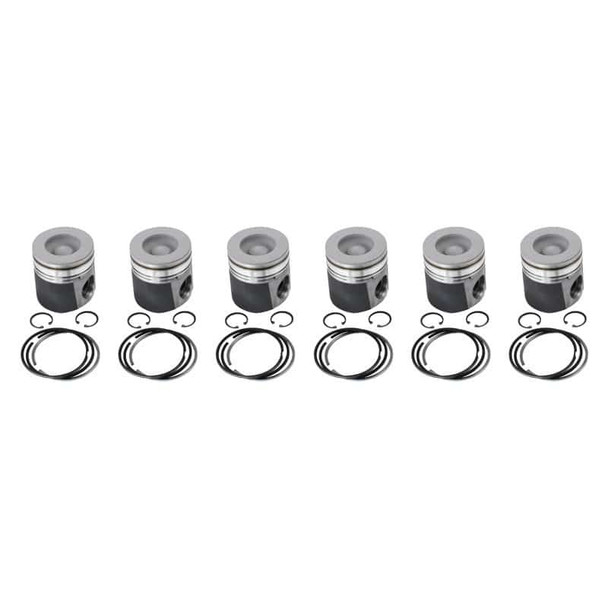

Cummins 2nd Gen 1994-1998 12 Valve Mahle Piston Standard Size Coated Tops and Skirts W /Rings, Wristpins and Clips. PDM's Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi rigid surface experiencing sliding, rotating or oscillating friction.

This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f. This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant. It is used in applications where high temperatures, high loads and high speeds are experienced.

When higher temperatures, than most other types of coatings can provide protection at, are experienced, this coating is fully capable of carrying the load. Gray in color it acquires a glass like finish in use. Cured film thickness of .001 or less requires no change is piston clearance.

PDM's Thermal Barrier Coating for piston tops is designed for Performance engines running; Nitrous oxide, supercharged or Turbocharged. It creates a hard surface specifically designed for engines running High volumes of fuel and/or high compression ratios.

The thermal barrier coating. Reduces part temperature. Keeps heat in combustion chamber longer through the power stroke. Increase torque, H.P. and improved combustion chamber efficiency. 1989-1998 5.9L 12 Valve Cummins Pistons

Stock Piston Features:

• Drop In Replacement
• Complete W/ Rings, Wrist Pins And Clips
• Standard Performance Pistons

Performance Piston Features:

• Drop In Replacement
• Complete W/ Rings, Wrist Pins And Clips
• 020 Oversized
• Chamfered tops
• Thermal Barrier Coating For Piston Tops
• Ceramic Piston Skirt Coating

Race Piston Features:

• Drop In Replacement
• Complete W/ Rings, Wrist Pins And Clips
• 020 Over Sized
• Fly Cut with .100 Valve Reliefs
• Chamfered tops
• Thermal Barrier Coating For Piston Tops
• Ceramic Piston Skirt Coating

Fly Cut (valve relief): .100

Fly cutting is a machining Process we use to add Piston to valve Clearance, when using High lift camshaft.

Chamfering:

Our performance and race Cummins pistons are Chamfered (The top is tapered to help avoid swelling and Scuffing the Cylinder Wall.)

The Industrial Injection PDM-03513CC Dodge Performance Pistons are engineered for optimal performance in the 1989-1998 Cummins 12 Valve engines. This set includes high-quality Mahle pistons in standard size, complete with rings, wrist pins, and clips, ensuring a seamless drop-in replacement that doesn't require modifications.

Constructed with advanced materials, these pistons feature a state-of-the-art ceramic piston skirt coating designed to withstand extreme conditions. It efficiently handles loads exceeding 350,000 PSI while providing exceptional lubrication at temperatures above 1600°F. This unique coating combines the toughness of ceramic resin with superior lubricity, making it ideal for applications where high temperatures and substantial loading occur, ensuring longevity and reliability under stress.

For performance enthusiasts, the PDM's thermal barrier coating on the piston tops is a game-changer. Designed specifically for high-performance engines, including those utilizing nitrous oxide, supercharging, or turbocharging, it offers a hardened surface that effectively reduces temperatures, enhances combustion efficiency, and delivers increased torque and horsepower. By retaining heat longer during the power stroke, this feature maximizes engine output and responsiveness.

The design includes chamfered tops to minimize swelling and wall scuffing, ensuring a smooth and efficient fit within the cylinder. With fly cuts designed to add clearance for high-lift camshafts, these pistons cater to the performance needs of racing enthusiasts as well.

Whether you're replacing stock components or upgrading to performance or race specs, the Industrial Injection Dodge Performance Pistons provide versatility and reliability, making them an essential component for maintaining or boosting the performance of your Cummins engine. Transform your engine's potential with these advanced design pistons tailored for excellence.
