Product Description
Level up your 12-valve build with INDUSTRIAL INJECTION's Coated & Chamfered performance piston set (PDM-03513CC). Engineered for hard-use street, towing, and work trucks, these MAHLE pistons feature a thermal-barrier crown and a low-friction skirt coating to survive heat and cylinder pressure far better than plain stock replacements. Complete drop-in kit with rings, wrist pins, and clips.
Fitment
- 1989-1993 Dodge Ram 5.9L Cummins 12-Valve
- 1994-1998 Dodge Ram 5.9L Cummins 12-Valve
- Factory replacement style, standard bore (STD) - also available in .020 and .040 (see Alternatives below)
What's Included

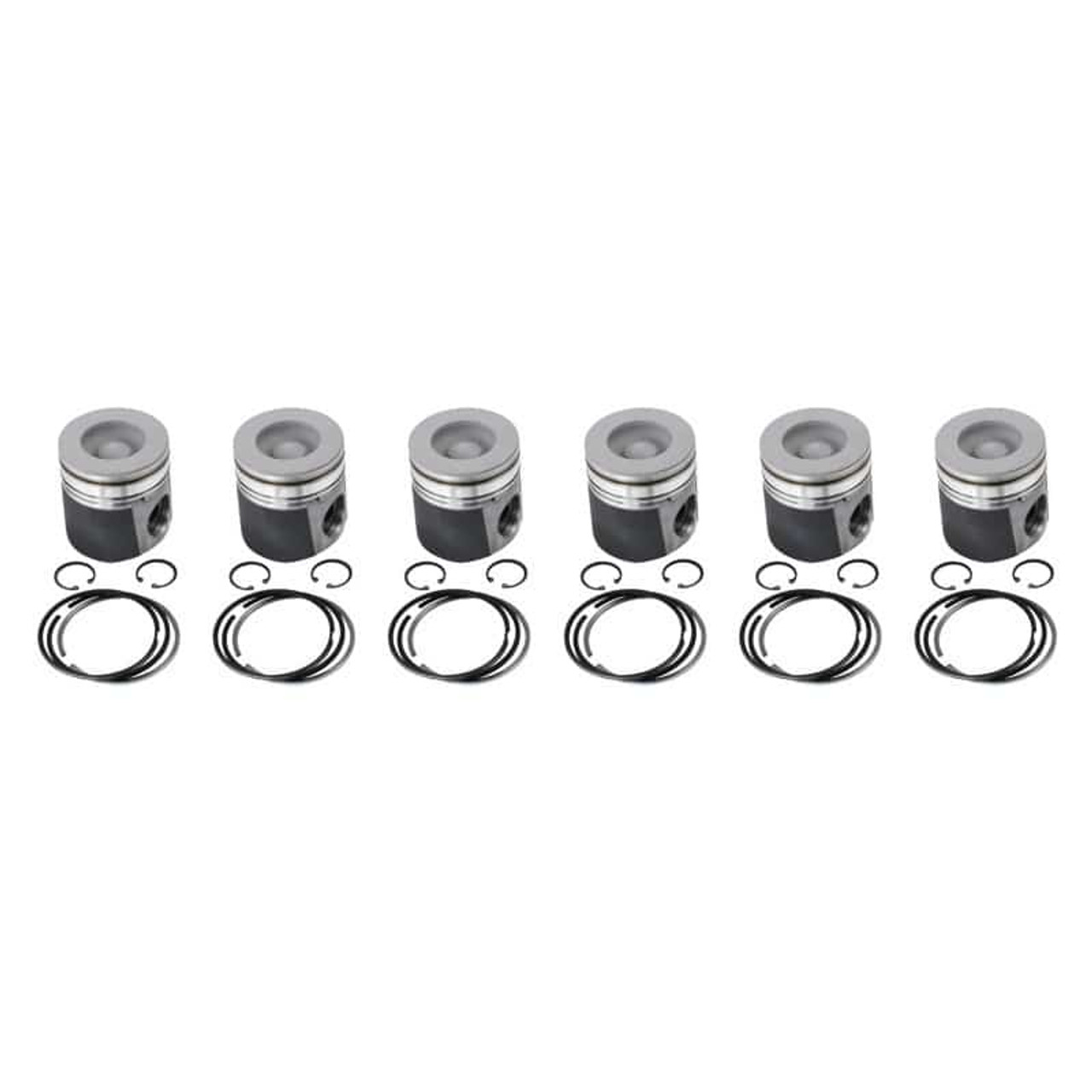

- (6) Performance pistons - Coated & Chamfered (STD bore)
- Matched piston rings
- Wrist pins and pin clips
Key Features
- Thermal-barrier crown coating helps keep heat in the chamber for efficiency and durability
- Low-friction skirt coating reduces scuffing under high load
- Chamfered tops to help mitigate edge-loading and cylinder wall scuffing
- Drop-in replacement with rings/pins/clips included
- Available in STD, .020, .040 sizes
Recommended Parts (CPP internal links)
- ARP 247-4203 Head Stud Kit ('89-'98 5.9L 12V)
- MAHLE HS4068 Upper Head Gasket Set (STD, '89-'98 12V)
- MAHLE 4068C Head Gasket (STD, '89-'98 12V)
- MAHLE S42170 (.040) Single-Cylinder Ring Set - order qty 6 for full engine; see Pistons & Rings (12V) for STD/.020 options
- Cummins 4939587 OEM Oil Pump ('89-'02 5.9L)
- Performance Pushrods & Valvetrain ('94-'98 12V)
Alternatives / Cross-Reference (CPP internal)
- PDM-03513 - Stock Pistons (STD)
- PDM-03513.020 - Stock Pistons (.020 Over)
- PDM-03513.040 - Stock Pistons (.040 Over)
- More Industrial Injection Performance/Race Pistons
Helpful Notes
- Professional measurements required. Verify piston-to-wall clearance and ring end gaps for your use case.
- Match head gasket thickness, injector timing, and turbo/fuel package to your goals (tow, street, or performance).
FAQ
Are these “drop-in without machine work?As a standard-bore kit, many rebuilds are drop-in, but you must confirm cylinder condition and clearances. If out of spec, hone/bore as needed or choose an oversize kit.
What's the difference between Stock, Performance (CC), and Race (FCC) kits?Stock = no coatings; Performance (CC) = coated crown & skirt + chamfered tops (this product); Race (FCC) = CC features plus .100" fly-cut valve reliefs for high-lift cams.
Do these include rings and pins?Yes-each kit includes matched rings, wrist pins, and clips.
Which ring sets should I order if I need extras?Order six single-cylinder ring packs that match your bore size (STD, .020, .040). See our 12V Pistons & Rings section.
Should I add head studs?For towing or higher boost, head studs are strongly recommended for clamping strength and gasket life.
| Specifications for INDUSTRIAL INJECTION PDM-03513CC | |
|---|---|
| Brand | Industrial Injection |
| Part Number | PDM-03513CC |
| GTIN | Not specified |
| UPC | Not specified |
| Engine Compatibility | 1989–1998 Dodge Ram 2500/3500 5.9L Cummins 12-Valve (VE 1989–1993, P7100 1994–1998) |
| Configuration | Performance Piston Set, STD bore — Coated & Chamfered; includes rings, wrist pins, and clips (set of 6) |
| Country of Origin | Not specified |
| Core Charge | None |
| Shipping Weight | ~44 lb (boxed) |
| Package Dimensions | ~18" × 7" × 6" |
| Shipping Method | Ground (parcel) |
| Prop 65 Warning | This product can expose you to chemicals including lead and chromium, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Learn more. |
