Product Description

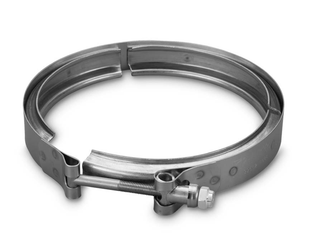

Lock down 5.5-inch V-band connections with the INDUSTRIAL INJECTION 996BK-0636 clamp. Built from 300-series stainless steel with a standard T-bolt latch, this clamp delivers a tight, repeatable seal on high-heat turbo and exhaust joints.
Fitment
- Universal 5.5" V-band applications
- Designed to fit Industrial Injection 5.5" V-band flange (Series TK-1027)
- Common on custom turbo outlets, downpipes, intercooler/charge piping, and exhaust adapters
What's Included
- (1) INDUSTRIAL INJECTION 996BK-0636 - 5.5" V-band clamp
Key Specs
- Material: 300-series stainless steel band
- Latch: Standard T-bolt
- Flange O.D.: 6.23 in (≈ 158.24 mm)
- Apex (band) height: 0.255 in
Recommended Parts (CPP Internal Links)
- Shop V-Band Flanges & Clamps (First-Gen Cummins collection)
- V-Band Flange - S300/S400/S500
- Industrial Injection 99502-0588 - 5.0" V-Band Clamp
- Industrial Injection 996BK-0684 - 6.0" V-Band Clamp
- Industrial Injection 995L6-0588 - 5.0" Marmon Clamp
Helpful Notes
- Verify flange O.D. and band style before ordering (V-band vs. Marmon).
- For best results, use with matching TK-1027 5.5" flange and align joints before final torque.
FAQ
Is this clamp side-specific to a brand of flange?No-it's a universal 5.5" V-band clamp, but it is sized to work with Industrial Injection's 5.5" TK-1027 flange profile for correct clamping range.
What's the difference between a V-band and a Marmon clamp?
Both are band-style couplers, but the mating flange geometry differs. Match clamp style to the flange profile (use Marmon with Marmon flanges).
Will it handle high EGT and vibration?
Yes. The 300-series stainless band and T-bolt latch are designed for high-temp turbo/exhaust service when used with correct flanges and proper alignment.
What if my setup uses 5.0" or 6.0" connections?
See the 5.0" (99502-0588) or 6.0" (996BK-0684) Industrial Injection clamps linked above for the correct size.
| Specifications for INDUSTRIAL INJECTION 996BK-0636 | |
|---|---|
| Brand | Industrial Injection |
| Part Number | 996BK-0636 |
| GTIN | Not specified by manufacturer |
| UPC | Not specified by manufacturer |
| Engine Compatibility | Universal 5.5" V-band applications; fits Industrial Injection TK-1027 5.5" flanges |
| Configuration | 5.5" V-band clamp; 300-series stainless band with standard T-bolt latch |
| Country of Origin | USA |
| Core Charge | None |
| Shipping Weight | 2 lb (approx.) |
| Package Dimensions | Not specified |
| Shipping Method | Small parcel (Ground) |
| Prop 65 Warning | This product can expose you to chemicals including lead and chromium, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Learn more. |
