Product Description

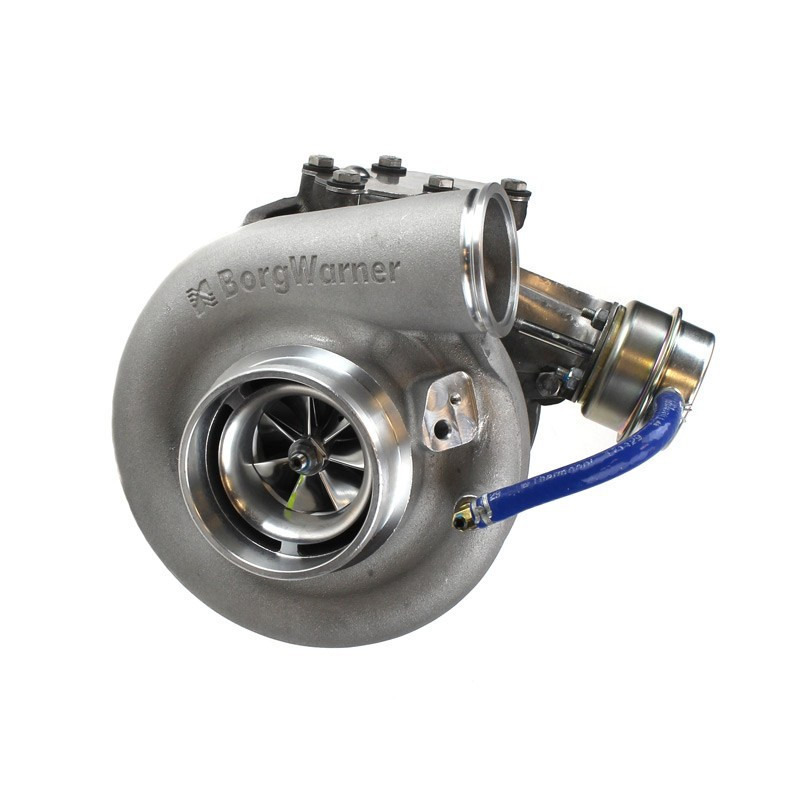

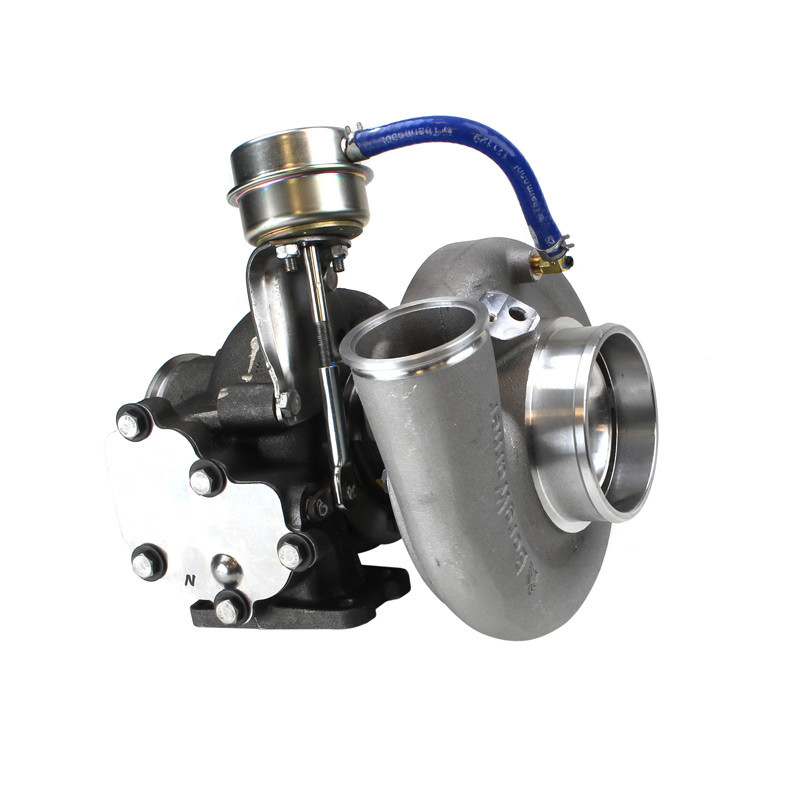

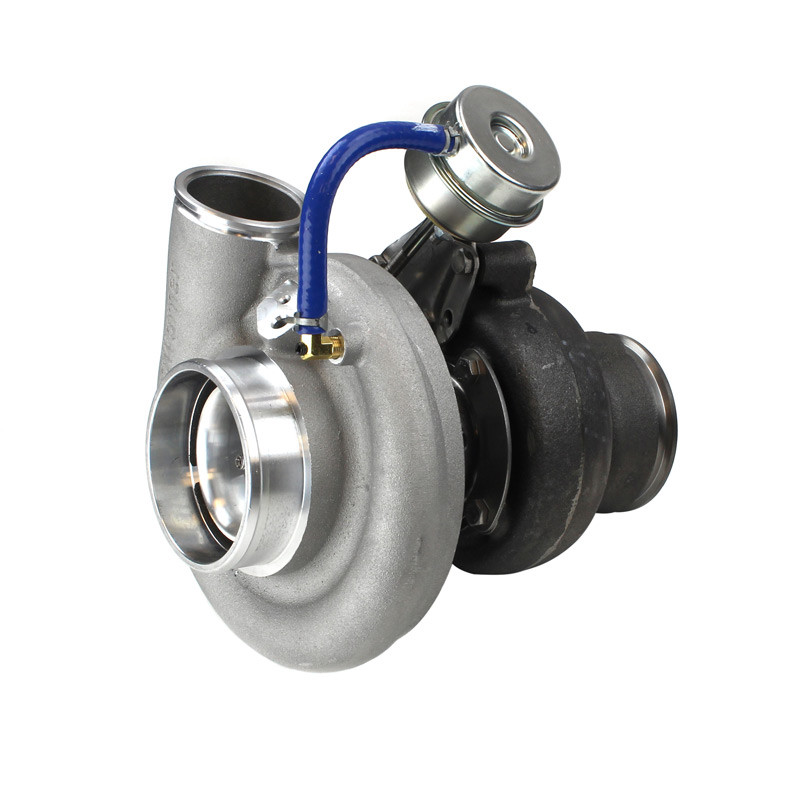

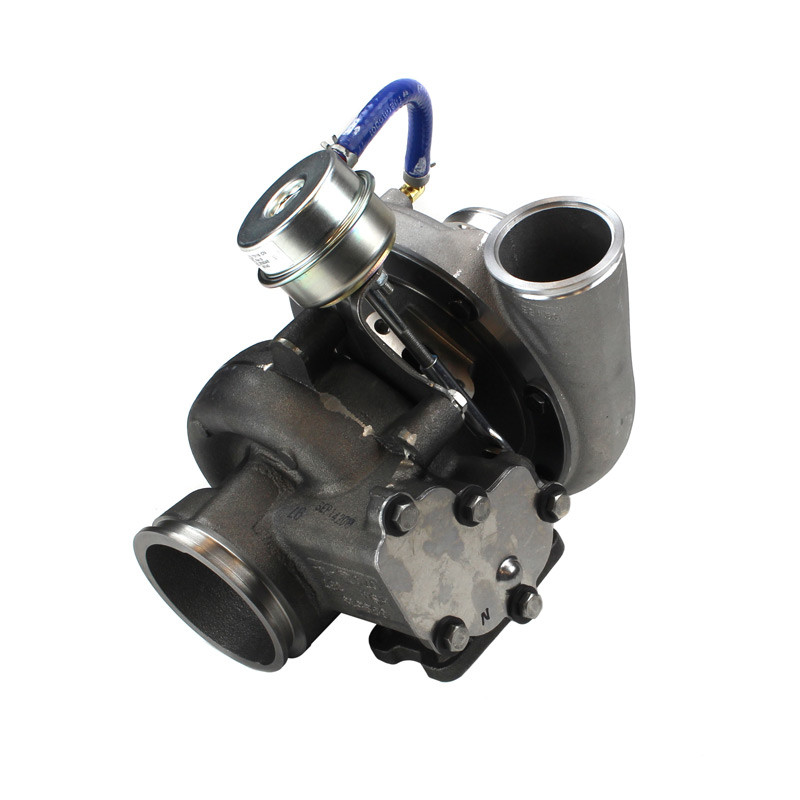

Wake up your 2nd-Gen Cummins. The Industrial Injection PhatShaft 64 (P/N 3642306501) is a drop-in S300SX-R–based turbo with a 64mm forged milled compressor wheel, 65mm turbine, 360° thrust bearing, and a quick-spooling 12cm² turbine housing. It’s built to lower EGTs, improve towing manners, and add strong mid-range power on 1994–2002 5.9L Cummins trucks.
- 64mm FMW compressor, 65mm turbine, 12cm² turbine housing
- 360° thrust & dual-grooved journal bearings for durability
- Excellent for towing/daily with mild fueling upgrades
- Direct-fit for 2nd-Gen Cummins with HX40-style outlet
Fitment
- Vehicle: 1994–2002 Dodge Ram 2500/3500, 5.9L Cummins (12-valve & 24-valve)
- Turbo outlet: HX40/Marmon-style – an HX40 4" downpipe is recommended for best results
- Supports: Mild fueling upgrades; built for towing/daily drivability
Recommended Parts (CPP Diesel only)
- HX40 4" Downpipe & Clamp (Industrial Injection) — HX40DP2
- HX40 4" Downpipe Kit (BD Diesel) — BD 1045223
- HX40 Downpipe + Clamp (MBRP) — MBRP DALHX40
- Compressor Outlet Elbow (HX35/HX40/S300) — CPP 3923178
- Pyrometer (EGT) Gauge — AutoMeter 6144
- ’98.5–02 Exhaust Systems & Hardware — 2nd-Gen 24V Exhaust Category
- ’94–98 Exhaust Systems & Hardware — 2nd-Gen 12V Exhaust Category
Helpful Notes
- Because this turbo uses an HX40-style outlet, a 4" HX40 downpipe is recommended for proper connection and maximum flow.
- Monitor EGTs with a quality pyrometer when towing or running added fueling.
Specifications
| Brand | Industrial Injection |
|---|---|
| Part Number | 3642306501 |
| Compressor Wheel | 64mm (FMW) |
| Turbine Wheel | 65mm |
| Turbine Housing | 12cm² |
| Bearing System | 360° thrust, high-performance journal |
| Outlet Style | HX40/Marmon |
| UPC | 840256909289 |
| GTIN | 00840256909289 |
| Prop 65 | WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov |
FAQ
Will this turbo bolt to my stock manifold?Yes. It’s a direct-fit S300 variant for 2nd-Gen 5.9L Cummins using the stock T3 manifold. The outlet is HX40-style, so plan on an HX40 4" downpipe for best fit.
Is a 12cm² housing too small for towing?
No. The 12cm² housing is chosen for quick spool and strong low- to mid-range response, ideal for towing with mild fueling upgrades.
Do I need to tune the truck after installing?
Tuning isn’t required to run the turbo, but proper fueling and monitoring (boost/EGT) will optimize performance and keep EGTs in check.
What downpipe should I use?
Use an HX40-style 4" downpipe. See our HX40 downpipes and HX40DP2 kit.
Is this CARB approved?
Not CARB legal. Not for sale or use in California on pollution-controlled vehicles.
