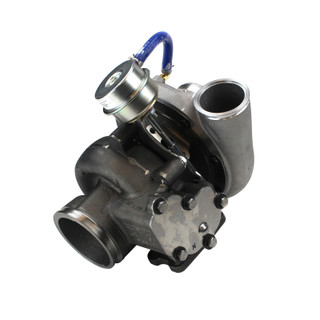

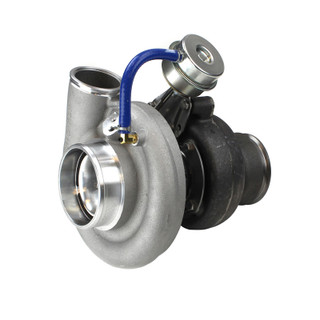

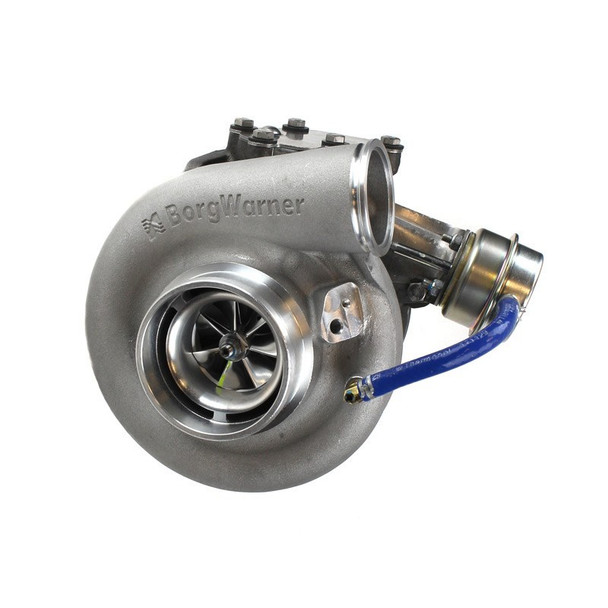

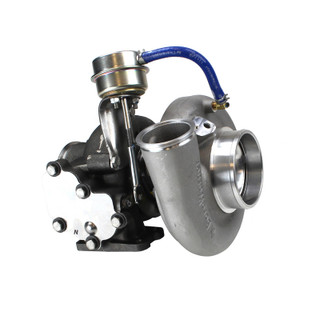

INDUSTRIAL INJECTION 3642306501 DODGE PHATSHAFT 64 TURBO FOR 94-02 5.9L CUMMINS 12CM HOUSING

The Industrial Injection Original PhatShaft Series Turbos were designed to handle mild fueling upgrades to help increase overall performance and be perfect for towing and daily driving.

The PhatShaft comes equipped with an extended tip 62mm, or 64mm forged milled compressor wheel and 360 degree thrust bearing. The PhatShaft utilizes the 65mm turbine wheel and is available in a 12cm or 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel.

Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow. We recommend the 12cm Housing for 12 valve and 24 valve trucks for faster spool up.

Features:

• Increased Performance
• Lower EGTs
• Designed For Towing and Daily Driving
• 64mm Compressor Wheel
• 12cm exhaust housing
• 65mm Turbine Wheel
• (FMW) Forged Milled Compressor Wheel
• 360 Thrust Bearing
• Dual Grooved High Performance Journal Bearings
• Drop In Replacement Turbo

Note: Requires HX40 Downpipe

Note: Depending on the factory oil drain configuration it may need to be slightly modified to clear the wastegate rod

The INDUSTRIAL INJECTION 3642306501 DODGE PHATSHAFT 64 TURBO is the ultimate performance upgrade for 94-02 5.9L Cummins engines, crafted for drivers who demand both power and reliability. This turbocharger seamlessly combines superior engineering with practical applications, making it an ideal choice for towing and daily driving.

Expertly designed to accommodate mild fueling upgrades, the PhatShaft Turbo significantly enhances overall vehicle performance while effectively managing exhaust temperatures. Its state-of-the-art features include a 64mm forged milled compressor wheel and a robust 65mm turbine wheel, which ensure optimal airflow and pressure. The innovative 360-degree thrust bearing provides enhanced stability and longevity, making it a reliable companion on any journey.

The turbo comes with a choice of 12cm or 14cm exhaust housing, expertly optimized for improved wastegate functionality through maximized nozzle angles and enlarged wastegate chambers. This design facilitates better control over boost levels, enabling quicker spool up for your 12-valve or 24-valve trucks; we recommend pairing it with the 12cm housing for the best results.

Designed as a drop-in replacement, installation is straightforward but note that it requires an HX40 downpipe and may need minor modifications to accommodate the factory oil drain configuration.

This turbocharger not only boosts performance but also ensures lower exhaust gas temperatures (EGTs), promoting a more efficient engine operation. With its dual grooved high-performance journal bearings and an adjustable boost elbow, the PhatShaft Turbo offers unparalleled performance for those seeking both power and reliability without compromise. Elevate your driving experience and tackle any terrain with confidence using the INDUSTRIAL INJECTION PhatShaft Turbo.
