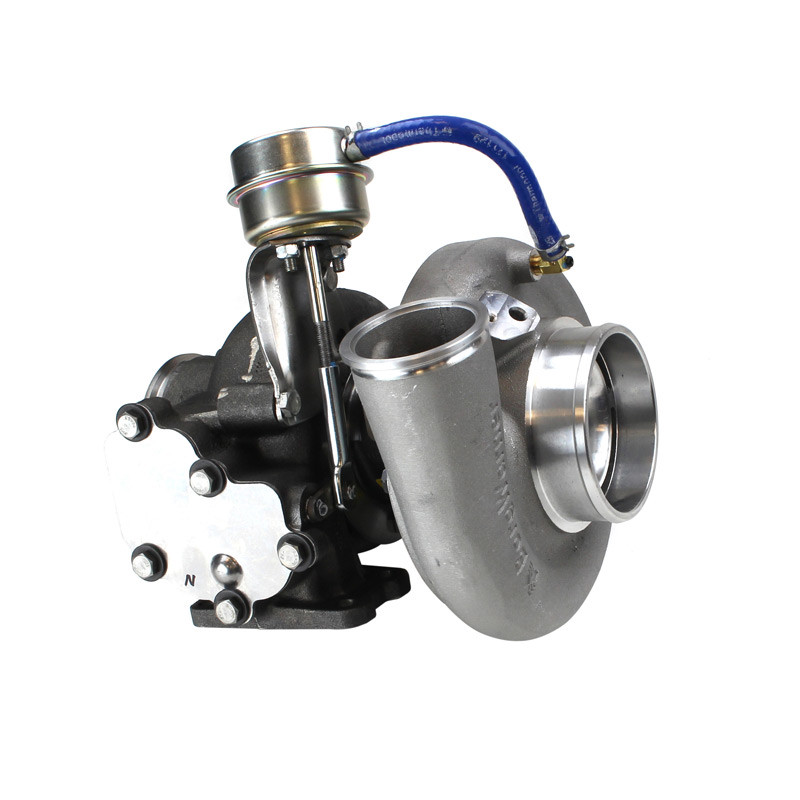

INDUSTRIAL INJECTION 3632306811 DODGE VIPER PHATSHAFT 63 TURBO — 1994–2002 RAM 2500/3500 5.9L CUMMINS — 14CM (.80 A/R) HOUSING

Upgrade your 2nd-Gen 5.9L Cummins (1994–2002) with Industrial Injection’s Viper PhatShaft 63 (PN: 3632306811) featuring a forged-milled 63mm compressor wheel, 68mm turbine, 360° thrust bearing, dual-grooved performance journal bearings, and wastegate porting for strong towing power, lower EGTs, and responsive street manners.

Fitment

• 1994–2002 Dodge/Ram 2500 & 3500 with 5.9L Cummins (12-valve 1994–1998.5, 24-valve 1998.5–2002)
• Direct bolt-on style upgrade for 2nd-Gen trucks (14cm turbine housing / ~.80 A/R)

Why It’s a Killer Upgrade

• Forged-milled 63mm compressor for efficient airflow
• 68mm turbine with optimized wastegate ports and enlarged chamber for full travel
• 360° thrust + dual-grooved bearings for durability under load
• Designed for towing, daily driving, and mild-to-aggressive fueling mods

Installation & Notes

• Requires an HX40-style 4" downpipe on 1994–2002 trucks. We recommend: Industrial Injection HX40DP2 Downpipe & Clamp.
• Depending on factory oil-drain routing, minor clearance tweaks may be needed.

Recommended Complementary Parts

• HX40DP2 4" Downpipe & Clamp (required)
• Turbo install hardware & gasket kit (search your year/engine)
• Upgraded intake/boot for 2nd-Gen 5.9L
• Exhaust manifold gaskets & fasteners

FAQ

Q: What horsepower range does the Viper PhatShaft 63 support?
A: It’s ideal for moderate fueling upgrades on 2nd-Gen 5.9L Cummins builds focused on towing and street performance.

Q: Do I need custom tuning?
A: Not strictly required for a basic bolt-on, but calibrated fueling helps spool and EGT control—especially with larger injectors.

Q: Will my stock downpipe work?
A: No. 2nd-Gen PhatShaft turbos use an HX40-style outlet and require a 4" HX40 downpipe (see recommended parts above).
