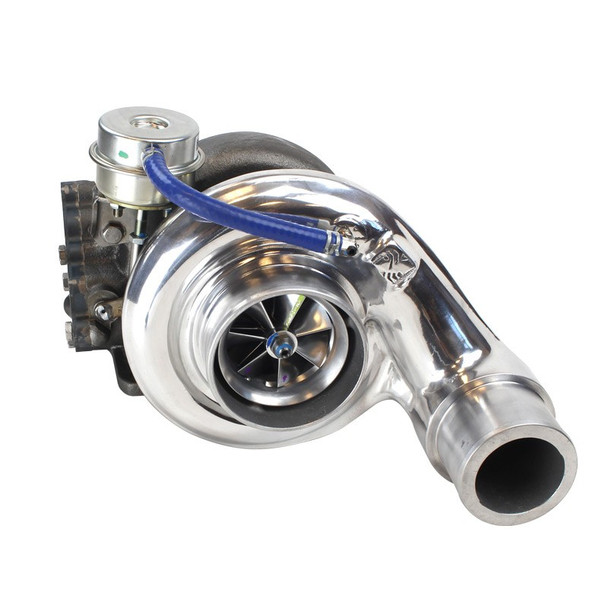

INDUSTRIAL INJECTION 362241741A DODGE SILVER BULLET PHATSHAFT 62 TURBO FOR 03-04 5.9L CUMMINS
- SKU:
- IIS362241741A
- MPN:
- 362241741A
- Shipping:
- Calculated at Checkout
Description
The Silver Series PhatShaft is our latest effort to achieve perfection. Much like the Super PhatShaft it was designed to handle multiple fueling upgrades and comes in three sizes.
62mm 64mm, and 66mm and now 69mm. What separates the Silver Series PhatShaft from the Super PhatShaft is our new technology 74mm turbine wheel.
To improve on the Super PhatShaft turbos we needed improve performance at a lower rpm range and we needed to reduce compressor surge. The solution is the 74mm turbine which is the latest in turbine trim design technology.
The new trim design transfers exhaust gas energy more efficiently than any other turbine on the market. It also allows for better exhaust gas expulsion which results in lower EGT's and quicker rotor acceleration.
The most important benefit of the 74 mm turbine wheel is that it gets rid of turbo surge and broadens the power range. All silver series turbo come with a 360 degree thrust bearing and an appealing polished compressor housing.
The Silver series utilizes the proven 14cm exhaust housing with a modified exhaust nozzle. We maximize the wastegate ports in the 14cm housing by enlarging the diameter. The turbine housing wastegate cover it custom build to allow full wastegate travel. Like all PhatShaft turbochargers they are equipped with dual grooved high performance bearings and an adjustable boost elbow.
The Silver Bullet 62 was designed to handle multiple fueling upgrades and increase overall performance. The Bullet comes equipped with an extended tip 62mm forged milled compressor wheel and 360 degree thrust bearing.
The Silver Bullet utilizes the 74mm turbine wheel and comes standard with an appealing polished compressor housing. The Silver Bullet uses a 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel.
Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow.
Features:
- Increased Performance
- Lower EGTs
- (FMW) Forged Milled Compressor Wheel
- 360 Thrust Bearing
- Dual Grooved High Performance Journal Bearings
- Full Travel Wastegate Modification
The Industrial Injection 362241741A Dodge Silver Bullet PhatShaft 62 Turbo is engineered for unparalleled performance and efficiency, specially designed for the 2003-2004 5.9L Cummins engine. This turbocharger represents a significant advancement in turbine technology, featuring a revolutionary 74mm turbine wheel that enhances exhaust gas energy transfer and dramatically reduces turbo surge, allowing for a broader power range and increased responsiveness across various RPM levels.
Distinctly designed to accommodate multiple fueling upgrades, the Silver Bullet PhatShaft 62 Turbo comes with an extended tip 62mm forged milled compressor wheel that assures superior air intake and improved engine performance. The turbo is built with a robust 360-degree thrust bearing to ensure stability and longevity, complemented by dual-grooved high-performance bearings that optimize operation even under the most demanding conditions.
This state-of-the-art turbocharger also integrates a well-thought-out 14cm exhaust housing with a custom-built wastegate cover. The enhancement of the wastegate ports and modification of the exhaust nozzle angle play a crucial role in mitigating exhaust backpressure, significantly lowering EGTs (exhaust gas temperatures) while promoting quicker rotor acceleration.
Visually striking, the silver polished compressor housing adds a touch of aesthetic appeal to the high-performance engineering of the Silver Bullet. Paired with an adjustable boost elbow, this turbo guarantees optimal performance tuning according to your specific needs.
With its exceptional design and advanced technology, the Industrial Injection Silver Bullet 62 Turbo is the ultimate choice for enthusiasts seeking to elevate their Cummins performance, making it a must-have upgrade for any serious performance vehicle owner. Experience the power and efficiency that comes with superior engineering.
