Product Description
Wake up your 6.7L Cummins with the Industrial Injection S300 SX-E 62/74 single turbo kit (.91 A/R). This 2nd-gen-style swap centers the turbo on a high-flow T4 manifold for quicker spool, lower EGTs, and rock-solid reliability versus the factory VGT. Ideal for street/strip builds targeting strong, usable power with clean drive pressure.
Fitment
- 2007.5–2009 Dodge Ram 2500/3500 6.7L Cummins (late-3rd gen), manual or automatic

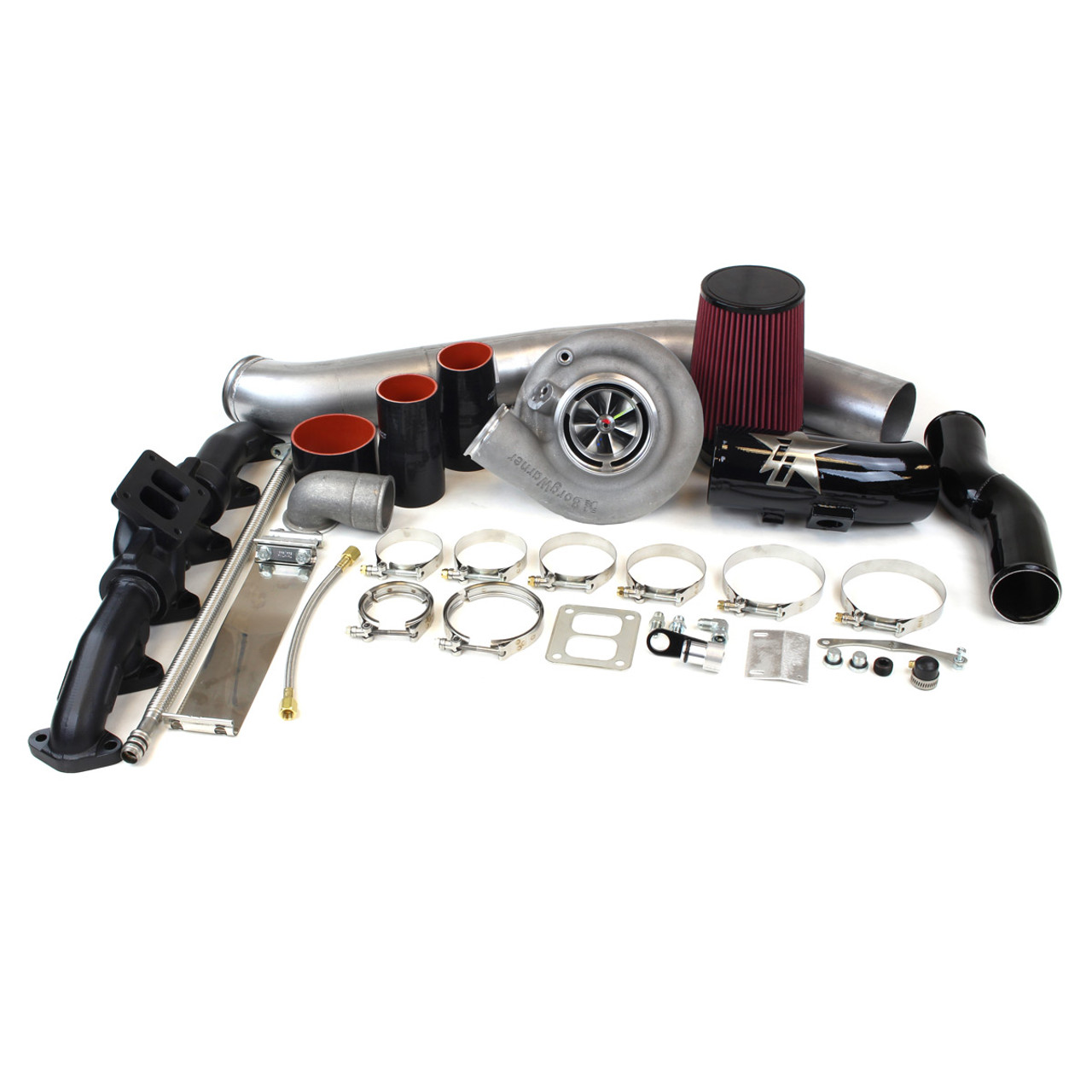

What’s Included
- BorgWarner S300 SX-E 62/74 turbocharger with .91 A/R turbine housing
- High-flow T4 2nd-gen-style exhaust manifold
- HX40 downpipe and v-band connection
- Cold-air intake, hot-side intercooler pipe, oil feed/return lines
- Clamps, couplers, and install hardware
Key Benefits
- Lower EGTs and improved backpressure vs. stock VGT
- Stronger thrust system & FMW compressor (SX-E) for durability
- Complete, bolt-on kit with centered turbo placement (better serviceability)
- Great street manners with room to grow fuel & air
Recommended Parts (CPP internal links only)
- ARP 247-4202 Head Stud Kit (5.9/6.7 Cummins) — clamps the head for added boost.
- Cummins 3905216 HX40 V-Band Clamp — fresh clamp for the HX40 outlet.
- AutoMeter 0–60 PSI Boost Gauge — monitor boost safely.
- 07.5–12 Air Intakes & Filters — filters, pre-filters, and intake pieces for swaps.
- 2nd-Gen Swap & Components (07.5–12) — boots, pipes, and hardware support.
Cross-Reference / Alternatives
- Industrial Injection 22A425 — 62/74 with 1.00 A/R (07.5–09) — more turbine flow for higher HP goals.
- Industrial Injection 22B426 — 62/74 .91 A/R (2010–2012) — for the next-gen trucks.
- More S300 SX-E Turbo Options (07.5–12)
Helpful Notes
- This is a competition-use system. Verify local and federal compliance before installation.
- Plan on ECU calibration and adequate fuel supply for best results.
- Always verify wastegate/drive pressure and target boost with proper gauges.
FAQ
How much power will a 62/74 .91 A/R support?In typical 6.7L builds with fuel and tuning, the 62/74 SX-E .91 A/R is commonly used in the ~550–600 HP range with excellent drivability.
What’s the advantage of the 2nd-gen-style (center mount) layout?Center mounting improves service access and manifold flow distribution, lowers drive pressure, and simplifies the system compared to the factory VGT layout.
Do I need head studs?They’re strongly recommended once you raise boost or tow heavy, to maintain head-gasket integrity.
Is an HX40 downpipe included?Yes, this kit uses an HX40-style outlet and includes the downpipe; we also recommend a fresh HX40 v-band clamp for a perfect seal.
