Product Description
Go big-air on your 03–07 Cummins. The INDUSTRIAL INJECTION S475 2nd-Gen Swap Kit (1.10 A/R) moves serious mass flow while keeping drive pressure in check. It’s a complete install kit with a v-band race cover and a custom S&B-designed intake for a clean, proven setup. Injector upgrades are required for proper spool and peak power.
Fitment
- 2003–2007 Dodge Ram 2500/3500 5.9L Cummins (common-rail)
- 2nd-Gen style T4 swap for 3rd-Gen trucks

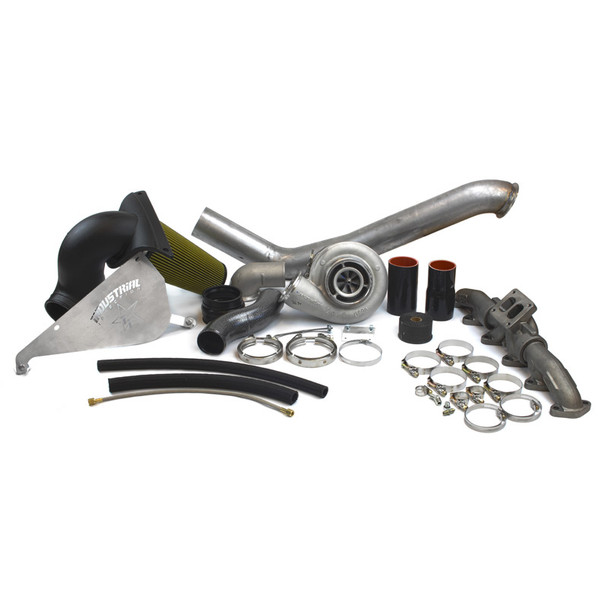

What’s Included
- S475 turbocharger with 1.10 A/R T4 turbine housing & v-band race cover
- Custom S&B intake for the kit
- Complete install hardware/piping as provided by Industrial Injection
Specs
- 75mm compressor wheel
- 83/74mm turbine wheel
- Rated near 100 lb/min airflow
Recommended Parts (CPP Internal Links)
- 03–07 5.9L Cummins Injectors (required for this kit)
- ARP 247-4204 Head Stud Kit (5.9/6.7L)
- Industrial Injection AC-0001 A/C Reroute Line (03–07)
- CPP -10AN Turbo Oil Drain Kit
- Tuners / Chips / Monitors (03–07)
Cross-Reference / Alternatives
- S475 — .90 A/R (227426) — quicker spool, lower peak flow
- S471 — 1.10 A/R (227425) — balanced street/strip option
- Browse all 2nd-Gen Swap Kits (03–07)
Helpful Notes
- This is a competition-use kit; verify local compliance.
Match fueling, lift-pump/CP3 health, and tuning to keep EGT in check.
FAQ
How does 1.10 A/R drive compared to .90 or 1.0?1.10 A/R favors top-end flow and lower drive pressure at high RPM. The .90 A/R spools faster but can build more drive pressure; 1.0 is the middle ground.
Do I need bigger injectors?Yes—this kit requires injector upgrades for proper spool and power. See our 03–07 injector options linked above.
Is tuning required?Custom or performance tuning is strongly recommended to optimize boost, fueling, and EGT with a large S400-frame turbo.
What else should I upgrade?Head studs, a healthy lift pump/CP3, quality boost/EGT monitoring, and correct oil feed/drain routing improve reliability with big singles.
