Product Description

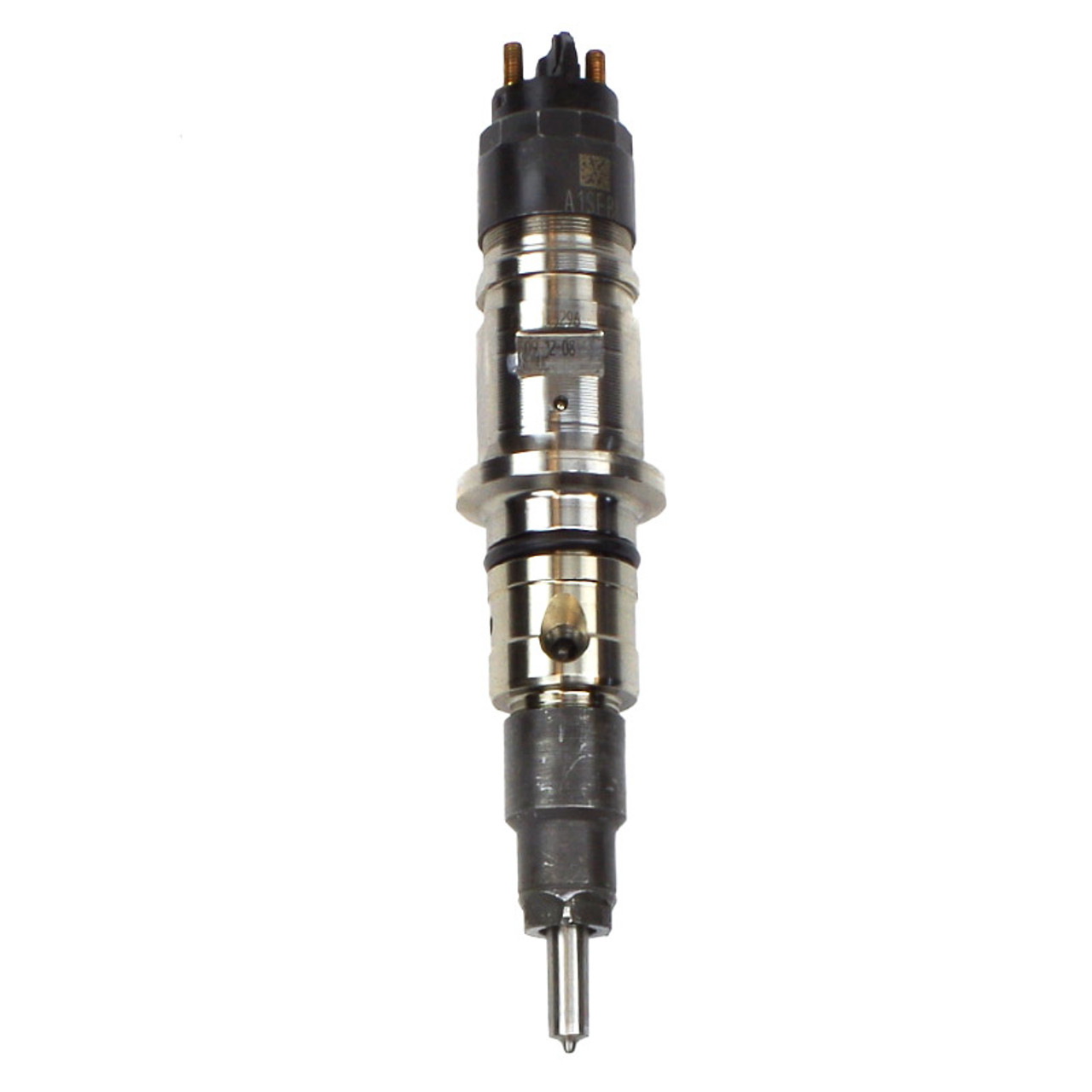

Industrial Injection 0986435519SE-R2 Reman 125HP Injector - 2007.5-2010 Ram 6.7L Cummins Cab & Chassis
Upgrade your mid-range 6.7L Cummins cab & chassis (Ram 3500/4500/5500, 2007.5-2010) with Industrial Injection's R2 extrude-honed, EDM-balanced reman injector. This 125 HP (~41% over) unit is flow-matched and calibrated for smooth idle and reliable power when paired with proper fuel supply and high-pressure pump support.
Fitment
- 2007.5-2010 Ram 3500/4500/5500 Cab & Chassis (6.7L Cummins, non-SCR/DEF)
- Direct-fit common-rail injector for cab & chassis fuel system configuration
What's Included
- (1) Remanufactured injector, pre-calibrated and balanced
- Seal kit: copper crush washer & O-rings
Recommended Supporting Parts (Internal Links)
- Industrial Injection Dual CP3 Kit (adds Dragon Fire 10mm CP3) - maintains rail pressure with +% over injectors
- CP3 Injection Pumps (Stock & 10-14mm)
- Injector Connector/Feed Tubes (set) - always replace with new when installing injectors
- 07.5-12 6.7L Fuel System Components
- Mopar Severe-Duty Fuel Filtration Kit - protect injectors from contamination
Notes
- Use new connector (feed) tubes when installing injectors to ensure proper sealing and injector life.
- High-flow injectors require adequate lift-pump supply and a stroker/dual CP3 to maintain commanded rail pressure under load.
FAQ
Is this injector for cab & chassis trucks only?Yes-this R2 125HP unit is calibrated for 2007.5-2010 cab & chassis (3500/4500/5500) fuel system configuration. Pickup calibrations and hardware can differ.
Do I need a bigger CP3 with R2 injectors?
Strongly recommended. A 10mm stroker CP3 (or dual CP3) helps hold rail pressure with 41%-over nozzles, especially under towing or competition loads.
Should I replace connector tubes?
Yes-replace connector/feed tubes whenever injectors are changed to prevent sealing issues and return-to-rail leakage.
What causes premature injector failure?
Contaminated fuel, inadequate filtration, and insufficient supply or rail pressure. Use severe-duty filtration and ensure lift-pump/CP3 health.
Is this emissions compliant on public roads?
R2 performance injectors may be for competition-use only where emissions laws apply. Verify local, state, and federal regulations before purchase or use.
| Specifications for INDUSTRIAL INJECTION 0986435519SE-R2 | |
|---|---|
| Brand | Industrial Injection |
| Part Number | 0986435519SE-R2 |
| GTIN | 00840256902471 |
| UPC | 840256902471 |
| Engine Compatibility | 2007.5–2010 Ram 3500/4500/5500 Cab & Chassis, 6.7L Cummins (24-Valve CR) |
| Configuration | Reman Performance Injector, R2 (~41% over, ~125 HP), ~38 LPM |
| Country of Origin | USA |
| Core Charge | $150.00 (per injector; refundable per program terms) |
| Shipping Weight | Not specified |
| Package Dimensions | Not specified |
| Shipping Method | Ground (Standard) |
| Prop 65 Warning | This product can expose you to chemicals including lead and chromium, which are known to the State of California to cause cancer and birth defects or other reproductive harm. Learn more. |
