Product Description
ICON's 3.0 Series Rear Shocks with CDXS for 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20 Percent and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5 Inch over stock on Tundra or 4 Inch over stock on Sequoia.
Features and Benefits:
- 3.0 Series shocks boast 50 Percent more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use.

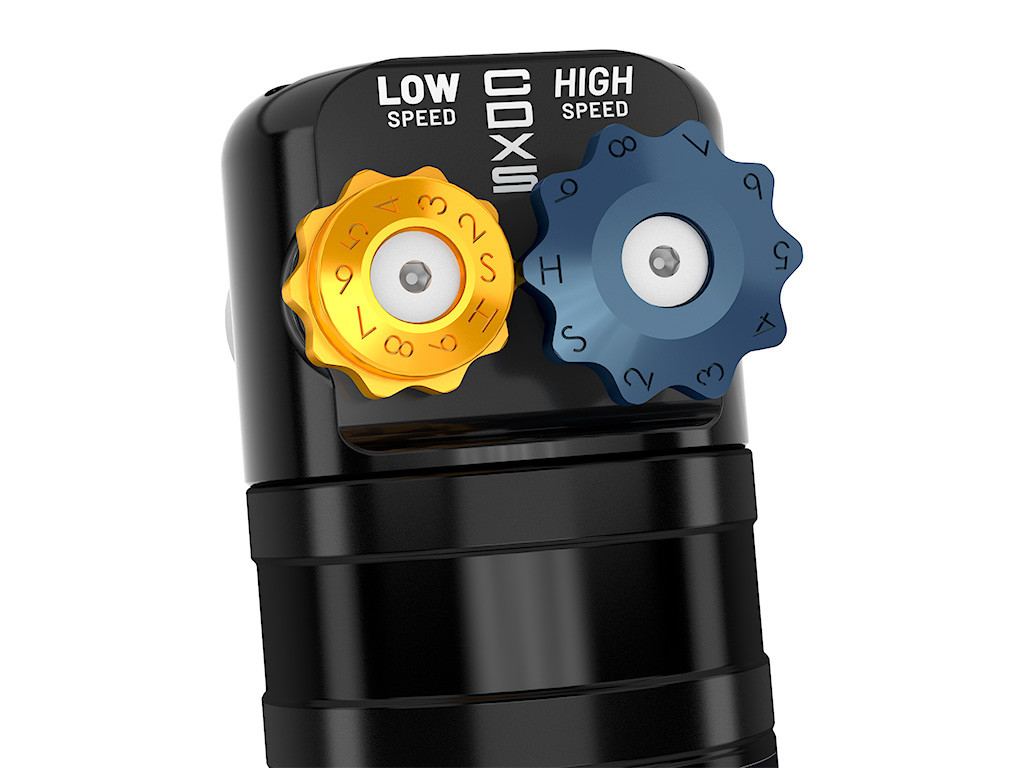

- Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 3.0 Series Coilovers with CDXS on the front, vehicle control can be precisely dialed in front to rear, resulting in the best overall driving experience.
- These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5 Inch over stock on Tundra or 0-4 Inch over stock on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
- 20 Percent increase in rear suspension travel compared to stock
- Compatible with up to 1.5 Inch of rear lift on most Tundra models or 3 Inch of lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0 Inch Body diameter for increased oil volume and larger piston area
- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 7/8 Inch diameter induction hardened, chrome plated shock shafts
- Corrosion resistant CAD plated steel shock bodies
- Fully Rebuildable and Re-tunable
Details
- Active Or Passive Suspension: Passive
- Adjustable: Yes
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Boot Included: No
- Bore Diameter: 2.75
- Cylinder Color: Grey
- Cylinder Diameter: 3.0
- Cylinder Material: Steel
- Damping Adjustment Type: Dual Speed/Manual
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: No
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Reservoir Type: Remote
- Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil
- Shaft Diameter: 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder Of Stem
- Shock Absorber Rod End Measuring Point: Center Of Eyelet
- Tube Outside Diameter: 3.0
- Upper Mount Type: Stem
- Valving Type: Linear/Digressive
- Add On Part: 252012 - -4 To -10 Hose Shield Kit
