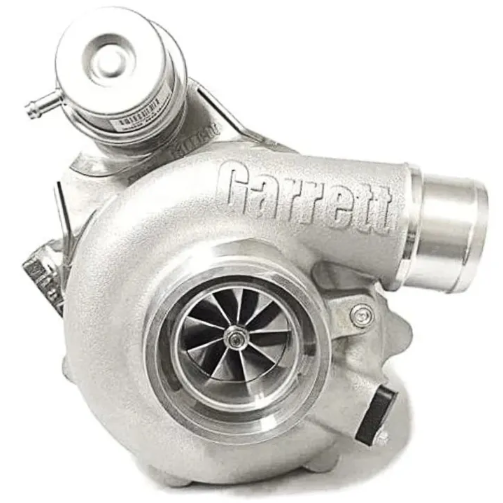

GARRETT 877895-5003S G25-550 TURBOCHARGER O/V V-BAND / V-BAND 0.72 A/R INTERNAL WG
- SKU:
- GTT877895-5003S
- MPN:
- 877895-5003S
- Shipping:
- Calculated at Checkout
Description
Garrett G25-550 Turbocharger O/V V-Band / V-Band 0.72 A/R Internal WG
Garrett G-Series Turbochargers Feature The Latest Innovations In Turbocharger Technology. Our Highest Flowing, Highest Efficiency Compressor And Turbine Aerodynamics To Date. Countless Engineering Hours Have Been Spent To Create The Perfect Blend Of Efficiency And Performance In A Compact Package.
Key Features
- G-Series Compressor Aerodynamics For Maximum HP
- New Turbine Aero Provides Higher Flow And Efficiency
- 48MM Compressor Wheel Inducer
- 49MM Turbine Wheel Exducer
- 80% Maximum Compressor Efficiency
- 76% Maximum Turbine Efficiency
- Mar-M Alloy Turbine Wheel Rated Up To 1050° C
- 0.92 A/R With V-Band Turbine Housing Inlet Flange
- Assembled And Calibrated With 0.5 Bar Actuator
- High Efficiency Ceramic Ball Bearing Cartridge
- Standard Rotation
- Oil Restrictor And Water Fittings Included
- Fully Machined Speed Sensor And Pressure Ports
Maximum Allowable Turbocharger Speed185KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.
Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.
Product Specifications
- 300
- 550
- 1.4
- 3.0
- 60
- Forged Fully Machined
- 0.70
- 54
- 49
- 84
- Mar-M
- G-Series
- 25
- Standard
- Oil & Water Cooled
- Internal
- Ceramic Dual Ball Bearing
The GARRETT 877895-5003S G25-550 Turbocharger is engineered to elevate performance for enthusiasts and professionals alike. With a compact design and a robust construction, this turbocharger features an O/V V-Band configuration that ensures easy installation and a secure connection. Its internal wastegate offers optimal boost control, preventing excess pressure while maintaining efficiency under varying engine loads.
With a 0.72 A/R ratio, the G25-550 turbocharger strikes a perfect balance between power and responsiveness. This aspect allows for faster spool-up times, translating to improved throttle response and overall vehicle performance. The advanced engineering of the Garrett G25-550 facilitates maximum airflow and lower turbo lag, ensuring drivers experience the full potential of their engine.
Designed for a wide range of applications, from street performance builds to motorsport racing setups, this turbocharger effectively supports high horsepower goals while maintaining reliability. Its durable construction stands up to extreme temperatures and pressures, making it suitable for high-boost applications without compromising performance.
The G25-550 is not just powerful; it is also versatile. Its V-band inlet and outlet connections provide flexibility in installation, accommodating various exhaust layouts and configurations. This user-friendly design coupled with excellent performance characteristics makes the G25-550 a top choice for automotive enthusiasts looking to enhance their vehicle's capabilities.
Whether you are upgrading your existing turbo system or building a new performance engine, the GARRETT 877895-5003S G25-550 Turbocharger is an essential component that delivers outstanding power and efficiency. Experience the next level of performance with this high-quality turbocharger, designed to push the limits and unleash your vehicle's full potential.
