FLEECE FPE-PF-FMC-1116-LB POWERFLO LIFT PUMP AND UPGRADE KIT FOR 11-16 FORD POWERSTROKE (LONG BED)

The PowerFlo lift pump is the latest drop-in lift pump from the diesel experts at Fleece Performance! Needing to replace your factory pump or looking to upgrade? This kit includes both the PowerFlo lift pump to replace your in-tank factory sending unit and a new frame mounted filter base with Donaldson filter to replace the factory pump and filter assembly.

Our plug-and-play kit requires NO cutting, splicing, or modification of the factory fuel lines or fuel tank and the new filter base mounts in the OE filter housing location. Combine this kit with our replacement under hood filter base (FPE-FMC-UHFA-1123) and optional fuel heater (FPE-FH-FMC) for the ultimate fuel delivery setup on your 6.7 Powerstroke!

Features:

• Direct In-Tank Replacement:The PowerFlo lift pump retains the factory fuel lines, water-in-fuel sensor, and installs in less than half the time of other high flow lift pumps.
• Ultra-Quiet - Dual Gerotor: Two is always better than one, and the PowerFlo delivers with two industry proven ultra-quiet gerotor pumps, providing increased flow capacity and the ability to support up to 800 HP!
• Seamless Integration:The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the 1/4 tank issues typically encountered when seeking a higher flow lift pump to meet your engine's need. This kit requires no cutting, splicing, or modification of the existing fuel lines, harness, or fuel tank and retains all factory diagnostic functionality.
• Aftermarket Capable: Want the benefits of the in-tank pump but need to run your own fuel lines? The pump outlet and return are threaded to accept a -8 O-ring fitting (3/4 Inch-16 thread). This product has also been tested and verified with 2011-2016 trucks equipped with and S and S Diesel Motorsort DCR conversion kit and the S and S Diesel Motorsport CP4 Disaster Prevention Kit.

Kit includes:

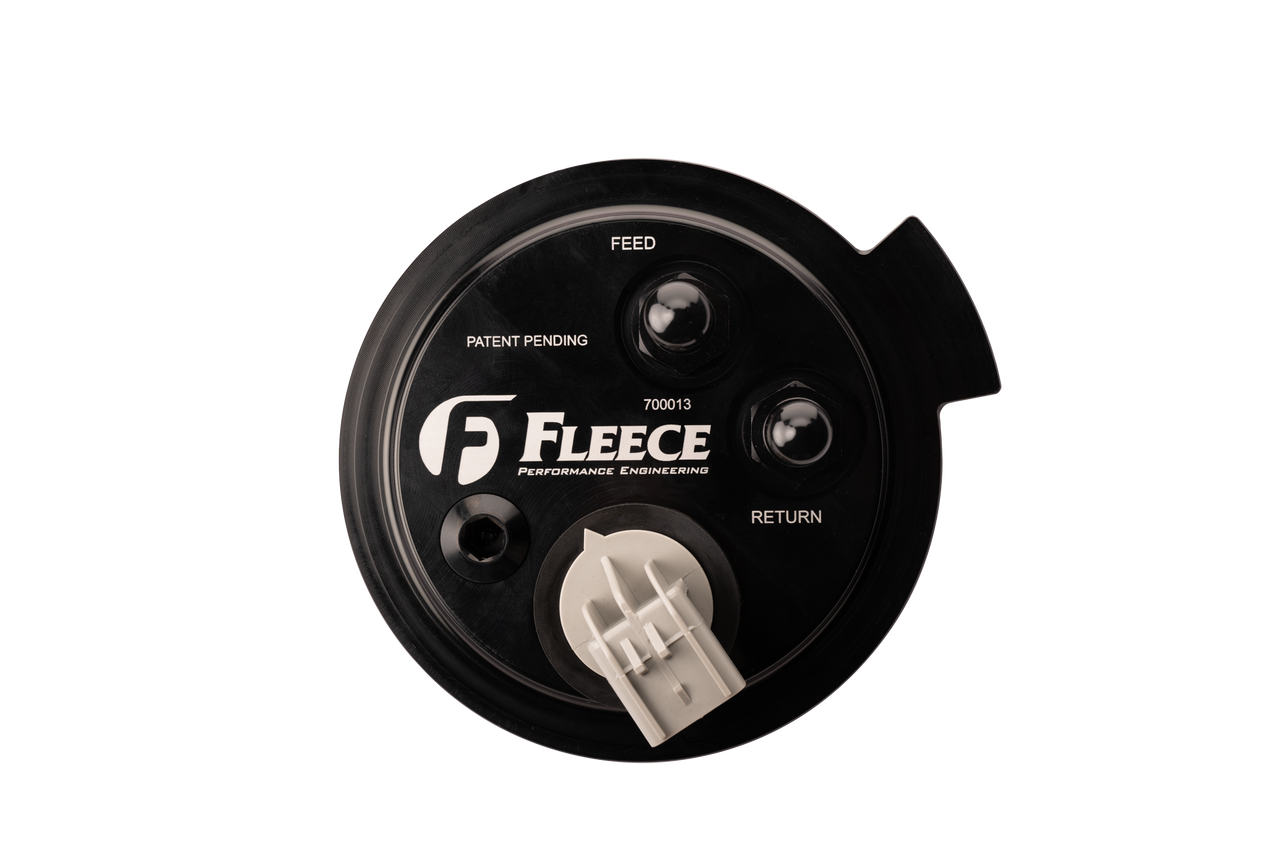

• PowerFlo Lift Pump with integral fuel level sender

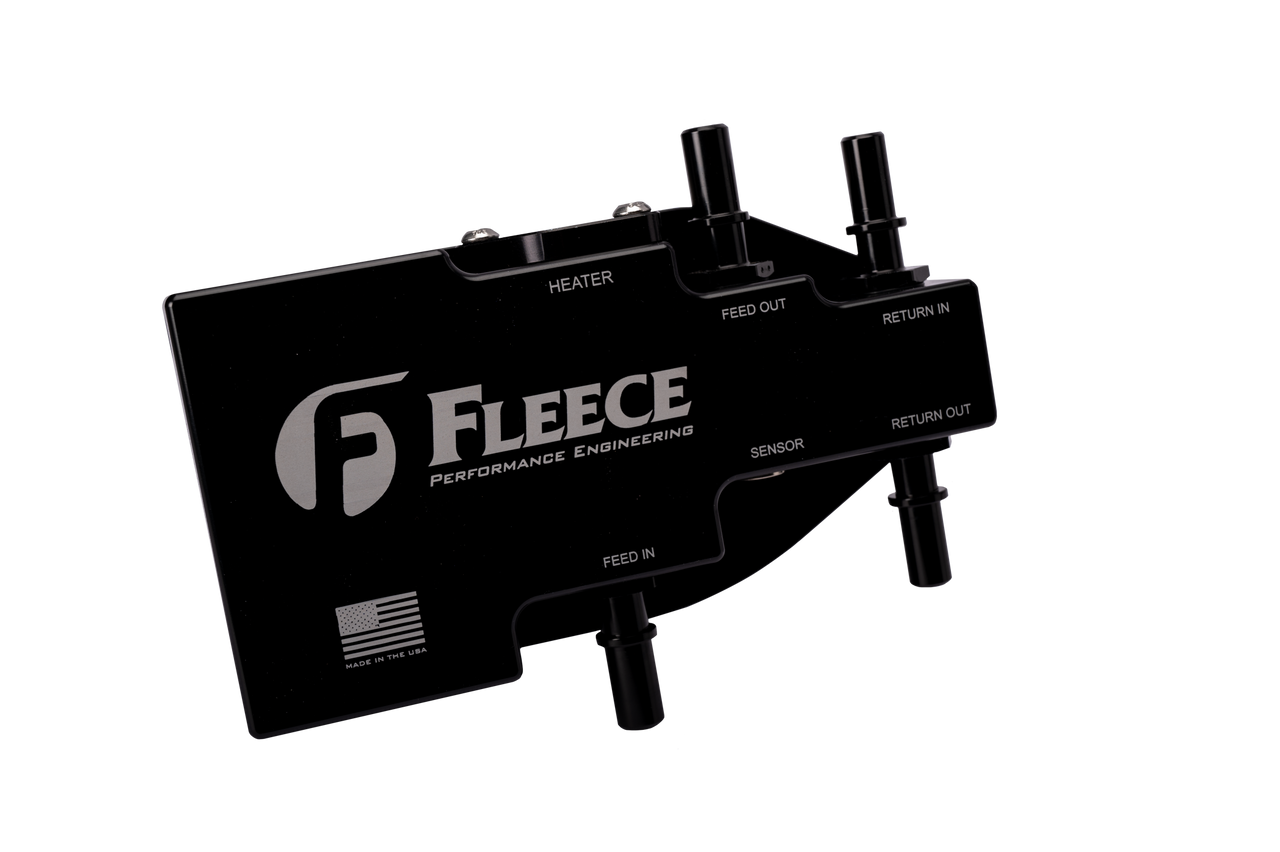

• Filter base with Donaldson (P/N P553203) and provision for optional fuel heater (4 micron rating at 99 percent efficiency)
• Water-in-fuel sensor
• Chassis wiring harness and WIF sensor extension harness
• Fuel sending unit tank O-ring
• Mounting hardware

Cross-Reference:

• Year: 2011-2016 FPE Part Number: FPE-FMC-1116-SB Replaces FORD OE Part Number: BC3Z-9A299-A
• Year: 2011-2016 FPE Part Number: FPE-FMC-1116-LB Replaces FORD OE Part Number: BC3Z-9A299-G

Application Notes:

• Operating pressure of: 65-70 psi at idle
• This product has been tested and verified to work with 2011-2016 trucks equipped with an S and S Diesel Motorsport DCR conversion kit and the S and S Diesel Motorsport CP4 Disaster Prevention Kit.
• This product has been confirmed to fit Titan and S and B aftermarket fuel tanks.

The Fleece FPE-PF-FMC-1116-LB PowerFlo Lift Pump and Upgrade Kit is engineered to elevate the performance of your 2011-2016 Ford Powerstroke long bed. Designed by diesel specialists at Fleece Performance, this innovative drop-in lift pump is perfect for those looking to enhance fuel delivery or replace their factory unit with ease.

This comprehensive kit features the highly efficient PowerFlo lift pump, specifically designed to seamlessly replace your in-tank factory sending unit. Accompanying it is a robust frame-mounted filter base equipped with a high-performance Donaldson filter, which effectively replaces your factory pump and filter assembly. The result is an optimized fuel flow that supports up to 800 HP while maintaining a quiet operation, thanks to the ultra-quiet dual gerotor design.

Installation is hassle-free with this plug-and-play kit that requires no cutting, splicing, or modifications to your existing fuel lines or tank. The new filter base conveniently mounts in the original equipment filter housing location, ensuring a perfect fit without compromising factory diagnostic functionality. For an even more advanced setup, it can be paired with Fleece's underhood filter base and optional fuel heater.

Not only is the PowerFlo designed for seamless integration, but it's also aftermarket capable, featuring threaded pump outlets for customized fuel line setups. This lift pump is rigorously tested, confirming compatibility with popular conversion kits and aftermarket fuel tanks.

Included in the kit are the PowerFlo lift pump with integral fuel level sender, Donaldson filter, water-in-fuel sensor, and all necessary wiring and mounting hardware. With the Fleece PowerFlo Lift Pump and Upgrade Kit, experience enhanced performance, reliability, and serviceability for your Ford Powerstroke like never before.
