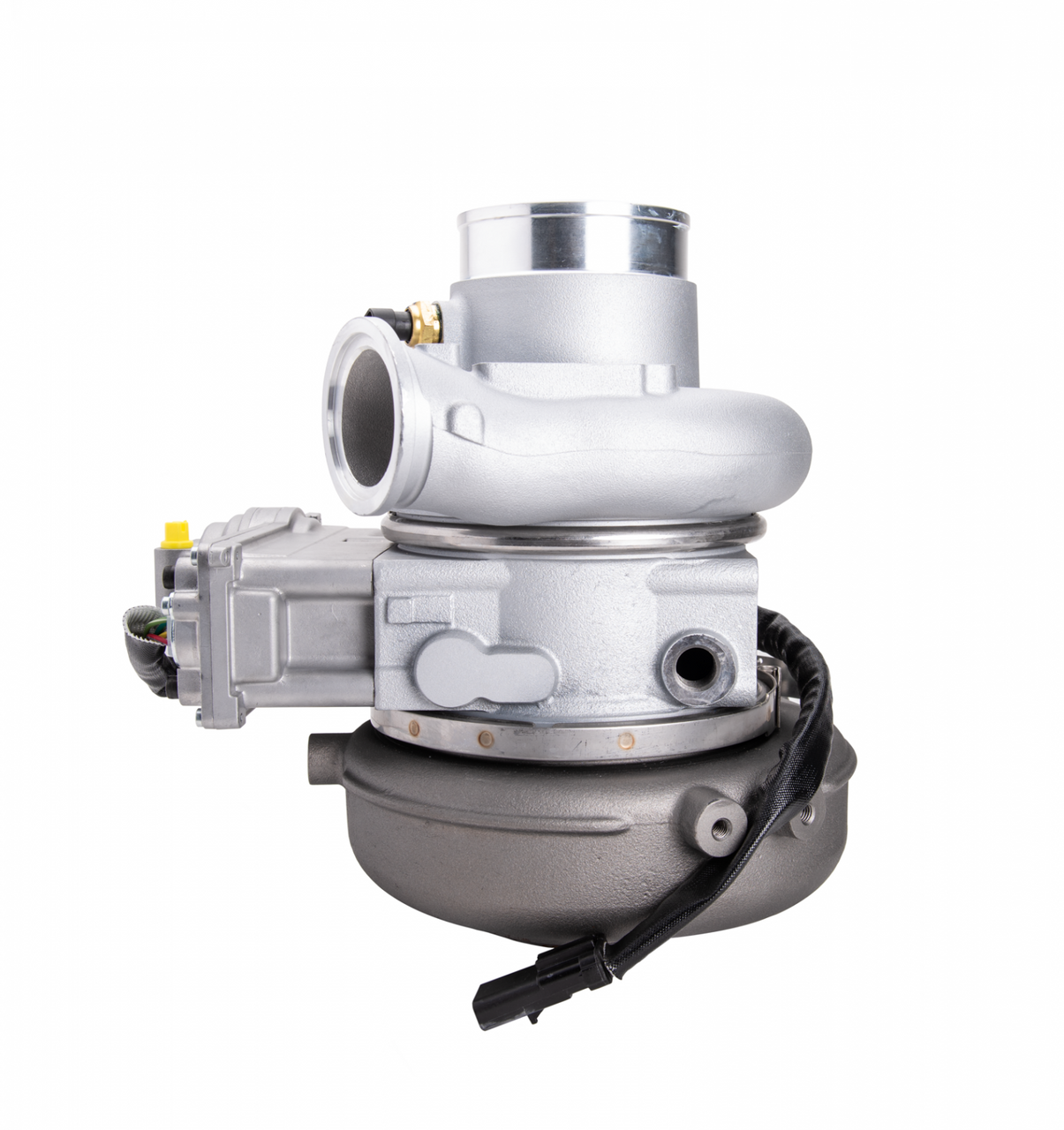

FLEECE FPE-HE4-64 HE400VG/HE451VE TURBOCHARGER FOR CUMMINS ISX - 64MM

From the turbo experts at Fleece Performance comes our all new HE400VG/HE451VE replacement turbocharger - providing you with a new, reliable replacement turbocharger to get you back on the road. Fleece Performance Engineering turbochargers set the industry standard for quality and reliability - our turbocharger is a direct replacement for Cummins ISX CM2250 and CM2350 models.
Features:

• No core charge
• New Holset actuator
• New air intake temperature sensor
• New turbine speed sensor
• New turbine flange gasket
• New mounting studs and nuts

Specifications:

• Coolant ports: M18x1.5
• Oil feed port: M14x1.5
• Compressor intake OD: 4.0 inch
• Compressor outlet OD: 2.9 inch

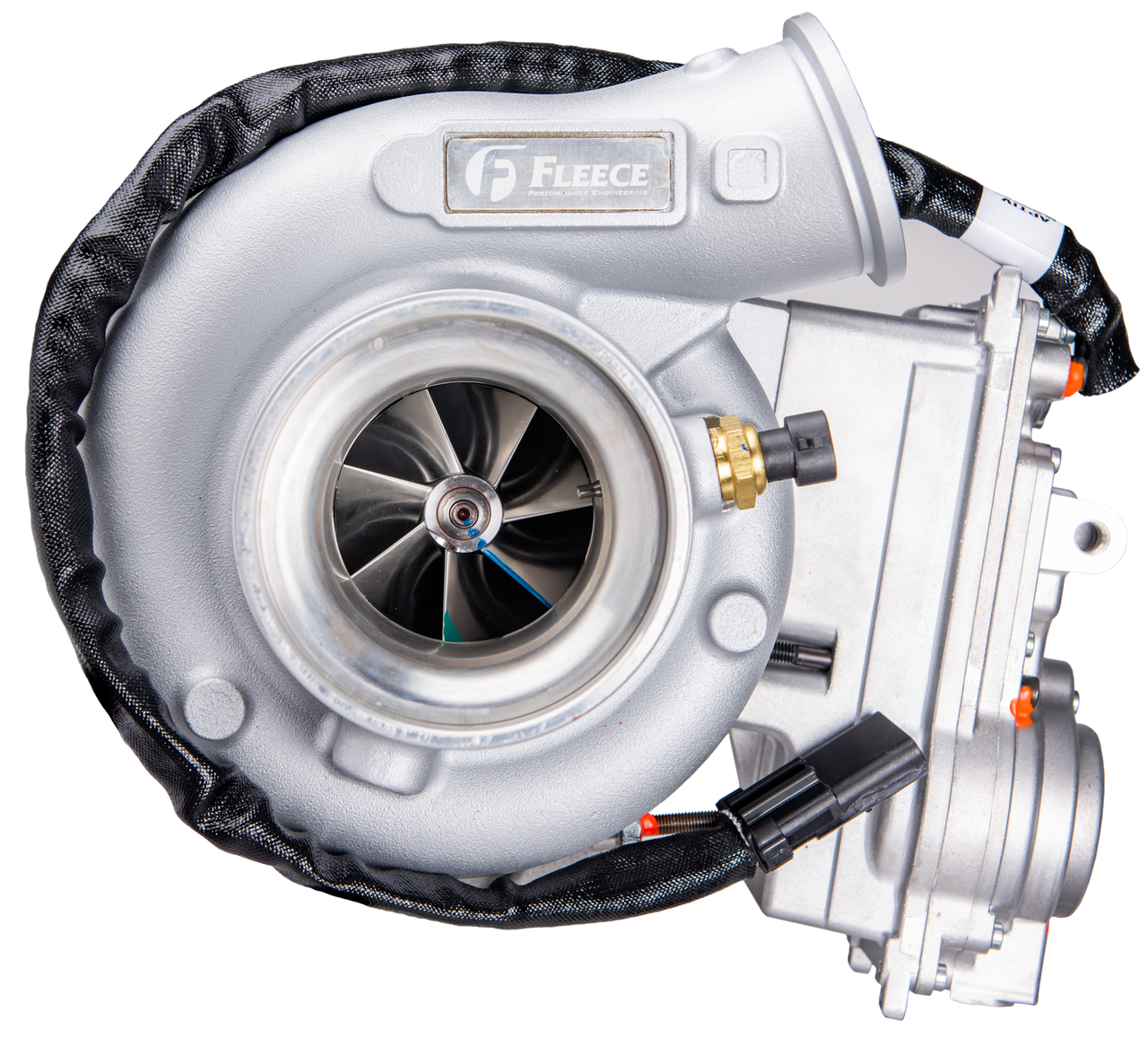

Compressor wheel:

• Blade count: 7x7
• Inducer: 64mm
• Exducer: 92mm

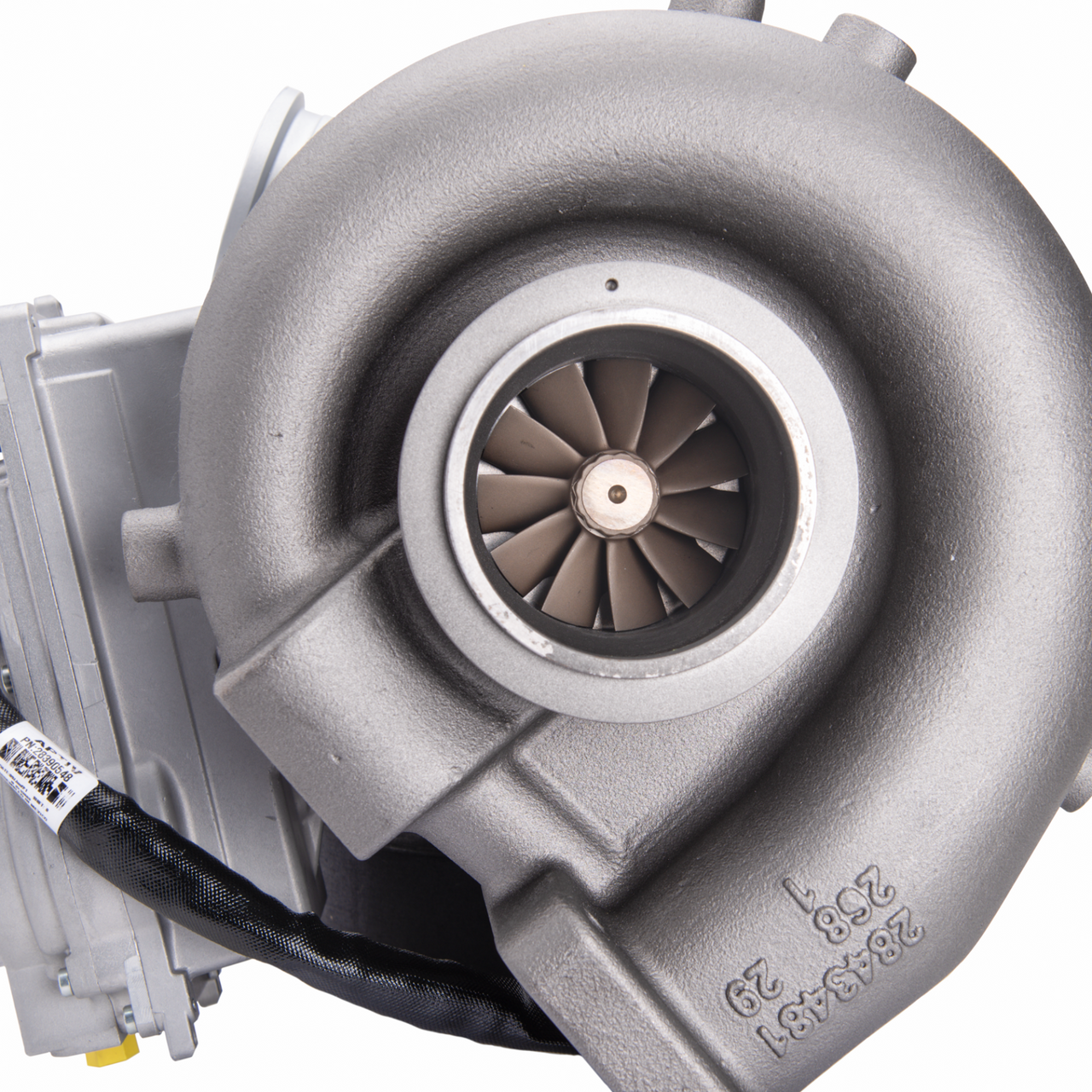

Turbine wheel:

• Blade count: 11
• Inducer: 72mm
• Exducer: 67mm
• Shipping weight: 65 lbs

Fitment:

• Fits Cummins ISX15 CM2250 and CM2350
• Replaces Holset part number: 2882111

The Fleece FPE-HE4-64 HE400VG/HE451VE Turbocharger is engineered for optimal performance and reliability within the Cummins ISX platform. Crafted by Fleece Performance, a leader in turbocharger manufacturing, this replacement unit is specifically designed to suit Cummins ISX CM2250 and CM2350 models. Built with durability in mind, it eliminates the hassle of core charges, allowing for a straightforward installation process, getting you back on the road faster.

Key enhancements include a new Holset actuator, ensuring responsive power delivery, and both a new air intake temperature sensor and turbine speed sensor that facilitate accurate readings for enhanced performance tuning. Additionally, it comes equipped with a new turbine flange gasket and all necessary mounting studs and nuts, providing everything required for a seamless fit.

With impressive specifications, this turbocharger boasts coolant ports of M18x1.5 and an oil feed port of M14x1.5, contributing to an effective cooling and lubrication system. The compressor wheel features a robust 7x7 blade configuration with a 64mm inducer and a 92mm exducer, delivering optimal air flow for improved engine efficiency. Equally, the turbine wheel, with its 11-blade design, features a 72mm inducer and a 67mm exducer, allowing for efficient exhaust flow and increasing overall performance.

Shipping at a convenient weight of 65 lbs, the Fleece FPE-HE4-64 Turbocharger is not only a smart replacement but also built to set a new standard in turbocharger technology. Upgrade your Cummins ISX with this high-quality turbocharger and experience unmatched power and reliability designed for the toughest demands.
