FLEECE FPE-CUMM-HFFBA-0318 AUXILIARY HEATED FUEL FILTER KIT FOR 03-18 DODGE RAM CUMMINS

Introducing our all-new full featured auxiliary fuel filter kit for the 2003-2018 Dodge Cummins. This kit builds off our standard auxiliary kit with the addition of an integral high-flow fuel heating element and Water-In-Fuel (WIF) sensor.

The kit includes everything you need to properly route, plumb and filter fuel for your Cummins engine from a Fleece Performance lift pump to the injection pump. Our kit improves accessibility to the fuel filter as well as reduces your ongoing maintenance cost with a lower cost Donaldson filter.

Application notes:

• A Fleece Performance fuel filter delete is required for use with this product and must already be installed or purchased separately.
• This kit does not include a quick disconnect fitting to adapt to the OE lift pump.
• If you are running this kit with a stock OE sending unit on the fuel tank use P/N: FPE-QUCON-OE-38to allow for an AN connection to the stock quick disconnect style fitting.

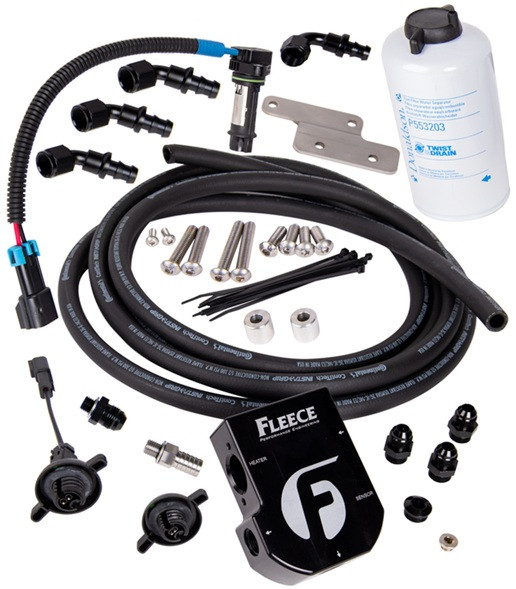

Kit includes:

• Fuel filter base with integral heater and mounting hardware
• Donaldson 3 micron fuel filter and water separator
• Push Lock hose and all necessary AN and barb fittings
• CP3 Feed fittings for 5.9L and 6.7L CP3 pumps
• Water-In-Fuel (WIF) sensor and adaptation harness

Fuel heater specifications:

• Temperature switching points: ON: 28.4F +/-5.4F,  OFF: 48.2F +/- 5.4F
• At typical fuel flow rates a temperature increase of between 4-8F will occur across the heating element.

Enhance the performance and reliability of your 2003-2018 Dodge Cummins with the FLEECE FPE-CUMM-HFFBA-0318 Auxiliary Heated Fuel Filter Kit. This advanced fuel filter kit is designed to deliver superior filtration, while simultaneously heating fuel, ensuring optimal engine operation in extreme weather conditions.

This auxiliary fuel filter kit is a complete solution, building on our standard offerings with unique features like an integral high-flow fuel heating element and a Water-In-Fuel (WIF) sensor. The kit not only improves the accessibility for fuel filter changes but also minimizes your maintenance costs through the use of a more affordable Donaldson filter.

• Includes a fuel filter base with an integral heater for efficient fuel warming
• Features Donaldson 3 micron fuel filter and water separator for superior filtration
• Comes with Push Lock hose and all necessary AN and barb fittings for easy installation
• Compatible CP3 feed fittings for both 5.9L and 6.7L CP3 pumps
• Equipped with a Water-In-Fuel (WIF) sensor and adaptation harness for added safety
• Temperature activation points: ON at 28.4F +/-5.4F, OFF at 48.2F +/- 5.4F

Upgrade your Cummins engine's fuel system with the FLEECE Auxiliary Heated Fuel Filter Kit, designed for enhanced performance, reliability, and ease of use. Don't settle for less – adapt this cutting-edge technology for improved engine health and efficiency today!
