FLEECE FPE-351-0407 2004.5-2007 CUMMINS 63MM FMW HOLSET CHEETAH TURBOCHARGER

Product Description

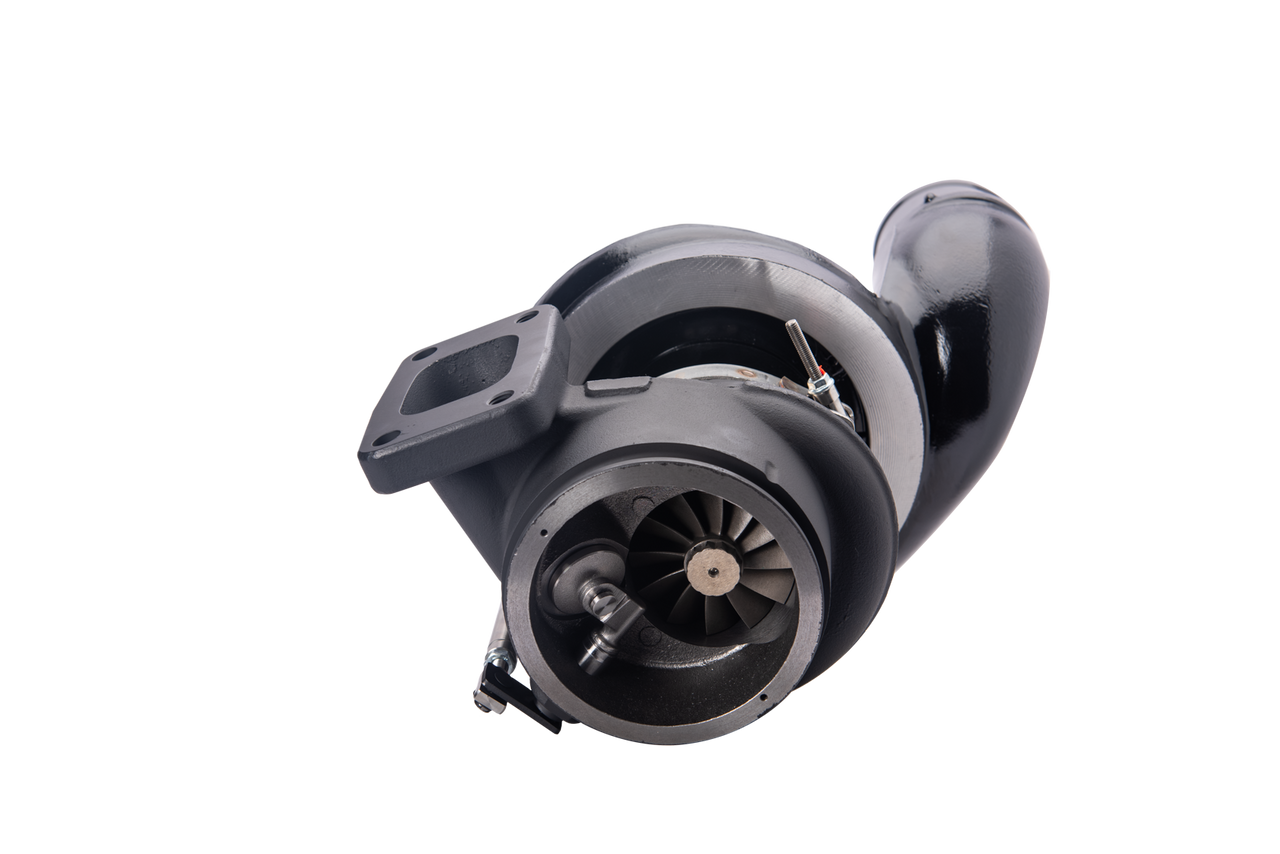

FLEECE FPE-351-0407 2004.5-2007 CUMMINS 63MM FMW HOLSET CHEETAH TURBOCHARGER

The FLEECE FPE-351-0407 63MM FMW HOLSET CHEETAH TURBOCHARGER is the go-to drop-in upgrade for 2004.5–2007 5.9L Cummins owners who want stock-like drivability with big power potential. Built on a brand-new Holset HE351-style turbocharger and upgraded with Fleece Performance’s exclusive 63mm FMW compressor wheel and high-flow turbine wheel, this Cheetah is capable of supporting up to 650 RWHP while keeping fast spool, strong midrange torque, and that unmistakable Cheetah whistle.

No bulky install kits, no custom fabrication—this is a direct bolt-on that uses your factory-style oil lines, intercooler connections, and exhaust components. Whether you daily drive, tow heavy, sled pull, or hit the drag strip, the FPE-351-0407 Cheetah delivers responsive power, lower EGTs when tuned correctly, and proven Fleece reliability.

Key Features & Benefits

• Brand-new Holset-based turbocharger (no reman core) with Fleece Performance upgrades.
• 63mm FMW (Forged Milled Wheel) compressor for excellent airflow and efficiency.
• High-flow turbine wheel and optimized housing for strong top-end power.
• Drop-in replacement for the factory HE351CW on 2004.5–2007 5.9L Cummins.
• Supports up to ~650 RWHP when paired with appropriate fueling and tuning.
• Stock-like spool-up for quick throttle response and great street manners.
• 2.5" Work Stock legal compressor inducer size (check your sanctioning body rules).
• Wastegate calibrated in the 40–45 PSI operating range for reliable performance.
• No core charge and free shipping from CPP Diesel (where applicable).

Fitment Details

• Engine: 5.9L Cummins common-rail (325 HP “HO” 3rd Gen)
• Model Years: 2004.5–2007 Dodge Ram 2500 & 3500
• OEM Turbo Replaced: Holset HE351CW (variable wastegate, fixed geometry)
• Configuration: Direct bolt-on to factory exhaust manifold, downpipe, intercooler plumbing, and oil lines.

This turbocharger is intended for late 2004.5–2007 common-rail 5.9L trucks that were originally equipped with the HE351CW turbocharger. Always verify your build date and factory turbo before ordering. If you are working with an earlier 2003–early 2004 HE341/HE351-equipped truck or an HX35 application, see other Fleece Cheetah options on CPP Diesel for the correct fitment.

Recommended Supporting Upgrades

• Healthy lift pump and CP3 fuel pump capable of supporting your target power.
• Upgraded injectors and custom tuning if you plan to push beyond mild tunes.
• Free-flowing 4" or 5" exhaust system and quality intercooler piping.
• EGT, boost, and trans temperature gauges or an electronic monitor.
• Upgraded clutch or transmission build when running aggressive power levels or heavy towing.

Cross-Reference / Related Fleece Items (CPP Diesel)

• FLEECE FPE-TURBO-INST-KIT-CUMM59 – Cummins S300/S400 Turbo Installation Kit 2003–2007
• FLEECE FPE-CRTFL-S3S4 – Turbocharger Oil Feed Line for S300/S400 in 2nd Gen Location
• FLEECE FPE-CTDA-10AN – Cummins Turbo Drain Tube Adapter (-10AN)
• FLEECE FPE-CTDT-KIT – Cummins Turbo Drain Tube Kit for 2nd Gen Swaps
• FLEECE FPE-HX35-63-FMW – 63mm FMW HX35 Cheetah Turbocharger (1994–2002 5.9L Cummins)

Specifications for FLEECE FPE-351-0407

Frequently Asked Questions

Will this FPE-351-0407 Cheetah turbo bolt directly in place of my stock turbo?

Yes. On 2004.5–2007 5.9L Cummins trucks originally equipped with the HE351CW turbo, the FPE-351-0407 is designed as a direct bolt-in replacement. It reuses the factory-style manifold, downpipe connection, intercooler piping, and oil feed/drain locations. Always confirm your truck’s original turbo and build date before ordering.

How much power can this turbo support on my 5.9L Cummins?

With proper fueling (injectors and CP3), tuning, and supporting mods, the 63mm FMW Cheetah is capable of supporting up to about 650 RWHP while maintaining strong drivability. For tow-oriented builds, a more conservative tune will keep EGTs in check and improve longevity.

Do I need custom tuning when installing the FPE-351-0407?

The turbo will physically bolt on and operate on a stock truck, but custom or revised tuning is strongly recommended to fully optimize spool, EGTs, and overall power. If you already run a tuner, consult your tuner or calibrator for a file tailored to a 63mm Cheetah on a 5.9L common-rail.

Is this turbo good for daily driving and towing, or just racing?

This Cheetah is built to be a true all-around performer. It offers stock-like spool for street manners and towing, yet has enough airflow for aggressive fueling and weekend competition use. When properly matched to your setup and tuning, it works great as a daily driver and tow rig turbo while still being capable of serious power.

What other Fleece parts pair well with this turbo on my 2004.5–2007 truck?

For a clean and reliable setup, many customers add Fleece turbo oil feed and drain components and S300/S400 install hardware for future upgrades. Popular options include the FPE-TURBO-INST-KIT-CUMM59, FPE-CRTFL-S3S4 oil feed line, FPE-CTDA-10AN drain adapter, and FPE-CTDT-KIT drain tube kit, all of which are available from CPP Diesel.
