Product Description

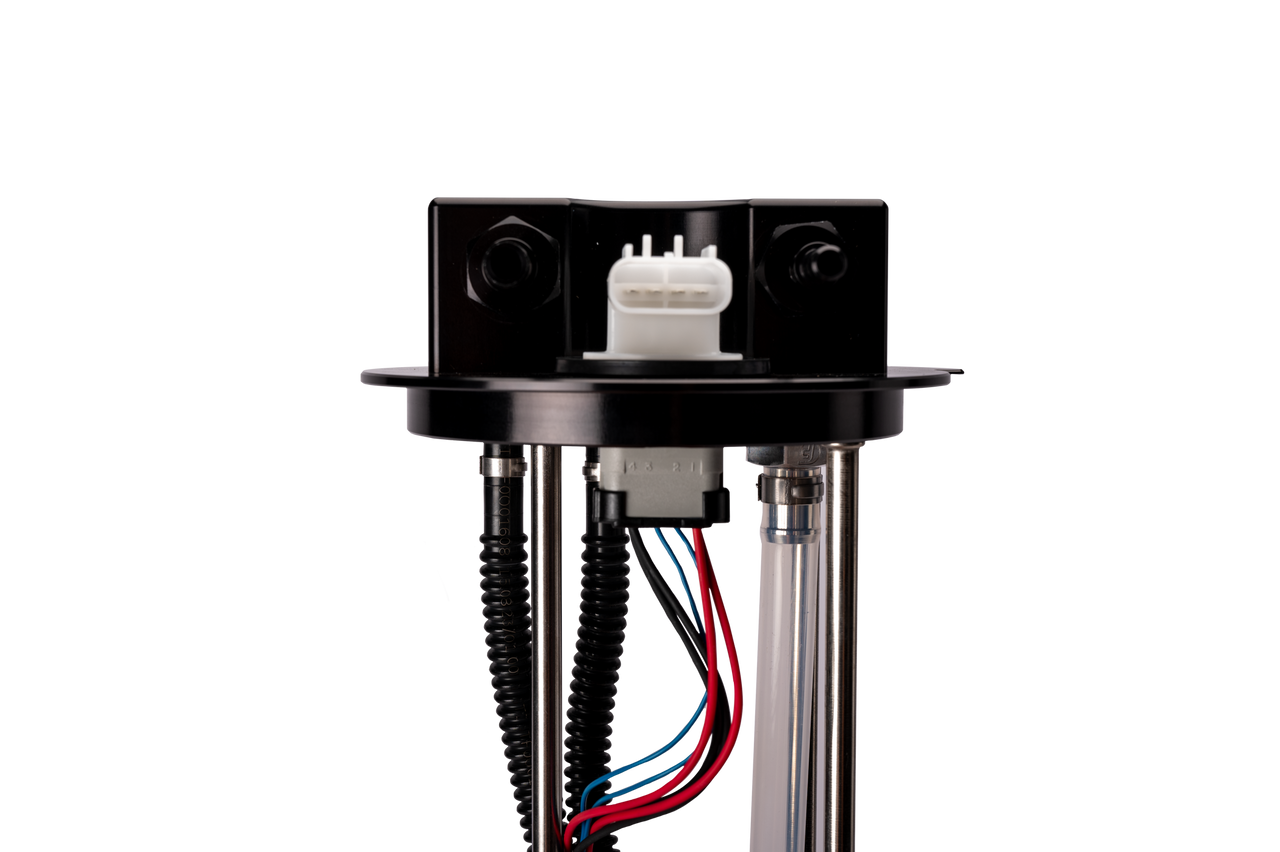

Upgrade the heart of your 6.7L Cummins fuel system with the FLEECE FPE-34562 11-24 DODGE 2500/3500 CUMMINS POWERFLO IN-TANK LIFT PUMP ASSEMBLY. This direct OEM in-tank replacement solves noisy frame-mounted lift pump issues, quarter-tank fuel starvation, and flow limitations – all while supporting 800+ RWHP with quiet, factory-style operation.
The PowerFlo is the only in-tank lift pump of its kind for late-model Ram Cummins. With dual OEM-quality gerotor pumps flowing 170 GPH @ 15 PSI, integrated bucket design, and full use of the factory wiring, fuel lines, fuel heater, and water-in-fuel sensor, it’s the cleanest way to feed stock trucks, big-tune tow rigs, and even dual-CP3 setups.
Key Benefits
- Direct OEM in-tank replacement – no cutting the tank, no noisy external pump.
- 170 GPH @ 15 PSI dual gerotor design supports 800+ RWHP, including dual CP3 builds.
- Retains factory water-in-fuel sensor, fuel heater, and fuel lines for seamless integration.
- Active fill bucket technology eliminates sumps, draw straws, and “¼ tank” starvation.
- In-tank mounting means whisper-quiet operation compared to frame-mounted pumps.
- Threads for -8 ORB (3/4"-16) allow easy tie-in to aftermarket filters and fuel plumbing.
Fitment – 2011–2024 Ram 6.7L Cummins
The FPE-34562 PowerFlo lift pump is built specifically for late-model Ram 6.7L trucks:
- Engine: 6.7L Cummins Turbo Diesel
- Vehicles: 2011–2024 Ram 2500 & Ram 3500 (pickup, 6.7L Cummins)
- Fuel System: In-tank lift pump, replaces factory sending unit and pump module
- Horsepower Support: 800+ RWHP with proper high-pressure fuel system and tuning
Not compatible with:
- Ram Cab & Chassis trucks (different tank/sender configuration)
- Model year 2020+ trucks equipped with the factory 50-gallon fuel tank option

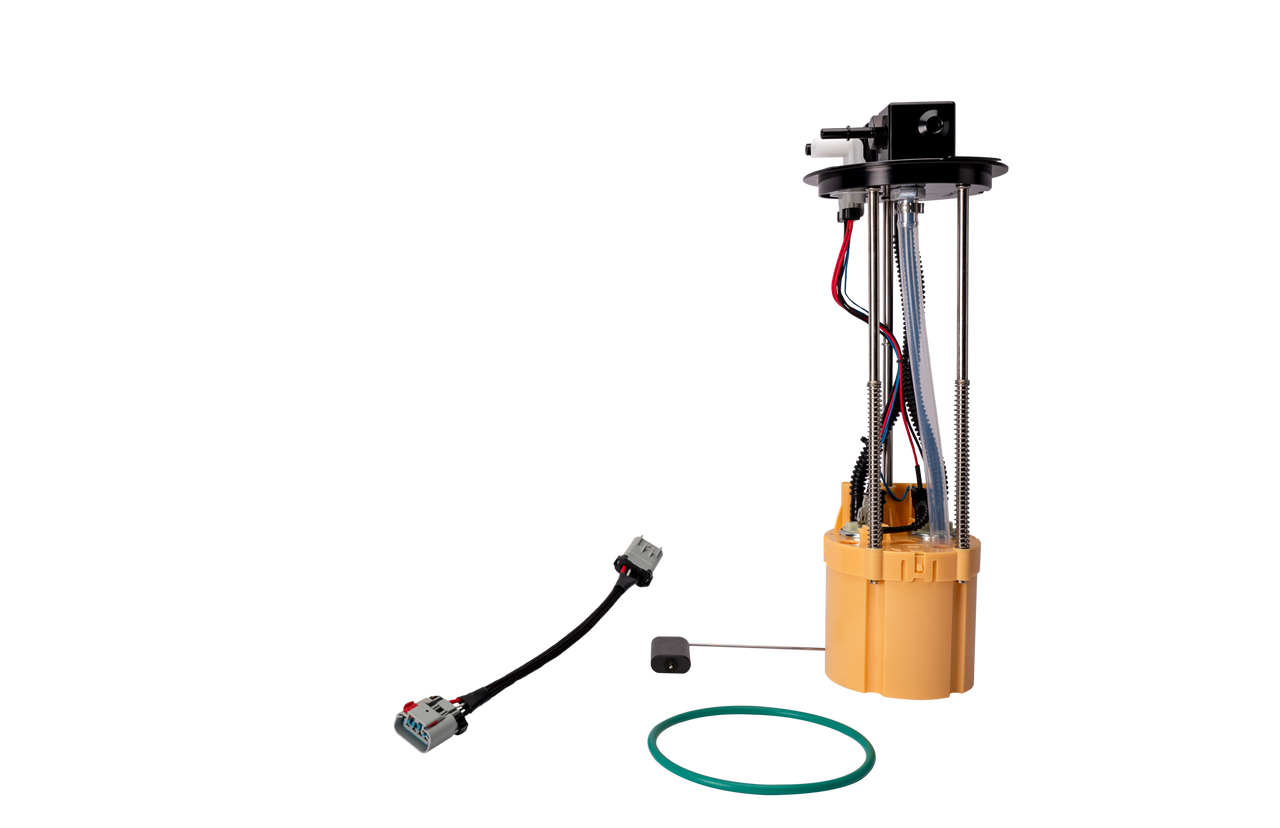

What’s Included
- Fleece Performance PowerFlo in-tank lift pump module – part number FPE-34562
- Integrated dual gerotor pump assembly
- New in-tank sending unit assembly (replaces OE 5145571AA)
- Electrical connection points for OE harness
- Installation instructions (via manufacturer)
Recommended Fleece Upgrades (CPP Diesel – FLEECE ONLY)
Pair the PowerFlo with other Fleece components from CPP Diesel for a complete, high-reliability fuel and air system:
- FLEECE FPE-CUMM-HFFBA-0318 AUXILIARY HEATED FUEL FILTER KIT FOR 03-18 DODGE RAM CUMMINS – Adds extra filtration and heating while keeping factory-style plumbing.
- FLEECE FPE-CUMM-CP3K-5.9 5.9L CUMMINS CP3K – High-output CP3K pump for 5.9L Cummins builds that demand more rail pressure.
- FLEECE FPE-351-0712 2007.5-2012 CUMMINS 63MM FMW HOLSET VGT CHEETAH TURBOCHARGER – Cheetah VGT upgrade for earlier 6.7 trucks feeding off strong low-pressure fuel.
- FLEECE FPE-351-1317 2013-2017 CUMMINS 63MM FMW HOLSET VGT CHEETAH TURBOCHARGER – 63mm Cheetah turbo that pairs perfectly with higher-volume low-pressure supply.
- FLEECE FPE-FH-CUMM-GM FUEL HEATER FOR GM/CUMMINS FILTER BASES – Fuel heater integration for cold-climate builds running Fleece filter bases.
Specifications for FLEECE FPE-34562
| Attribute | Value |
|---|---|
| Brand | Fleece Performance Engineering |
| Part Number | FPE-34562 |
| OE Cross Reference | Replaces OE module 5145571AA (Ram 6.7L Cummins) |
| UPC | 635909312260 |
| GTIN (14) | 00635909312260 |
| Engine Compatibility | 2011–2024 Ram 2500/3500 with 6.7L Cummins diesel (pickup only) |
| Flow / Pressure | 170 GPH @ 15 PSI; ~18–20 PSI at idle (regulated return) |
| Horsepower Capability | Supports 800+ RWHP, including dual CP3 configurations |
| Pump Type | Dual OEM-quality gerotor pumps inside in-tank module |
| Connections | Retains factory fuel lines; outlet/return threaded for -8 ORB (3/4\"-16) if using aftermarket plumbing |
| Retained OEM Functions | Factory water-in-fuel sensor and fuel heater retained; stock wiring integration |
| Biodiesel Compatibility | Validated up to 20% biodiesel (B20) |
| Emissions / E-Codes | E-Code 2; covered under CARB EO D-834-12 for applicable applications |
| Shipping Weight | Approx. 5 lb (per common distributor specs) |
| Shipping Dimensions (L x W x H) | ~22 in x 10 in x 12 in |
| Country of Origin | USA (per distributor listings) |
| Warranty | Lifetime limited manufacturer warranty |
| Fitment Notes | Not for Cab & Chassis. Not compatible with 2020+ trucks equipped with factory 50-gallon fuel tank option. |
| Prop 65 | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
FAQ – FLEECE FPE-34562 POWERFLO IN-TANK LIFT PUMP
How much power will the FPE-34562 PowerFlo support?The dual gerotor design flows roughly 170 GPH @ 15 PSI and is rated to support 800+ rear-wheel horsepower when paired with appropriate high-pressure fuel components (CP3/CP4 or dual CP3 setups), injectors, and tuning.
Is this a direct drop-in replacement for my factory sending unit?
Yes. The PowerFlo FPE-34562 is a direct in-tank replacement for the OE fuel module on 2011–2024 Ram 2500/3500 6.7L Cummins pickups (excluding Cab & Chassis and 50-gallon tank trucks). It plugs into the factory wiring, uses the stock fuel lines, and drops into the tank like an OE assembly.
Does this pump fix the “¼ tank” fuel starvation issue?
Yes. The built-in active fill bucket design eliminates the common quarter-tank issues seen with many frame-mounted lift pumps. It keeps the bucket full and the pump supplied with fuel even at lower indicated tank levels, so you can safely use more of your tank’s capacity.
Will it work with Titan or other aftermarket fuel tanks?
The PowerFlo is designed primarily for the OEM tank. Some aftermarket tank manufacturers (such as Titan) specifically support the FPE-34562 module – always verify with the tank maker’s fitment data before installing. When in doubt, check their application notes or contact CPP Diesel for guidance.
Is this pump legal for street use?
Yes, for most on-road applications. The pump is associated with CARB EO D-834-12 for applicable vehicles and configurations. Always confirm current emissions rules and EO coverage for your specific year, configuration, and location before installing any emissions-related components.
Can I run biodiesel with the PowerFlo?
The FPE-34562 PowerFlo is validated for use with up to B20 (20% biodiesel). For higher biodiesel blends, consult Fleece Performance or a qualified diesel shop regarding seal compatibility and service intervals.
