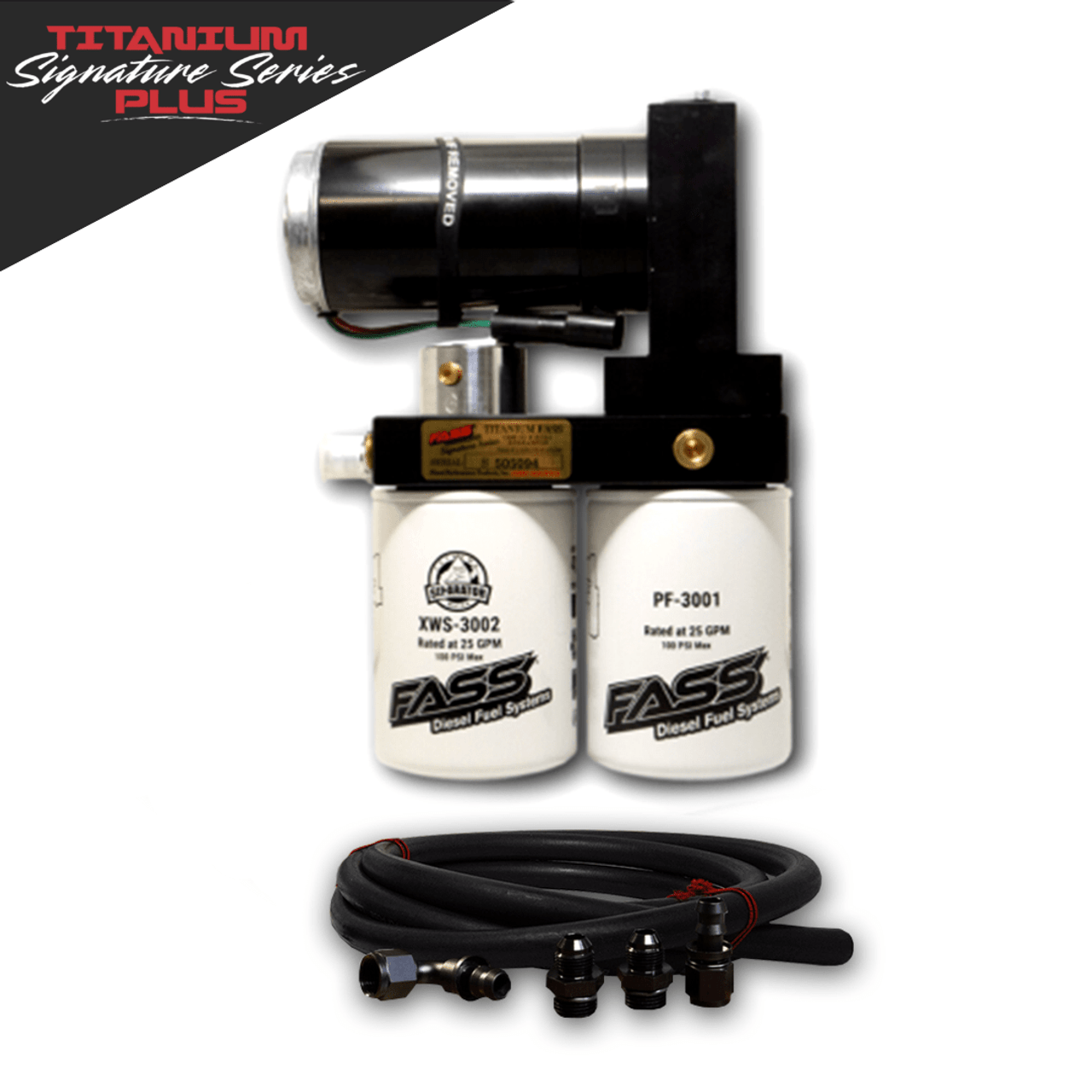

FASS TSPF20290F240G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 2023-2024 FORD POWERSTROKE 6.7L (900-1200HP)

(No reviews yet) Write a Review
SKU:
FASTSPF20290F240G
MPN:
TSPF20290F240G
Shipping:
Calculated at Checkout
  • FASS TSPF20290F240G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 2023-2024 FORD POWERSTROKE 6.7L (900-1200HP)
  • FASS TSPF20290F240G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 2023-2024 FORD POWERSTROKE 6.7L (900-1200HP)
$1,109.00

Description

The Titanium Signature Series Plus is the next evolution of our popular Titanium Signature Series Fuel System. The Titanium Signature Series Plus is equipped with ORB (O-Ring Boss) Fittings, 6061 aluminum black anodized fittings, and black fuel line for an ultra-clean installation!

This Fuel System was engineered by Fass to be the top-performing, longest-lasting, and most reliable aftermarket filtration system in the diesel industry. Rated at 240 gallons per hour and backed by our limited lifetime warranty, the Titanium Signature Series Plus Fuel System can support your Ford Powerstroke 6.7L diesel engine with enough fuel for up to 700 HP.

This Fuel System also offers advanced filtration benefits that will help protect your Powerstroke injection Systems, effectively extending the life of both your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and Fass Diesel Fuel Systems patented air/vapor removal process.

Powerstroke diesel engines are known for having injector failure issues; and Fass Filtration Systems are designed to eliminate those that are fuel related.

Titanium Signature Series Plus Fuel Systems lead the diesel industry in both quality and effectiveness. This is because here at Fass, we focus on perfecting our Fuel Systems and how they are engineered-taking the extra steps that our competitors simply do not. By doing this, we have less than a 2 percent failure rating with our motor, and a design that implements unique design features you can only get with Fass Diesel Fuel Systems.

  • Fass Whisper Technology (FWT) effectively and drastically reduces the sound levels of the Signature Series Plus Fass Diesel Fuel System to a whisper while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
  • Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the Fass System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90-degree sharp angle. Fass Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
  • Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly Polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional Fass Fuel Heater options will help insure Extreme cold weather operations!
  • Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series Plus System takes only minutes, and all brackets are made from machined steel for superior support and strength.

Note: Installation of this kit on a cab and chassis may require modifications.
Features:

  • New Whisper Technology
  • Complete Replacement System
  • 240 Gallons Per Hour Flow Rating
  • Removes Water, Air and Debris from Diesel Fuel
  • 2 Micron Filtration Rating
  • Protects and Extends the Life of Your Injectors
  • Improved Cold Weather Starts
  • Decreases Carbon Monoxide and Carbon Dioxide Emissions
  • 1/2 Inch Fuel Lines and Ports
  • Fuel Mileage Improvement
  • Improved Fuel Volume Delivery
  • Smoother Engine Idle
  • Optional Electric Heater Ports
  • Optional Fuel Pressure Gauge Port
  • Limited Lifetime Warranty
  • 1,000,000 Mile Motor
  • 30,000 Mile Filter Life Expectancy
  • Quietest Motor on the Market
  • ORB (O-Ring Boss) Fittings
  • 6061 Aluminum Black Anodized Fittings
  • Black Fuel Line
  • 65psi

The FASS TSPF20290F240G Titanium Signature Series Plus Fuel System is a pivotal upgrade for 2023-2024 Ford Powerstroke 6.7L diesel engines, offering unparalleled performance for vehicles pushing 900-1200 horsepower. Designed for durability and efficiency, this advanced fuel system features ORB (O-Ring Boss) fittings, 6061 aluminum black anodized components, and sleek black fuel lines for an exceptionally clean installation.

Engineered by FASS, industry leaders in diesel filtration, this system delivers an impressive flow rate of 240 gallons per hour while ensuring the utmost reliability. With a filtration rating of just 2 microns, it effectively protects your injection systems, thereby extending the lifespan of both injectors and the overall engine. The innovative design incorporates a built-in water separation filter and FASS's patented air/vapor removal process, addressing common fuel-related injector failure issues.

Incorporating Whisper Technology, the system operates at a remarkably low noise level without compromising fuel flow, distinguishing itself from competitors that often sacrifice performance for quiet operation. The Performance Radius Cuts enhance fuel flow by minimizing restrictions and preventing air reintroduction, unlike typical competitors that use less efficient fittings.

Moreover, the Mass Flow Return technology ensures continuous fuel polishing, maintaining optimal fuel quality and enhancing performance, particularly in cold weather conditions with optional heating capabilities. The installation process is simplified with bolt-on brackets, eliminating the need for drilling or welding, ensuring a strong and supportive mount.

This comprehensive system not only improves fuel mileage and engine idle smoothness but also contributes to lower emissions while promising a durability of 30,000 miles for the filters and a lifetime warranty for peace of mind. Elevate your Ford Powerstroke’s performance with the FASS Titanium Signature Series Plus Fuel System, where innovative engineering meets exceptional reliability.
