Product Description

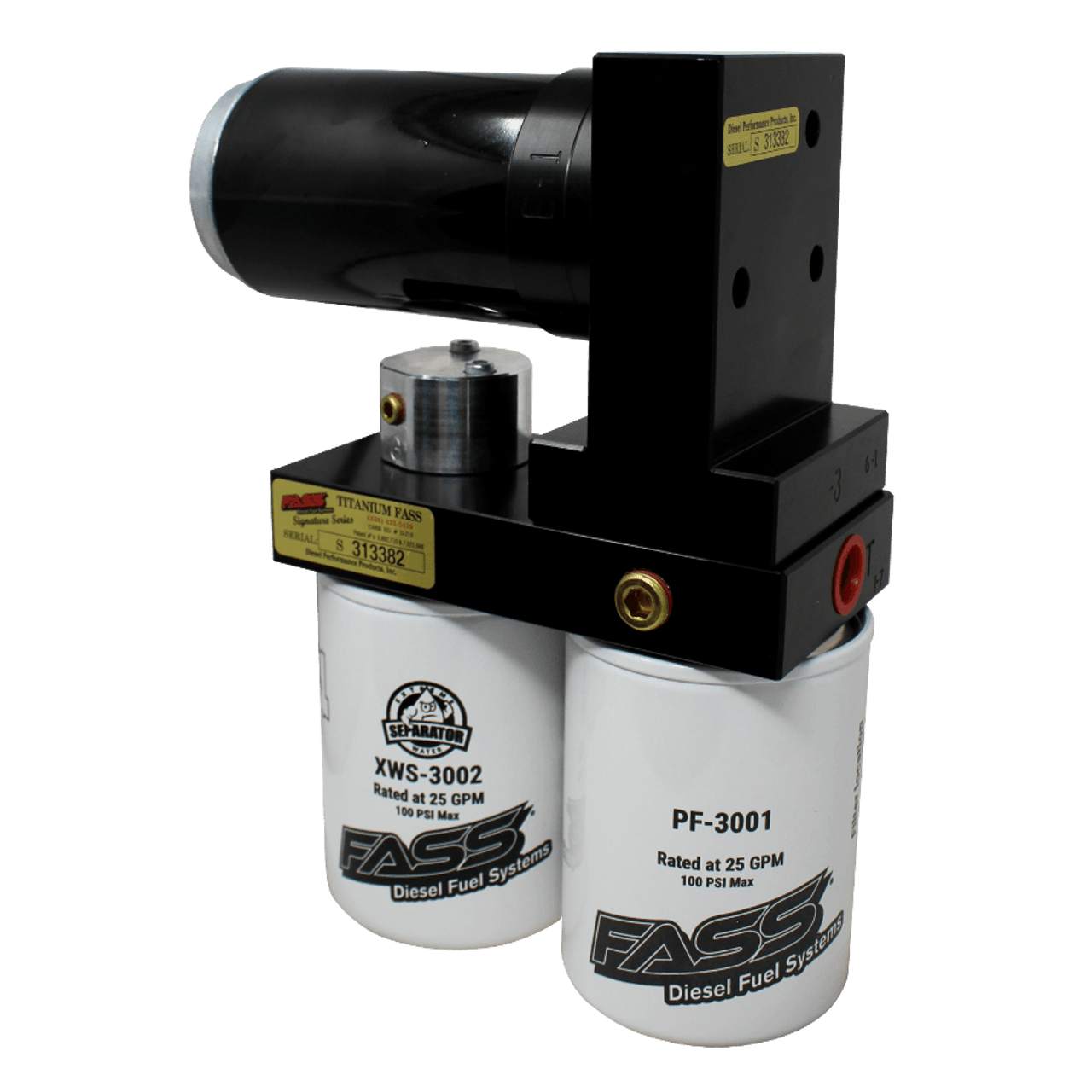

Overview: The FASS TSPD10250F240G Titanium Signature Series Plus delivers a massive 240 GPH of clean, de-aerated fuel for built 12-valve Cummins trucks in the 700–900 HP range. It features advanced filtration (down to 2 microns), fuel air separation, and whisper-quiet operation to protect injectors, smooth idle, and sustain rail pressure under load. Backed by FASS’s limited lifetime warranty.
Fitment
- 1994–1998 Dodge Ram 2500/3500 with 5.9L Cummins (12-valve, P7100)
- Recommended power range: ~700–900 HP
- Flow rate / pressure: 240 GPH / (FASS TSS+ application-specific)
Cross-Reference & Related FASS Items (on CPP Diesel)
- Need less flow? FASS TSPD10180F140G (Stock–700HP)
- Need more flow for bigger builds? FASS TSPD10290F260G (900–1200HP)
- No-tank-drop install option: FASS NDTSPD10250F240G (No-Drop Series Plus)
- Maintenance filters: FASS FLP3000 Fleet Filter Pack
Why Upgrade to Titanium Signature Series Plus?
- High-volume supply to support built P-pump 12-valves
- Air/vapor separation to stabilize injection events
- 2-micron particulate protection to extend injector life
- Reduced pump noise with Whisper Technology
- Lifetime warranty and proven reliability
Installation & Docs
Installation instructions are available from FASS here: https://www.fassride.com/manuals
Specifications
| Brand | FASS Fuel Systems |
| Part Number | TSPD10250F240G |
| Flow Rate | 240 GPH |
| Supported HP | ~700–900 HP |
| Vehicle Fitment | 1994–1998 Dodge Ram 2500/3500, 5.9L Cummins (12-valve) |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Shipping Method | Standard Ground (contiguous U.S.) |
| Package Dimensions | Not specified |
| Prop 65 | California Warning – www.P65Warnings.ca.gov |
FAQ
Will this pump support my 12-valve with larger injectors and high-timing P-pump?Yes—at 240 GPH, this system is aimed at ~700–900 HP builds and provides the volume and filtration to keep big injector/P-pump combos happy under load.
Is tank removal required?
This Titanium Signature Series Plus kit uses a traditional draw straw. If you want a no-tank-drop solution, consider the NDTSPD10250F240G No-Drop Series Plus, which includes a FASS sump.
What filters does it use for maintenance?
Titanium/TSS+ systems use the XWS3002 (water separator) and PF3001 (particulate).
