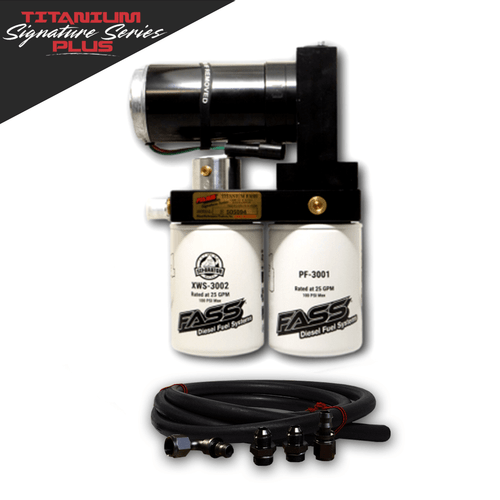

FASS TSPC15250F220G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 2020-2023 GM DURAMAX 6.6L (500-900HP)

The Titanium Signature Series Plus is the next evolution of our popular Titanium Signature Series Fuel System. The Titanium Signature Series Plus is equipped with ORB (O-Ring Boss) Fittings, 6061 aluminum black anodized fittings, and black fuel line for an ultra-clean installation!

This Fuel System was engineered by Fass to be the top-performing, longest-lasting, and most reliable aftermarket filtration system in the diesel industry. Rated at 220 gallons per hour and backed by our limited lifetime warranty, the Titanium Signature Series Plus Fuel System can support your GMC/Chevrolet Duramax 6.6L diesel engine with enough fuel for up to 900 HP.

This Fuel System also offers advanced filtration benefits that will help protect your Duramax injection Systems, effectively extending the life of both your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and Fass Diesel Fuel Systems patented air/vapor removal process.

Duramax diesel engines are known for having injector failure issues; and Fass Filtration Systems are designed to eliminate those that are fuel related.

Titanium Signature Series Plus Fuel Systems lead the diesel industry in both quality and effectiveness. This is because here at Fass, we focus on perfecting our Fuel Systems and how they are engineered-taking the extra steps that our competitors simply do not. By doing this, we have less than a 2 percent failure rating with our motor, and a design that implements unique design features you can only get with Fass Diesel Fuel Systems.

• Fass Whisper Technology (FWT) effectively and drastically reduces the sound levels of the Signature Series Plus Fass Diesel Fuel System to a whisper while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
• Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the Fass System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90-degree sharp angle. Fass Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
• Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly Polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional Fass Fuel Heater options will help insure Extreme cold weather operations!
• Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series Plus System takes only minutes, and all brackets are made from machined steel for superior support and strength.

Note: Installation of this kit on a cab and chassis may require modifications.
Features:

• New Whisper Technology
• Complete Replacement System
• 220 Gallons Per Hour Flow Rating
• Removes Water, Air and Debris from Diesel Fuel
• 2 Micron Filtration Rating
• Protects and Extends the Life of Your Injectors
• Improved Cold Weather Starts
• Decreases Carbon Monoxide and Carbon Dioxide Emissions
• 1/2 Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Optional Electric Heater Ports
• Optional Fuel Pressure Gauge Port
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy
• Quietest Motor on the Market
• ORB (O-Ring Boss) Fittings
• 6061 Aluminum Black Anodized Fittings
• Black Fuel Line
• 70-75psi

The FASS TSPC15250F220G Titanium Signature Series Plus Fuel System is the pinnacle of performance and reliability for 2020-2023 GM Duramax 6.6L diesel engines, designed to support an impressive range of 500-900 HP. Engineered with precision, this fuel system boasts exceptional features that set it apart in the diesel industry. With a robust flow rating of 220 gallons per hour, it ensures that your engine receives the optimal amount of clean fuel, enhancing both power and efficiency.

This advanced fuel system enriches the diesel experience with cutting-edge filtration technology, featuring a 2-micron filtration rating. It effectively removes contaminants such as water, air, and debris from diesel fuel, thereby extending the life of your injection system and injectors. Integrated into the design is a state-of-the-art water separation filter and the patented Fass Diesel Fuel Systems air/vapor removal process, addressing common injector failures associated with diesel engines.

Innovative Whisper Technology minimizes operational noise to a near-silent level, enhancing the driving experience without sacrificing flow rates. Performance Radius Cuts allow for smooth fuel movement within the system, preventing air reintroduction and optimizing flow dynamics. The Mass Flow Return technology ensures continuous fuel polishing, maintaining peak engine performance while prolonging the longevity of your system.

Installation is simplified with bolt-on bracket mounts, utilizing factory bed bolts for secure and easy setup. Crafted from 6061 aluminum with black anodized fittings, the system not only performs impeccably but also enhances the aesthetics of your vehicle. With optional electric heater ports and a limited lifetime warranty, the Titanium Signature Series Plus stands as the ultimate choice for discerning diesel enthusiasts seeking unrivaled quality and performance.
