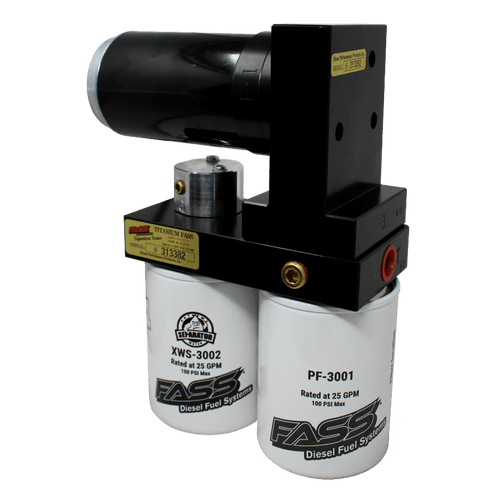

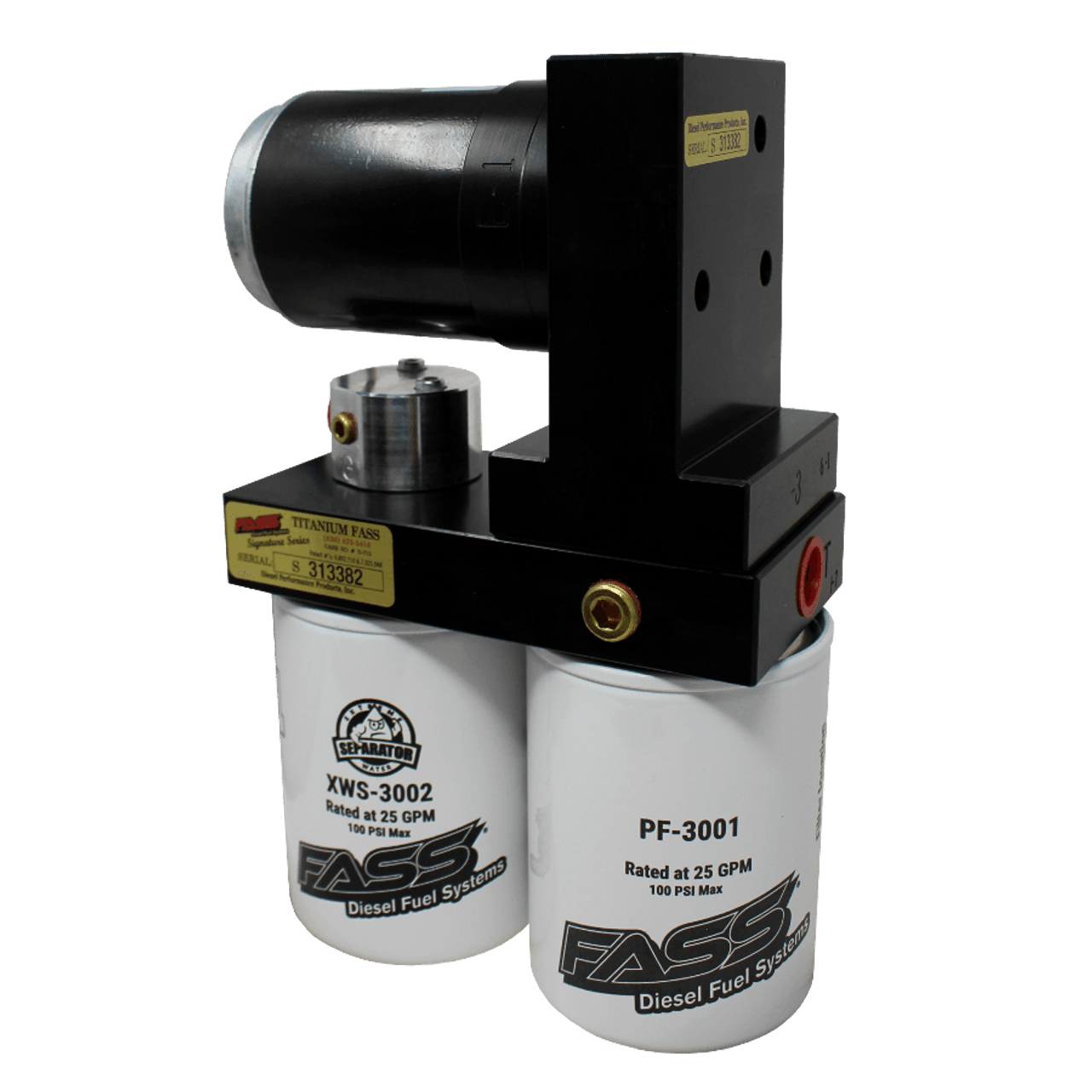

FASS TSPC12100G TITANIUM SIGNATURE SERIES PLUS FUEL SYSTEM FOR 2015-2016 SILVERADO/SIERRA DURAMAX 6.6L (STOCK-600HP)

The Titanium Signature Series Plus is the next evolution of our popular Titanium Signature Series Fuel System. The Titanium Signature Series Plus is equipped with ORB (O-Ring Boss) Fittings, 6061 aluminum black anodized fittings, and black fuel line for an ultra-clean installation!

This Fuel System was engineered by Fass to be the top-performing, longest-lasting, and most reliable aftermarket filtration system in the diesel industry. Rated at 100 gallons per hour and backed by our limited lifetime warranty, the Titanium Signature Series Plus Fuel System can support your GMC/Chevrolet Duramax 6.6L diesel engine with enough fuel for up to 600 HP.

This Fuel System also offers advanced filtration benefits that will help protect your Duramax injection Systems, effectively extending the life of both your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and Fass Diesel Fuel Systems patented air/vapor removal process.

Duramax diesel engines are known for having injector failure issues; and Fass Filtration Systems are designed to eliminate those that are fuel related.

Titanium Signature Series Plus Fuel Systems lead the diesel industry in both quality and effectiveness. This is because here at Fass, we focus on perfecting our Fuel Systems and how they are engineered-taking the extra steps that our competitors simply do not. By doing this, we have less than a 2 percent failure rating with our motor, and a design that implements unique design features you can only get with Fass Diesel Fuel Systems.

• Fass Whisper Technology (FWT) effectively and drastically reduces the sound levels of the Signature Series Plus Fass Diesel Fuel System to a whisper while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
• Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the Fass System by creating smooth-flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90-degree sharp angle. Fass Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.
• Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly Polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional Fass Fuel Heater options will help insure Extreme cold weather operations!
• Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new System. This has now been simplified with our new bolt on brackets that utilize your factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series Plus System takes only minutes, and all brackets are made from machined steel for superior support and strength.

Note: Installation of this kit on a cab and chassis may require modifications.
Features:

• New Whisper Technology
• Complete Replacement System
• 100 Gallons Per Hour Flow Rating
• Removes Water, Air and Debris from Diesel Fuel
• 2 Micron Filtration Rating
• Protects and Extends the Life of Your Injectors
• Improved Cold Weather Starts
• Decreases Carbon Monoxide and Carbon Dioxide Emissions
• 1/2 Inch Fuel Lines and Ports
• Fuel Mileage Improvement
• Improved Fuel Volume Delivery
• Smoother Engine Idle
• Optional Electric Heater Ports
• Optional Fuel Pressure Gauge Port
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy
• Quietest Motor on the Market
• ORB (O-Ring Boss) Fittings
• 6061 Aluminum Black Anodized Fittings
• Black Fuel Line

The FASS TSPC12100G Titanium Signature Series Plus Fuel System is a cutting-edge enhancement designed specifically for the 2015-2016 Silverado and Sierra Duramax 6.6L engines. This aftermarket filtration system sets a new industry standard, marrying durability with exceptional performance. With a flow rating of 100 gallons per hour, it can effortlessly support diesel engines up to 600 HP while maintaining a limited lifetime warranty, ensuring long-term reliability.

The Titanium Signature Series Plus features advanced engineering aesthetics that include ORB (O-Ring Boss) fittings and 6061 aluminum black anodized components, creating an ultra-clean installation environment with black fuel lines that blend seamlessly into your vehicle. This system enhances the longevity of your injection systems and injectors, thanks to its superior 2 Micron filtration rating and built-in water separation capabilities.

FASS has pioneered several technologies to enhance fuel performance and quality. The Whisper Technology (FWT) minimizes operational noise while optimizing fuel flow rates, setting it apart from competitors. Performance Radius Cuts (PRC) streamline fuel flow inside the system, preventing air reintroduction and ensuring efficient operation. The Mass Flow Return (MFR) system keeps your fuel clean by continually polishing it and maintaining pressure, preventing common issues like cavitation.

Installation has been simplified with innovative bolt-on mounting brackets, allowing for quick setup without the need for drilling or welding. Designed with extreme cold weather conditions in mind, the Titan Series Plus is equipped with optional electric heater ports, enhancing cold weather starts and improving fuel mileage.

The culmination of powerful features, superior performance, and exceptional engineering, the FASS Titanium Signature Series Plus Fuel System is the ultimate choice for anyone looking to elevate their Duramax diesel experience. Reliable and efficient, it guarantees a smoother engine idle, improved fuel volume delivery, and enhanced engine performance while contributing to a cleaner environment by reducing carbon emissions.
