Product Description

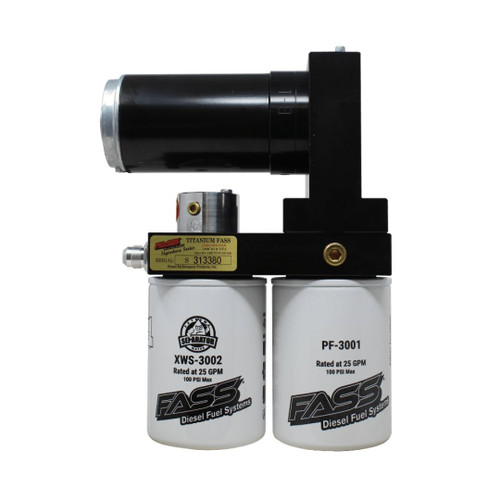

FASS TSF20250F220G TITANIUM SIGNATURE SERIES 220GPH FOR 2023–2024 FORD POWERSTROKE 6.7L delivers massive fuel volume (220 GPH @ 65 PSI) with industry-leading air/vapor separation and 2-micron filtration to protect injectors and high-pressure pumps. Engineered for quiet operation and long life, this system is ideal for 700–900 HP builds on the latest 6.7L Power Stroke.
- Rated flow: 220 GPH @ 65 PSI (supports 700–900 HP)
- Advanced air/vapor separation + 2-micron filtration
- Whisper-quiet pump technology and robust bracketry
- All 1/2" fuel ports; designed to bypass factory lift pump
- Made in the USA; limited lifetime warranty (per manufacturer)
Installation Manuals
Download the official Titanium Signature Series Installation Manuals. For 220G systems, see the direct PDF: T-UIM-220G Install Manual.
Fitment
- 2023–2024 Ford F-250/F-350 Super Duty, 6.7L Power Stroke diesel
- Designed for standard pickup applications
- Recommended power range: 700–900 HP
Cross-Reference / Related FASS Systems (CPP Diesel links)
- FASS TSF20180F140G – Titanium Signature 140GPH (2023–2024 6.7L)
- FASS TSF20290F240G – Titanium Signature 240GPH (2023–2024 6.7L)
- FASS NDTSF20250F220G – NO-DROP 220GPH Kit (includes sump)
- FASS TSPF20250F220G – Titanium Signature Series PLUS 220GPH
Specifications for Fass TSF20250F220G
| Attribute | Value |
|---|---|
| Brand | FASS Diesel Fuel Systems |
| Part Number | TSF20250F220G |
| Flow / Pressure | 220 GPH @ 65 PSI |
| Vehicle Fitment | 2023–2024 Ford 6.7L Power Stroke (F-250/F-350) |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Shipping Weight | ~34.3 lb (boxed) |
| Package Dimensions | Approx. 18.5" L × 13.9" W × 11.8" H |
| Prop 65 | This product can expose you to chemicals known to the State of California to cause cancer. Learn more. |
FAQ
Will this system support built 6.7L trucks?
Yes. The 220 GPH @ 65 PSI configuration is targeted for roughly 700–900 HP builds with adequate fueling headroom.
Does it replace the factory lift pump?
Yes—this Titanium Signature Series kit is designed to bypass the factory lift pump on 2023–2024 6.7L Power Stroke applications.
What filtration rating do the included filters have?
Primary filtration is rated at 2 microns with integrated water separation to protect injectors and the high-pressure fuel system.
Is there a quieter pump option?
This model already uses FASS “Whisper” pump technology. If you also want bundled sump/no-drop hardware, consider the NDTSF20250F220G NO-DROP 220GPH Kit.
