Product Description

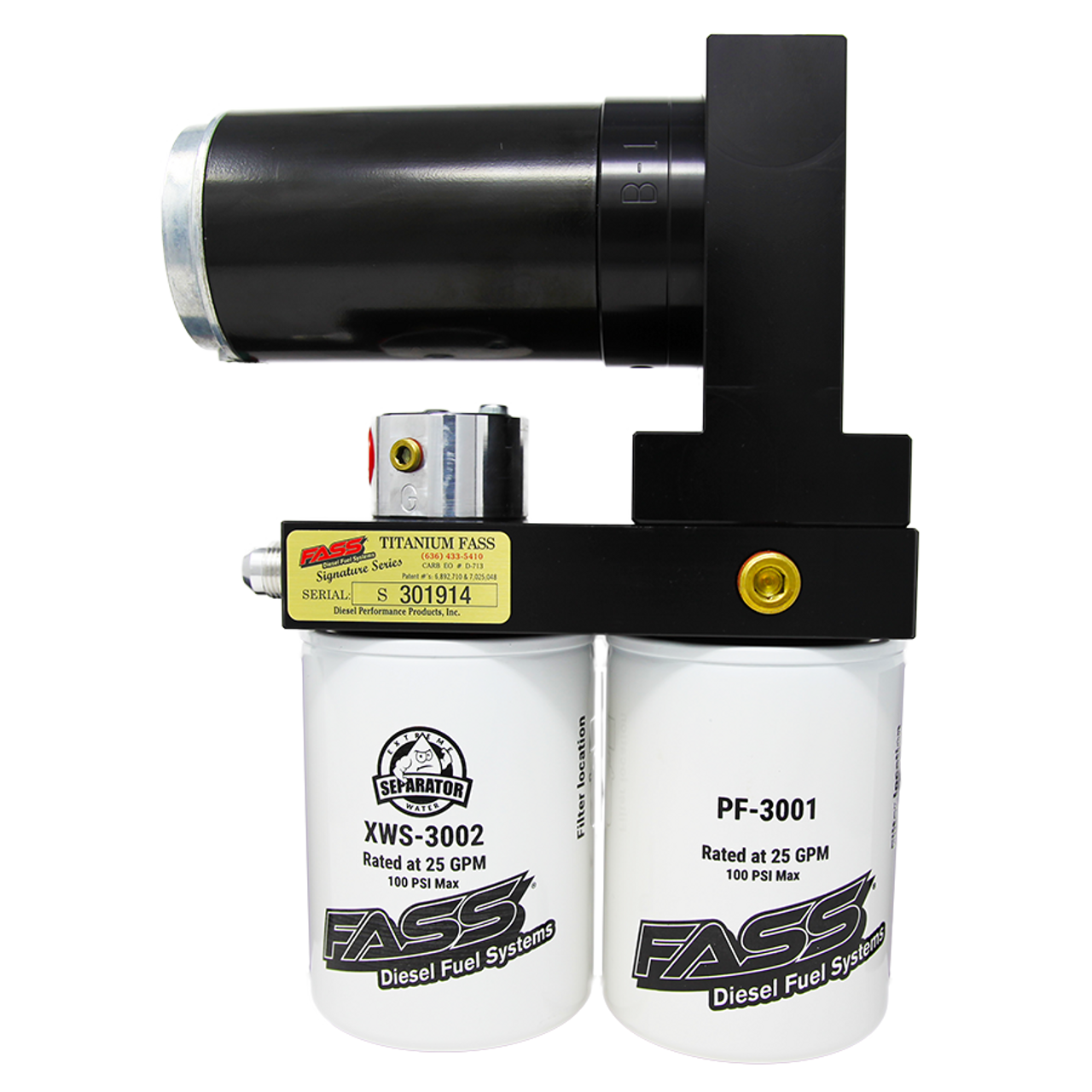

FASS TSF17250F220G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 250F 220GPH@55PSI FOR 2011–2016 FORD POWERSTROKE 6.7L
The FASS TSF17250F220G delivers 220GPH at 55 PSI with industry-leading air/vapor separation and multi-stage filtration to protect your 6.7L Powerstroke’s injection system. Built with whisper-quiet operation, high-efficiency filtering, and rock-solid reliability, this Titanium Signature Series system is a proven upgrade for tuned and high-demand builds.
Fitment
- Vehicle: Ford Powerstroke 6.7L (F-250/F-350), 2011–2016.
- System: Titanium Signature Series, preset to 55 PSI.
- Filters: Uses the current XWS/PF pair (see below). Do not mix with legacy FS/FF filters.
Recommended FASS Filters & Related (CPP Diesel)
- Required filtration pair: XWS3002 Extreme Water Separator + PF3001 Particulate Filter.
- Extended-length option: XWS-3002-XL + PF3001XL.
- No-Drop kits for 2011–2016 6.7L (includes sump SK5501):
- NDTSF17250F220G — No-Drop Series
- NDTSPF17250F220G — No-Drop Series Plus
- Other flow options for 2011–2016 6.7L (choose by power goals):
- TSF17180F140G — 140GPH @ 55 PSI
- TSF17290F240G — 240GPH @ 55 PSI
Installation & Manuals
See current FASS installation instructions and diagrams here: FASS Installation Manuals.
FAQ
What fuel pressure is this system set to?It’s preset to 55 PSI for the 6.7L Powerstroke platform.
Which filters should I run on this TSF system?
Use the XWS3002 water separator and PF3001 particulate filter. For extended service intervals, choose XWS-3002-XL + PF3001XL.
Will this support high horsepower and tuning?
Yes. The 220GPH flow supports aggressive tuning and high-demand builds on the 6.7L platform when paired with proper filtration and fueling setup.
Can I mix older FS/FF filters with the new XWS/PF filters?
No. Do not mix legacy filters with the current XWS/PF series.
Do you offer easier, no-tank-drop install kits?
Yes — see the No-Drop and No-Drop Plus packages for this truck.
Specifications for Fass TSF17250F220G
| Brand | FASS Fuel Systems |
| Part Number | TSF17250F220G |
| Vehicle Fitment | Ford Powerstroke 6.7L (F-250/F-350) 2011–2016 |
| Flow / Pressure | 220 GPH @ 55 PSI |
| Filter Set | XWS3002 (water) + PF3001 (particulate) — XL options available |
| UPC | 850044106653 |
| GTIN | 0850044106653 |
| Shipping Weight | ~30–31 lb (system boxed) |
| Package Dimensions | Approx. 18.4" L × 14.1" W × 11.9" H |
| Prop 65 | Yes — Cancer and Reproductive Harm |
