Product Description

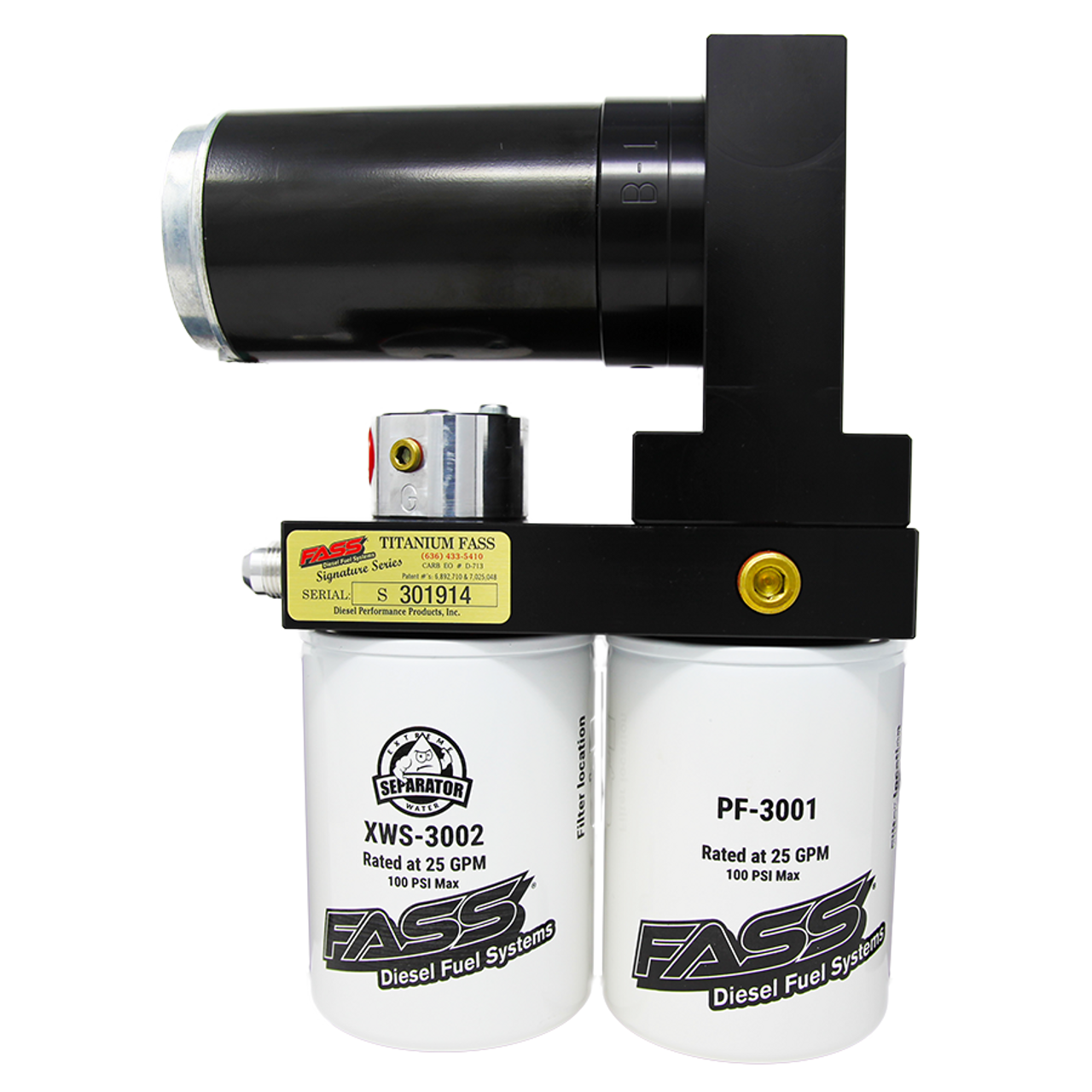

FASS TSD07290G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 290GPH FOR 2005–2018 & 2021 DODGE RAM WITH 5.9L AND 6.7L CUMMINS
The FASS TSD07290G is a high-capacity 290 GPH Titanium Signature Series system engineered for serious fueling demands on 2005–2018 & 2021 Dodge Ram 5.9L/6.7L Cummins trucks. It delivers stable 16–18 PSI supply pressure, removes air/vapor, and filters to 2 microns absolute to protect injectors. FASS Whisper Technology, Mass Flow Return (MFR), and Performance Radius Cuts (PRC) combine for quiet operation, polished fuel, and reliable volume for aggressive builds.
Fitment & System Notes
- Vehicle: Dodge Ram Cummins 5.9L/6.7L — 2005–2018 & 2021.
- Flow/Pressure: 290 GPH, preset ~16–18 PSI.
- Power support: Typically suitable for ~1200–1500 HP applications.
- Filter strategy (current): Run XWS3002 Extreme Water Separator on the pressure side and PF3001 Particulate Filter on the suction side. For extended service intervals, use XWS3002XL + PF3001XL.
- Includes: Bulkhead & suction tube components and model-specific bracketry for streamlined installation.
Installation & Manuals
See the official FASS manuals: FASS Installation Manuals. Direct PDF for this family: TS-D07-250G / TS-D07-290G Installation Manual (PDF).
Cross-Reference & Related FASS Items (CPP Diesel)
- Other Dodge Cummins Titanium Signature systems: TSD07100G (100GPH), TSD07165G (165GPH), TSD07250G (250GPH).
- PLUS & No-Drop options: TSPD07290G (PLUS), NDTSD07290G (No-Drop), NDTSPD07290G (No-Drop PLUS).
- Filters & service packs: XWS3002, PF3001, XWS3002XL, PF3001XL, FLP3000 Fleet Pack, FP3000XL Filter Pack.
FAQ
What horsepower range does the 290GPH system support?Generally ~1200–1500 HP when paired with appropriate fueling upgrades and tuning.
Which filters should I run on updated systems?
Use XWS3002 on the pressure side and PF3001 on the suction side. For XL service intervals, use XWS3002XL + PF3001XL.
Is this kit loud?
No. FASS Whisper Technology keeps operation extremely quiet while maintaining flow.
What’s included?
Complete TSD system with bracketry, plumbing, and bulkhead/suction tube components. See the install manual for the full parts list.
Specifications for Fass TSD07290G
| Brand | FASS Fuel Systems |
| Part Number | TSD07290G |
| Flow / Pressure | 290 GPH @ ~16–18 PSI (preset) |
| Engine / Years | Dodge Ram Cummins 5.9L & 6.7L (2005–2018 & 2021) |
| Horsepower Support | ~1200–1500 HP (application-dependent) |
| Filter Pair | XWS3002 (pressure side) + PF3001 (suction side) — XL options available |
| UPC | 850044106400 |
| GTIN | 0850044106400 |
| Package Dimensions | 14.00" W × 11.50" H × 18.00" D |
| Shipping | Free Shipping (Continental U.S.) |
| Prop 65 | Yes — Cancer and Reproductive Harm |
