Product Description

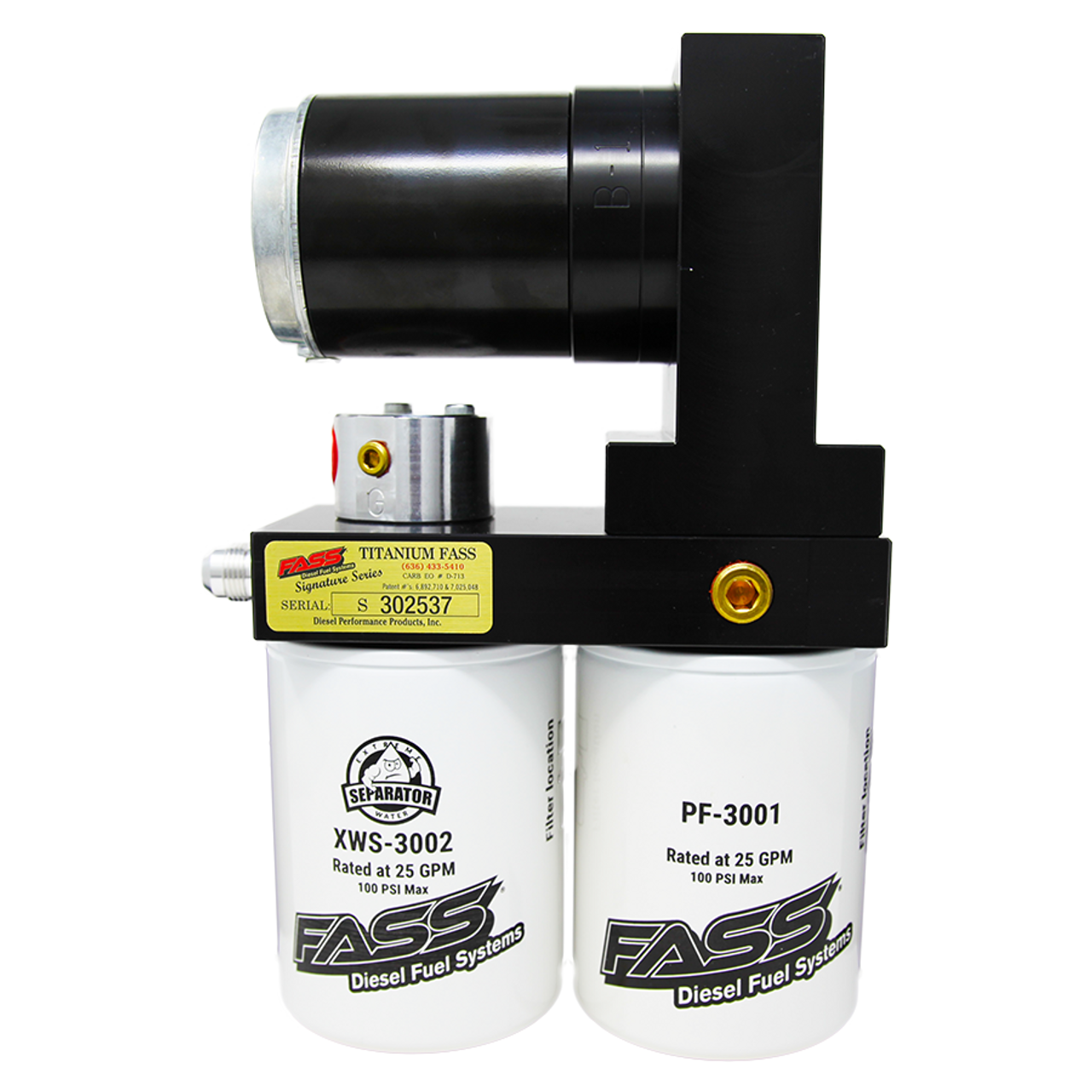

FASS TSD07165G TITANIUM SIGNATURE SERIES DIESEL FUEL SYSTEM 165GPH FOR 2005–2018 & 2021 DODGE RAM WITH 5.9L AND 6.7L CUMMINS
The FASS TSD07165G is a 165 GPH Titanium Signature Series system engineered to supply clean, air-free diesel to high-demand Cummins builds. It combines 2-micron absolute filtration, air/vapor separation, and whisper-quiet operation via FASS Whisper Technology. Preset fuel pressure is approximately 16–18 PSI for consistent delivery under load.
Fitment & System Notes
- Vehicles: 2005–2018 & 2021 Ram 2500/3500 with 5.9L or 6.7L Cummins (see model-year specifics in your install guide).
- Flow / Pressure: 165 GPH, preset ~16–18 PSI.
- Filter strategy (current): Run XWS3002 Extreme Water Separator on the pressure side and PF3001 Particulate Filter on the suction side.
- Includes: Bulkhead & suction tube hardware for streamlined installation (see manual for full contents).
Installation & Manuals
Use the official FASS manual hub for step-by-step instructions and the latest diagrams: FASS Installation Manuals.
Cross-Reference & Related FASS Items (CPP Diesel)
- Other Ram Cummins Titanium Signature systems: TSD07100G (100GPH), TSD07250G (250GPH), TSD07290G (290GPH).
- No-Drop options (pre-bundled with sump): NDTSD07165G (600–900 HP), NDTSPD07165G (No-Drop PLUS).
- Filters & service parts: XWS3002, PF3001, XWS3002XL, PF3001XL.
FAQ
What pressure does the TSD07165G run?It’s preset to approximately 16–18 PSI at the pump.
Which filters should I use?
The current pairing is XWS3002 (pressure side) and PF3001 (suction side). Extended-length setups use XWS3002XL and PF3001XL.
Is this compatible with 2021 6.7L trucks?
Yes—FASS lists coverage for 2005–2018 and 2021+ Cummins applications (see manual and FASS listing for latest coverage notes).
What’s included with the kit?
Complete Titanium Signature Series pump assembly with mounting hardware, plumbing, and bulkhead/suction tube components. See the manual hub for the current parts list.
Specifications for Fass TSD07165G
| Brand | FASS Fuel Systems |
| Part Number | TSD07165G |
| Flow / Pressure | 165 GPH @ ~16–18 PSI (preset) |
| Engine / Years | Ram 2500/3500 5.9L & 6.7L Cummins (2005–2018 & 2021+) |
| Filter Pair | XWS3002 (pressure side) + PF3001 (suction side) |
| UPC | 850044106387 |
| GTIN | 0850044106387 |
| Shipping Weight | ~28 lb |
| Package Dimensions | 18.00" L × 14.00" W × 11.50" H |
| Shipping | Free Shipping (Continental U.S.) |
| Prop 65 | Yes — Cancer and Reproductive Harm |
