FASS NDTSF20250F220G NO-DROP KIT 220GPH FOR 2023–2024 FORD POWERSTROKE 6.7L

Product Description

Overview: The FASS NDTSF20250F220G No-Drop Kit combines a Titanium Signature Series 220 GPH fuel system with the single-bolt SK5501 sump so you can install without dropping the tank. It’s engineered for 2023–2024 Ford F-250/F-350 6.7L Power Stroke applications making 700–900 HP and delivers class-leading 2-micron filtration, air/vapor separation, and water removal to extend injector and pump life.

Fitment

• Ford F-250 6.7L Power Stroke: 2023–2024
• Ford F-350 6.7L Power Stroke: 2023–2024

Note: F-450/cab-and-chassis may require modifications.

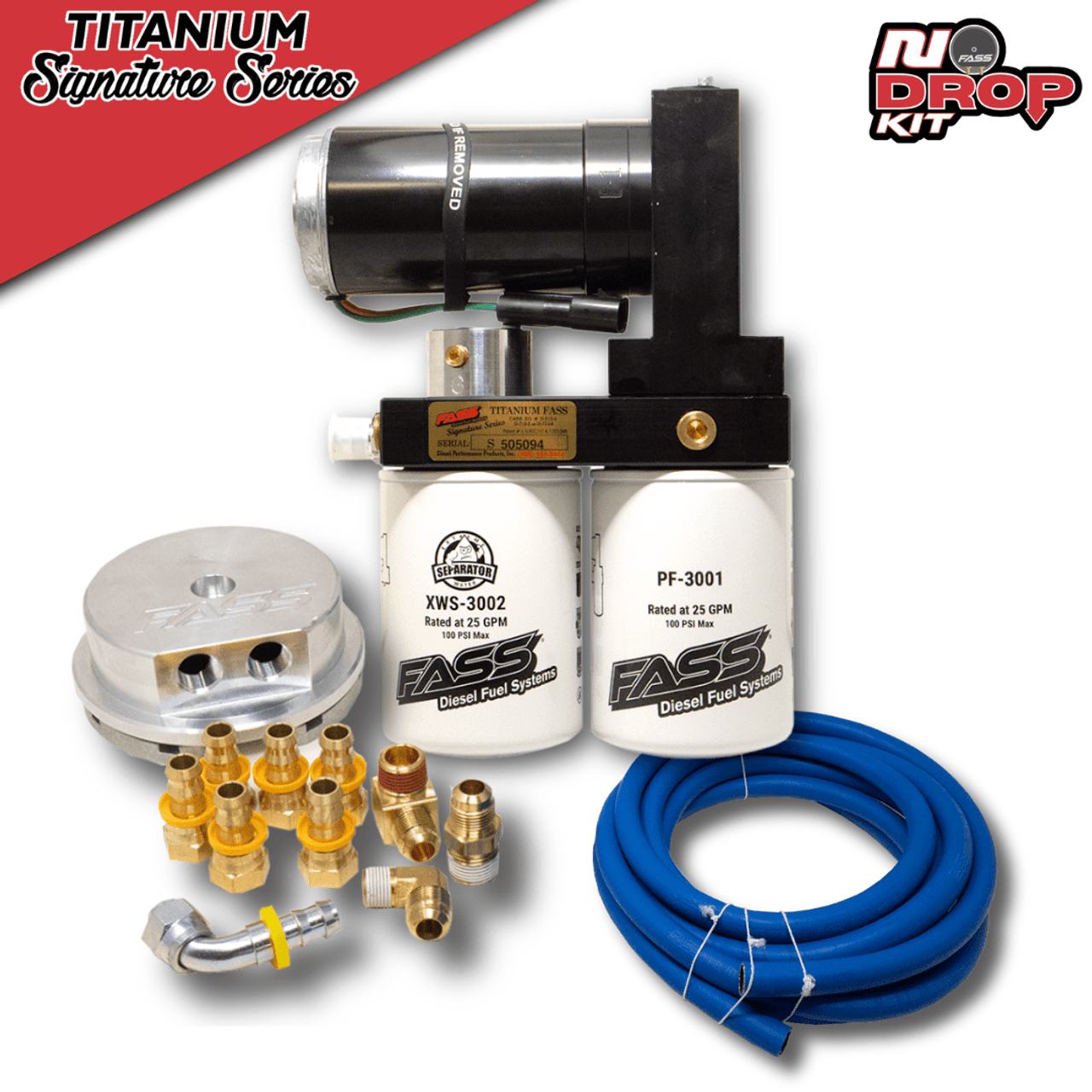

What’s Included

• FASS Titanium Signature Series Fuel System 220 GPH (TSF20250F220G)
• FASS Single-Bolt Diesel Fuel Sump Kit (SK5501)
• Hardware & components for a clean, straightforward install

Key Benefits

• Rated 220 GPH; supports ~700–900 HP
• 2-micron absolute filtration and water separation
• Removes entrained air/vapor to protect the injection system
• Increases fuel lubricity (can extend life of injection components)
• No-drop install via included SK5501 sump

Installation Instructions

Download the official FASS No-Drop/Sump install manuals here: FASS No-Drop Kit Installation Manuals

Cross-Reference / Related FASS Products (CPP Diesel)

• FASS TSF20250F220G Titanium Signature Series 220GPH (pump only)
• FASS NDTSF20180F140G No-Drop Kit 140GPH (’23–’24 6.7L)
• FASS NDTSF20290F240G No-Drop Kit 240GPH (’23–’24 6.7L)
• FASS NDTSPF20250F220G No-Drop PLUS 220GPH (’23–’24 6.7L)

FAQs

Does this kit require dropping the fuel tank?
No. The included SK5501 single-bolt sump enables a no-drop install for faster, cleaner installation.

What power level is this 220 GPH system designed to support?
It’s targeted at roughly 700–900 HP builds with adequate supply headroom for tuned/towed setups.

How does the 2-micron filtration help my injectors?
By capturing ultra-fine particulates and separating water/air, it reduces wear and cavitation that lead to costly injector and pump failures.

Is there a cold-weather option?
Yes—FASS electric fuel heater kits are available and compatible with this system.

Specifications for Fass NDTSF20250F220G
