Product Description
Skip the tank drop on your 2017–2022 6.7L Powerstroke. The FASS NDTSF18250F220G bundles the high-flow TSF18250F220G (220 GPH @ 65 PSI) with the SK5501 fuel sump to deliver clean, air-free fuel and a faster, easier install. Expect quieter operation, excellent filtration, and reliable pressure for 700–900 HP builds.

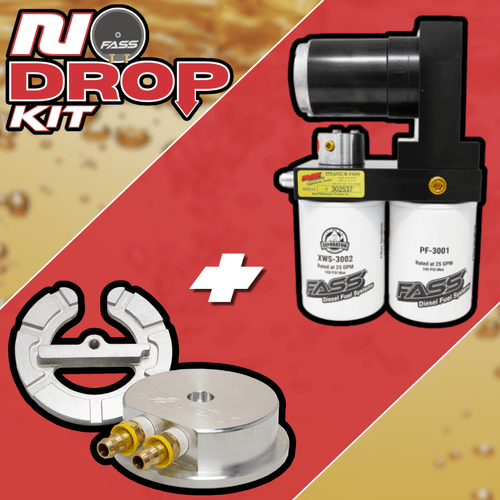

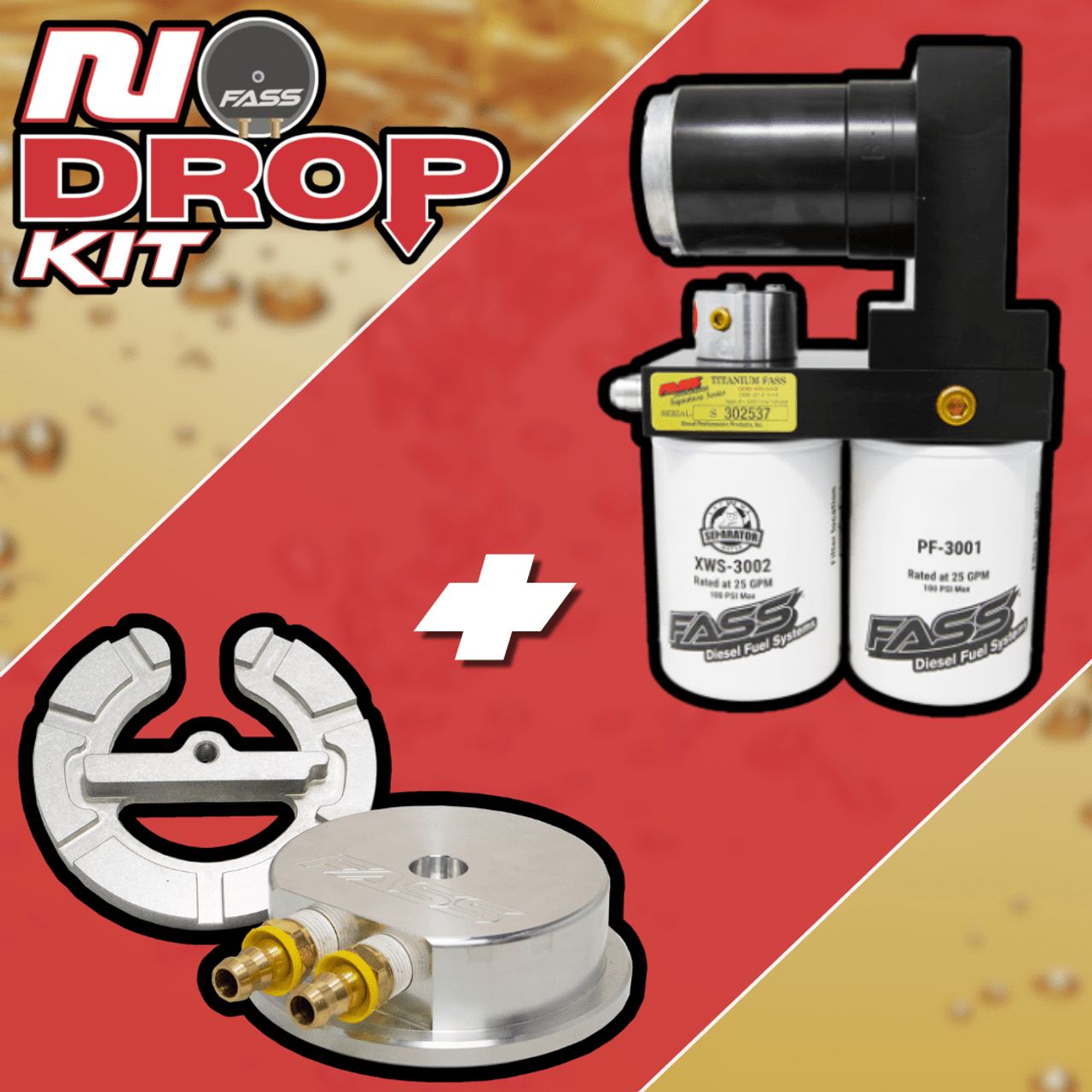

- Includes TSF18250F220G Titanium Signature Series system + SK5501 sump (no-drop install).
- Removes entrained air/vapor and separates water; 2-micron filtration helps protect injectors.
- Designed for tuned and high-output 6.7L builds needing consistent 220 GPH @ 65 PSI delivery.
- Free shipping; standard CPP Diesel support.
Fitment
2017, 2018, 2019, 2020, 2021, 2022 Ford F-250/F-350 Super Duty 6.7L Powerstroke. Suits builds in the ~700–900 HP range. (Cab & Chassis may require modifications—see manual.)
Cross-Reference / Related FASS Items (CPP Diesel only)
- FASS NDTSF18180F140G — No-Drop 140 GPH (stock–700 HP)
- FASS NDTSF18290F240G — No-Drop 240 GPH (900–1200 HP)
- FASS NDTSPF18250F220G — No-Drop Plus (ORB fittings/black line)
- FASS TSF18250F220G — Pump/system only (no sump)
- Filters & packs: XWS3002 + PF3001, FP3000 (2× XWS3002 + 2× PF3001)
- Cold-weather add-ons: HK1001 Electric Heater Kit, HKS1001 Splitter
Installation Instructions
Download the latest FASS install manuals here: https://www.fassride.com/manuals
FAQs
What’s included in this No-Drop kit?
One TSF18250F220G 220 GPH @ 65 PSI system plus one SK5501 sump kit—everything needed to avoid dropping the tank.
Which filters should I run?
Use the updated pair: XWS3002 (water separator) and PF3001 (particulate). The FP3000 pack keeps both on hand.
How much power will this support?
It’s suited for roughly 700–900 HP builds on the 6.7L Powerstroke with consistent 220 GPH flow at 65 PSI.
Is there a Plus version?
Yes—see NDTSPF18250F220G for ORB fittings, black line, and other Plus features.
Specifications for Fass NDTSF18250F220G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | NDTSF18250F220G |
| Includes | TSF18250F220G Fuel System + SK5501 Fuel Sump |
| Flow / Pressure | 220 GPH @ 65 PSI (via TSF18250F220G) |
| Horsepower Support | ~700–900 HP |
| UPC (TSF18250F220G) | 850044106684 |
| GTIN (TSF18250F220G) | 00850044106684 |
| Package Dimensions (W×H×D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (Standard Ground) |
| Prop 65 | WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov |
