Product Description

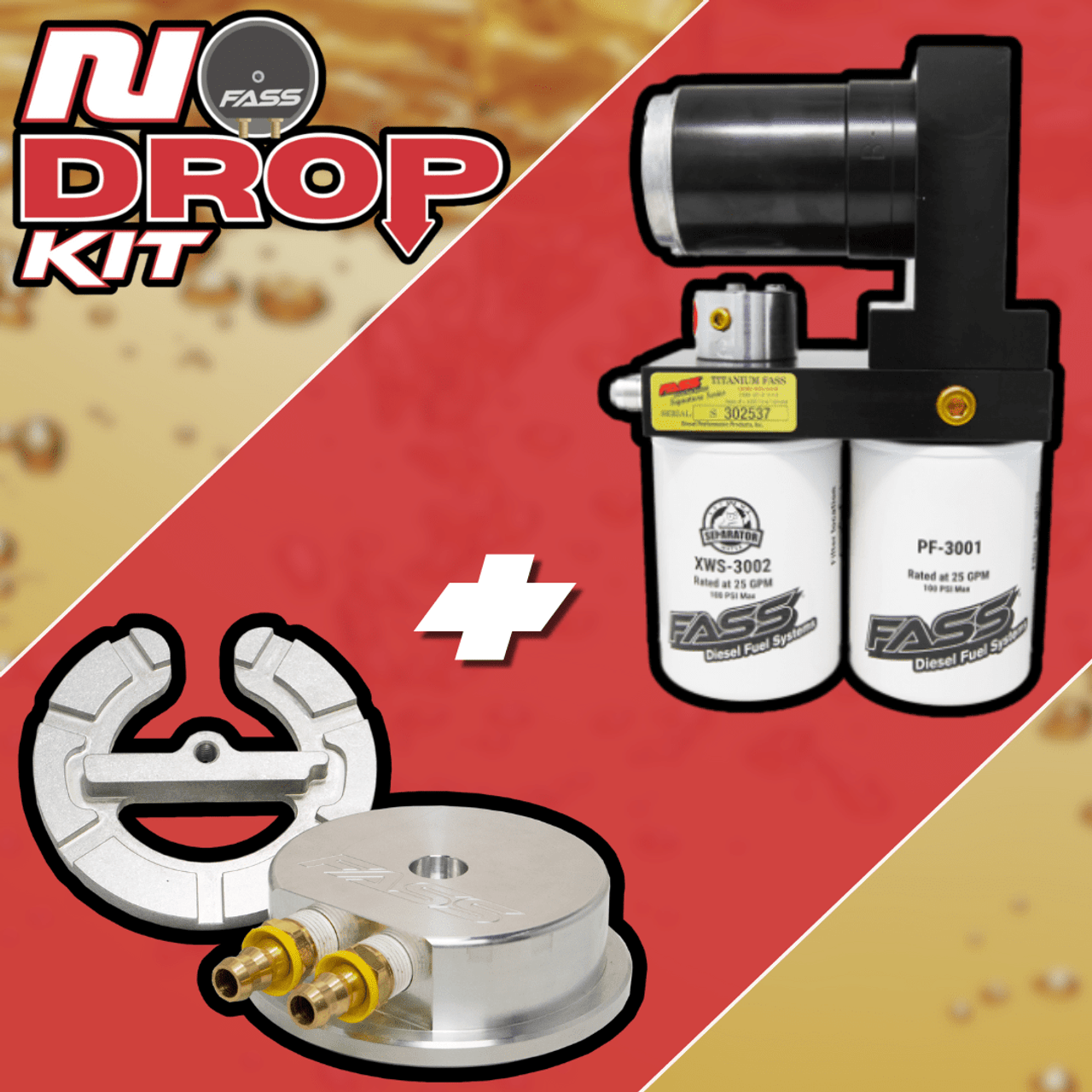

Why choose the FASS No Drop Series? The FASS NDTSF16100G combines the proven Titanium Signature Series 100 GPH fuel system (TSF16100G) with the FASS Fuel Sump Kit (SK5501) to simplify installation on your 2008–2010 Ford Power Stroke 6.4L—no fuel tank drop required. This kit improves filtration, removes entrained air/vapor, helps protect injectors and the HPFP, and reliably supports stock to ~600 HP builds.
Key Features
- 100 GPH (suitable for stock–600 HP 6.4L builds)
- No-drop install with included sump—cleaner plumbing, fewer headaches
- Air/vapor separation to protect injection components
- Enhanced filtration to 2 microns (absolute) for superior fuel cleanliness
- Whisper-quiet operation with durable, serviceable filters
Fitment
- Vehicle: Ford Super Duty F-250 / F-350
- Engine: 6.4L Power Stroke
- Model Years: 2008, 2009, 2010
- Application Range: Stock to ~600 HP
What’s Included
- (1) FASS Titanium Signature Series Fuel System – TSF16100G
- (1) FASS Fuel Sump Kit – SK5501
- Vehicle-specific hardware, wiring, and brackets per kit
Installation Instructions
Cross-Reference & Related FASS Options (CPP Diesel)
- TSPF16100G – Titanium Signature Series PLUS (Stock–600 HP)
- NDTSPF16100G – No-Drop Series PLUS (Stock–600 HP)
- TSF16100G – Titanium Signature Series 100 GPH (Base system)
- NDTSF16250G – No-Drop 165/250 GPH (900–1200 HP)
- NDTSF16290G – No-Drop 290 GPH (1200–1500 HP)
- TSF16165G – Titanium Signature Series 165 GPH
FAQs
Will I need to drop the tank on my 6.4L to install this kit?
No. The included FASS Fuel Sump (SK5501) allows a “no-drop” installation, saving time and hassle.
How much horsepower will the NDTSF16100G support?
It’s rated for stock to ~600 HP builds with 100 GPH flow. For larger builds, see 165/250 GPH or 290 GPH systems in the cross-reference above.
Does this system improve injector and pump life?
Yes. By removing air/vapor and filtering to 2 microns absolute, it helps protect injectors and the HPFP from wear and cavitation.
Are filters serviceable and quiet in operation?
Yes. Titanium Signature Series systems are designed for low noise and routine, straightforward filter service intervals.
Specifications for Fass NDTSF16100G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number (Kit) | NDTSF16100G (TSF16100G + SK5501) |
| Flow Rate | 100 GPH |
| Vehicle Fitment | 2008–2010 Ford F-250/F-350, 6.4L Power Stroke |
| UPC (Primary Pump TSF16100G) | 850044106592 |
| GTIN (TSF16100G) | 850044106592 |
| Shipping Method | Ground (carrier determined at checkout) |
| Shipping Weight | Not specified |
| Prop 65 Warning | This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. See www.P65Warnings.ca.gov. |
