Product Description

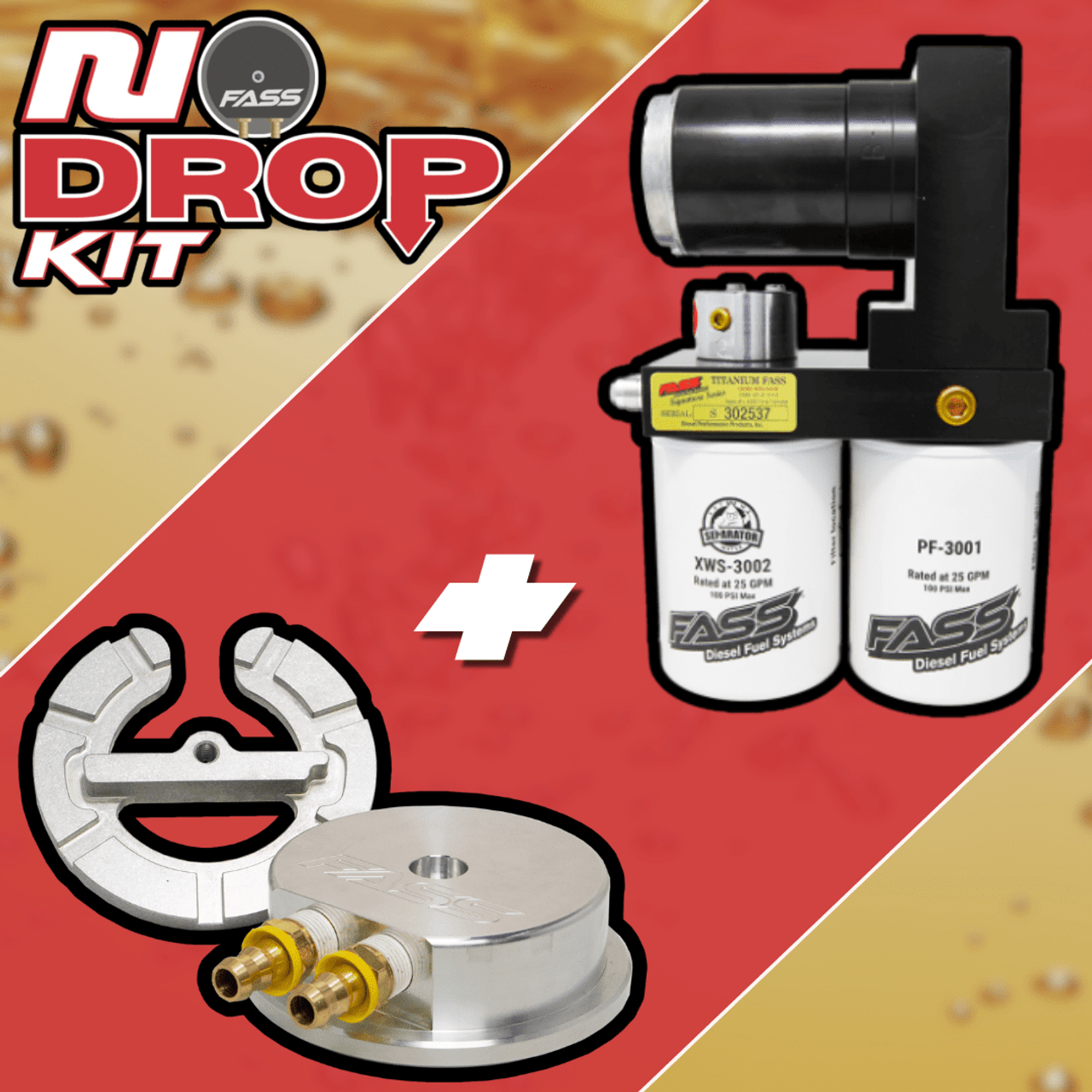

Install a high-flow FASS system without dropping the tank. The FASS NDTSF14250F220G No Drop Series bundles a Titanium Signature Series TSF14250F220G 220GPH system with the SK5501 fuel sump for a faster, cleaner install on 1999–2007 7.3L/6.0L Powerstroke trucks. Expect quieter operation, improved lubricity, and true 2-micron filtration with air/vapor and water removal.
- Includes TSF14250F220G (220GPH) + SK5501 sump for “no-tank-drop” install
- Removes entrained air/vapor and over 99% of water; 2-micron absolute polishing
- Supports ~600–900 HP builds (fueling/tuning dependent)
- Free Shipping from CPP Diesel
Fitment
- Ford F-250/F-350 Super Duty Powerstroke 7.3L (1999–2003)
- Ford F-250/F-350 Super Duty Powerstroke 6.0L (2003–2007)
Cross-Reference / Related FASS Items (CPP Diesel Only)
- FASS TSF14250F220G — Titanium Signature Series 220GPH (pump included in this kit)
- FASS NDTSPF14250F220G — No Drop PLUS 220GPH (alt. package)
- FASS NDTSF14180F140G — No Drop 140GPH (Stock–700HP)
- FASS NDTSF14290F240G — No Drop 240GPH (900–1200HP)
- Filters & service parts: XWS3002 (water separator), PF3001 (particulate), FLP3000 filter 6-pack; XL options: XWS-3002-XL, PF3001XL
- Cold-weather add-on: HK1001 Electric Heater Kit or HKS1001 splitter
Installation Instructions
Grab current FASS install manuals (Titanium Signature Series, No Drop, & accessories) here: https://www.fassride.com/fass-installation-manuals
FAQs
What’s included in NDTSF14250F220G?
A complete No Drop kit: the TSF14250F220G 220GPH Titanium Signature Series system plus the SK5501 fuel sump and plumbing for a no-tank-drop install.
What horsepower range is this aimed at?
Typically ~600–900 HP, depending on your fueling/turbos/tuning.
Which filters should I stock?
Use XWS3002 (pressure side) and PF3001 (suction side). For extended intervals, step up to XWS-3002-XL and PF3001XL.
Do I need to drop the tank for this install?
No—the included SK5501 sump is designed to eliminate tank removal, speeding up the install.
Specifications for Fass NDTSF14250F220G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | NDTSF14250F220G |
| Includes | TSF14250F220G (220GPH) + SK5501 sump |
| Vehicle Fitment | 1999–2007 Ford F-250/F-350, 7.3L & 6.0L Powerstroke |
| UPC | 850044106547 (TSF14250F220G component) |
| GTIN | 0850044106547 (TSF14250F220G component) |
| Package Dimensions (W×H×D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (Standard Ground) |
| Prop 65 | WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov |
