Product Description

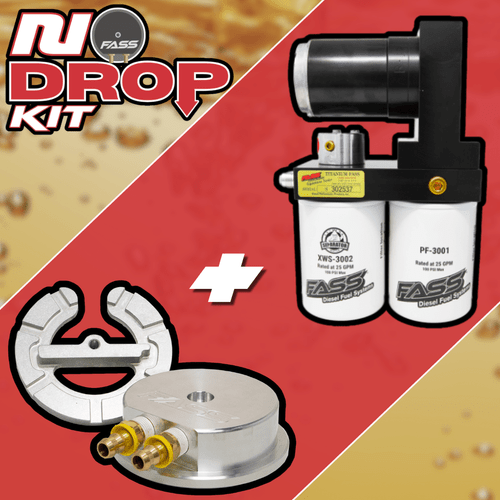

Skip the tank drop and get dependable fuel delivery on your 2019–2020 6.7L Cummins. The FASS NDTSD12100G No Drop Series bundles a Titanium Signature Series 100GPH system with the single-bolt SK5501 sump for a clean, fast install and reliable filtration down to 2 microns absolute. Kit supports stock up to ~600 HP builds and reduces entrained air/vapor while separating water for injector protection.
- Includes: TSD12100G (100 GPH, ~8–10 PSI) + SK5501 return-style sump
- Air/vapor removal + water separation; 2-micron absolute filtration
- Improved fuel lubricity; helps extend injector & pump life
- No-tank-drop install with included sump; bolt-on brackets
- Compatible with optional electric fuel heater kit (see HK1001 below)
- Limited Lifetime Warranty (per manufacturer)
Fitment
2019–2020 Ram 2500/3500 6.7L Cummins (pickup). Designed for stock to ~600 HP applications.
Cross-Reference / Related FASS Items (CPP Diesel only)
- NDTSPD12100G — No-Drop Series PLUS (stock–600HP)
- NDTSD12165G — No-Drop Series 165GPH (600–1000HP)
- NDTSD12250G — No-Drop Series 250GPH (900–1200HP)
- TSPD12100G — Titanium Signature Series PLUS (stock–600HP)
- Filters: XWS3002 water separator, PF3001 particulate (or XWS3002XL / PF3001XL)
- Cold-weather add-on: HK1001 Electric Heater Kit (Titanium/Titanium Signature systems)
Installation Instructions
Download the latest install guides from the official FASS manuals hub: FASS Installation Manuals. For this kit, see the Titanium Signature Series D12 100G/165G manual on that page.
FAQs
What’s included in NDTSD12100G?
One TSD12100G 100GPH Titanium Signature Series system plus the SK5501 single-bolt sump, with hardware to complete a no-tank-drop install.
What pressure and flow does the system provide?
TSD12100G is rated ~100 GPH at 8–10 PSI for stock-to-600HP fueling on the 6.7L Cummins.
Which filters should I keep on hand?
Use the current two-filter set: XWS3002 (water) and PF3001 (particulate). XL versions are available for extended service intervals.
Do I need to drop the tank?
No. The included SK5501 sump enables a clean, single-bolt, no-tank-drop installation.
Specifications for Fass NDTSD12100G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | NDTSD12100G |
| Flow / Pressure | 100 GPH @ ~8–10 PSI (system) |
| Filtration | 2-micron absolute; water separation; air/vapor removal |
| Kit-Level UPC | Not specified by manufacturer |
| Primary System (TSD12100G) UPC / GTIN-14 | 850044106493 / 00850044106493 |
| Sump (SK5501) UPC / GTIN-14 | 850044137527 / 00850044137527 |
| Package Dimensions (W×H×D) | 14.00" × 11.50" × 18.00" |
| Shipping | Free Shipping (Standard Ground) |
| Prop 65 | WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov |
