Product Description

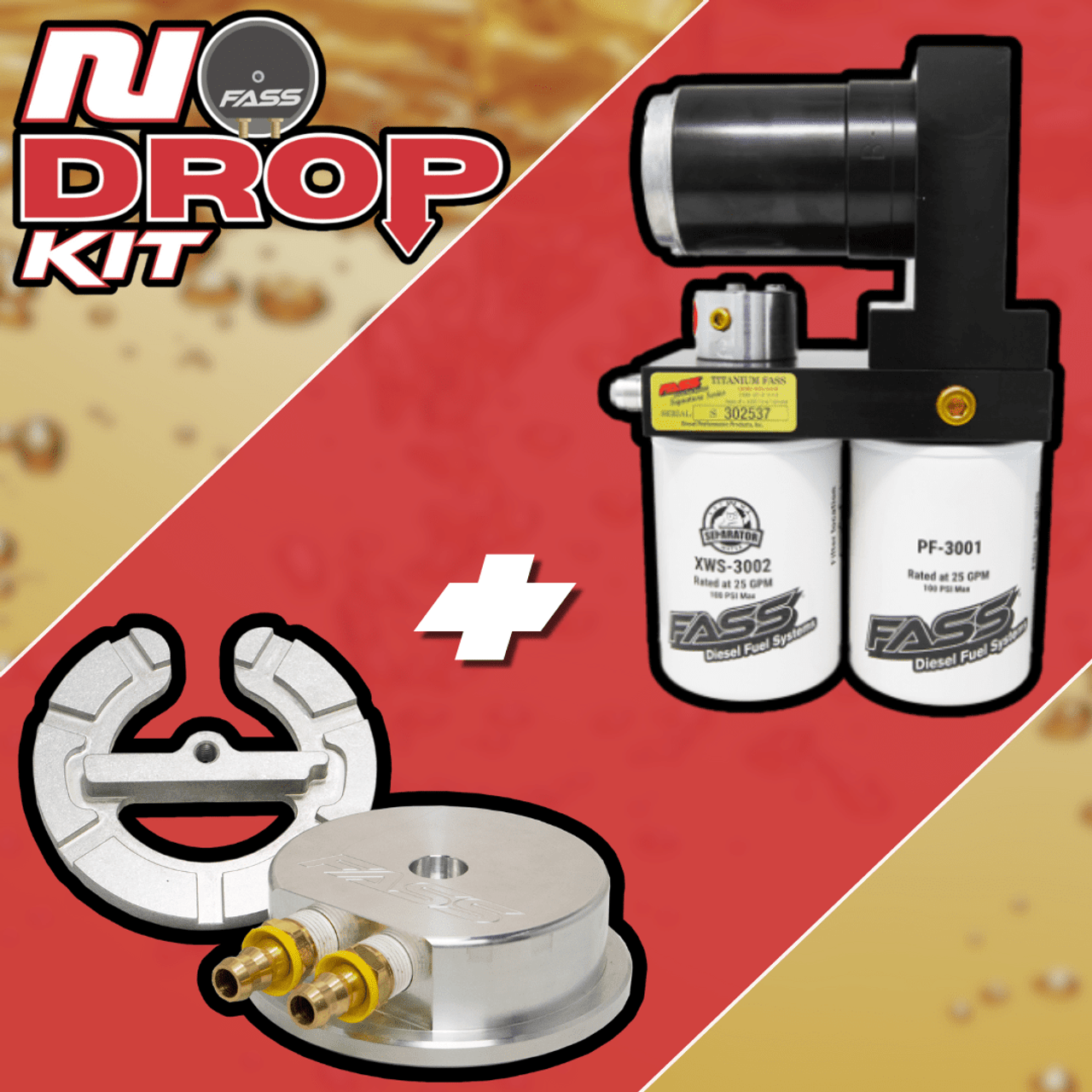

No-Drop FASS kit for 12-valve Cummins power builds. The FASS NDTSD10250F240G packages a 240 GPH Titanium Signature Series fuel system with a FASS fuel sump so you don’t have to drop the tank. It’s engineered for 900–1200 HP P-pump builds, delivering clean, air-free fuel at ~45 PSI to protect injectors and extend system life.
Fitment
- Vehicle: 1994–1998 Dodge/Ram 2500 & 3500, 5.9L Cummins 12-valve
- System rating: 240 GPH / ~45 PSI
- Suggested power range: 900–1200 HP
What’s Included
- One (1) FASS Titanium Signature Series Fuel System, 240 GPH @ ~45 PSI (TSD10250F240G)
- One (1) FASS Fuel Sump Kit (SK5501) for a true no-tank-drop install
- Mounting hardware, plumbing, and wiring for a clean installation
Why This No-Drop Kit
- Eliminates entrained air and vapor; steadier pressure to the P-pump
- Advanced filtration to 2-micron absolute; removes >99% water
- Improves fuel lubricity and can extend injector & pump life
- Heater-ready ports (heater sold separately) for cold-weather starts
Cross-Reference / Related FASS Items (CPP Diesel only)
- FASS NDTSD10180F140G No-Drop (Stock–700 HP)
- FASS NDTSD10290F260G No-Drop (1200–1500 HP)
- FASS NDTSPD10290F260G No-Drop PLUS (900–1200 HP)
- FASS HK1001 Electric Fuel Heater (Titanium/Titanium Signature)
- FASS PF3001 Particulate Filter (replacement) & FASS XWS3002 Water Separator
- FASS FP3000 Filter Pack & FASS FP3000XL Filter Pack XL
Installation Instructions
Grab the newest manuals here: FASS Installation Manuals (select 1994–1998 Cummins / Titanium Signature / No-Drop).
FAQs
Do I have to drop the tank?
No. This kit includes the SK5501 sump so the tank stays up—quicker, cleaner install with reliable pickup.
What power level is this kit for?
It’s aimed at serious 12-valve builds in the 900–1200 HP range. For other ranges, see the related 140 GPH and 260 GPH kits above.
What filters do I run?
Use the modern pair: PF3001 (particulate) on the suction side and XWS3002 (water separator) on the pressure side. Filter pack options: FP3000 or FP3000XL.
Is a heater recommended?
In sub-freezing climates, add the HK1001 electric heater for better winter starts and flow.
Specifications for Fass NDTSD10250F240G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | NDTSD10250F240G (TSD10250F240G + SK5501) |
| UPC | 850044106462 (TSD10250F240G component) |
| GTIN (14) | 00850044106462 |
| Flow / Pressure | 240 GPH / ~45 PSI |
| Vehicle Fitment | 1994–1998 Ram 2500/3500 5.9L Cummins (12-valve) |
| Package Dimensions (approx.) | 18.00" L × 14.00" W × 11.50" H |
| Shipping Method | Free Shipping (standard ground) |
| Prop 65 | WARNING: Cancer and Reproductive Harm |
