Product Description

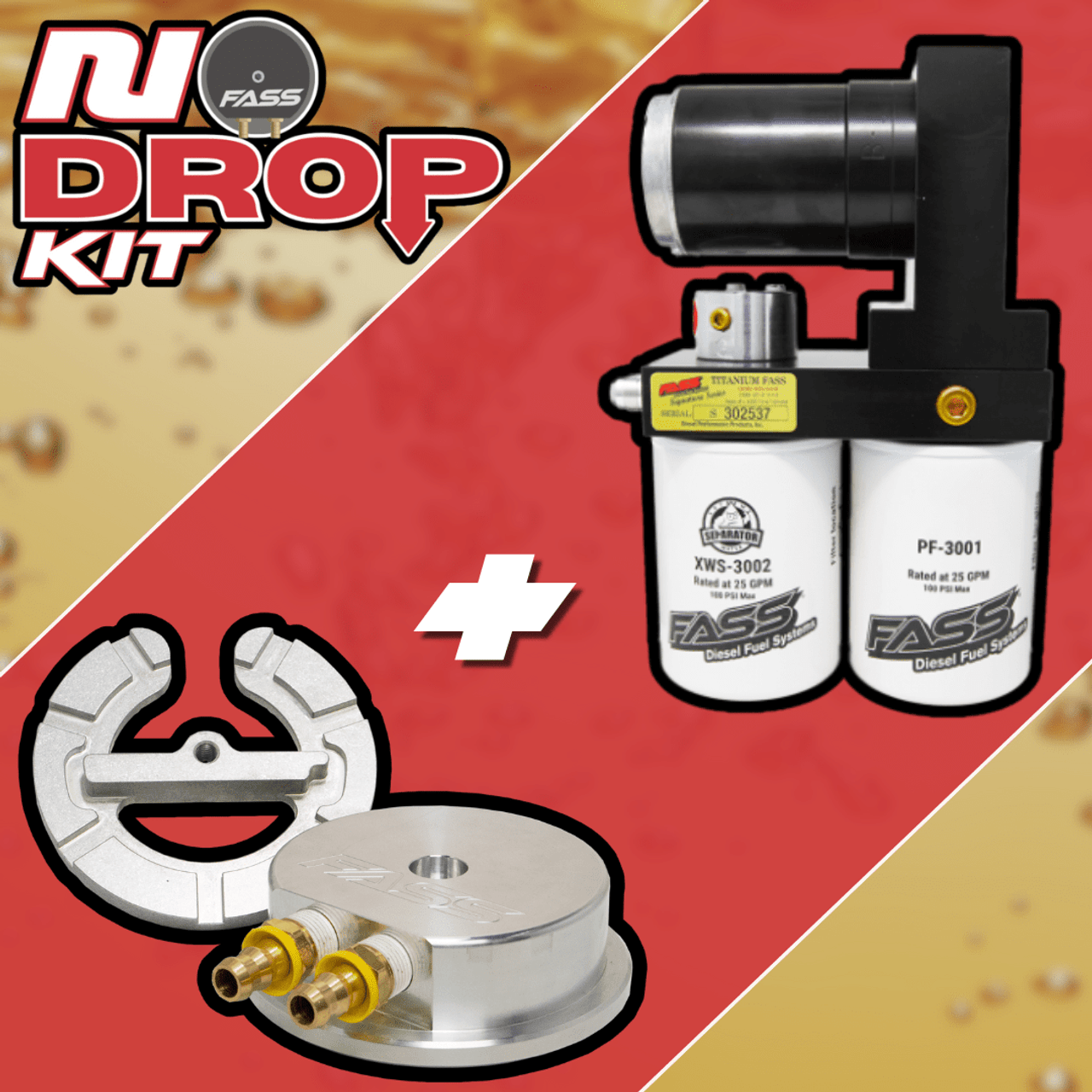

High-flow No-Drop fuel system for serious Cummins builds. The FASS NDTSD07250G bundles a 250GPH Titanium Signature Series lift pump with a FASS fuel sump so you don’t have to drop the tank. It’s engineered for 1000–1200 HP setups on 5.9L & 6.7L Cummins (2005–2018, 2021–2023), delivering quieter operation, stronger fueling under load, and 2-micron absolute filtration that protects injectors and pumps.
Fitment
- Vehicles: 2005–2018 & 2021–2023 RAM 2500/3500 with 5.9L or 6.7L Cummins
- Flow/Pressure: 250 GPH / 16–18 PSI (system)
- Power support: 1000–1200 HP applications
What’s Included
- One (1) Titanium Signature Series Fuel System, 250 GPH (TSD07250G)
- One (1) FASS Fuel Sump Kit (SK5501) – enables no-tank-drop install
- Mounting hardware, plumbing, and brackets for a clean install
Why This No-Drop Kit
- Removes entrained air/vapor; steadies rail pressure and throttle response
- >99% water removal; 2-micron absolute filtration to protect injectors
- Increases fuel lubricity (can extend injection-system life)
- Heater-ready ports for cold climates (heater sold separately)
- No-drop sump makes install faster, simpler, and more affordable
Cross-Reference / Related FASS Items (CPP Diesel only)
- FASS TSD07250G – Titanium Signature Series 250 GPH (Cummins 05–18/21)
- FASS NDTSPD07250G – No-Drop Series Plus 250 GPH (1000–1200 HP)
- FASS NDTSD07165G – No-Drop 165 GPH (600–900 HP)
- FASS NDTSD07290G – No-Drop 290 GPH (1200–1500 HP)
- FASS PF3001 – Particulate Filter (replacement) & FASS FP3000 – Filter Pack
- FASS HK1001 – Electric Heater (Titanium/Titanium Signature)
Installation Instructions
Get the latest official installation manuals here: FASS Installation Manuals (see No-Drop Series / Cummins kits).
FAQs
Do I have to drop the tank to install this?
No. The included sump (SK5501) lets you plumb the pickup without removing the tank, saving time and hassle.
What power level is this kit built for?
It supports roughly 1000–1200 HP builds when properly set up (tuning/injectors/air to match).
Will it help with injector life?
Yes—by removing air/vapor and filtering to 2-micron absolute, it reduces cavitation and wear on high-dollar injectors.
Which filters does it use?
Use PF3001 (suction side) with XWS3002 water separator (or the FP3000 pack).
Specifications for Fass NDTSD07250G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | NDTSD07250G (includes TSD07250G + SK5501) |
| UPC | 850044106394 (TSD07250G component) |
| GTIN | 00850044106394 (GTIN-14 for the above UPC) |
| Flow / Pressure | 250 GPH / ~16–18 PSI |
| Vehicle Fitment | 2005–2018 & 2021–2023 RAM 2500/3500, 5.9L & 6.7L Cummins |
| Shipping Weight (approx.) | ~31.3 lb (pump); kit boxed weight may vary |
| Package Dimensions (approx.) | ~18.4" L × 11.7" H × 14.1" W (component carton) |
| Shipping Method | Free Shipping (Standard Ground) |
| Prop 65 | WARNING: Cancer and Reproductive Harm |
