Product Description

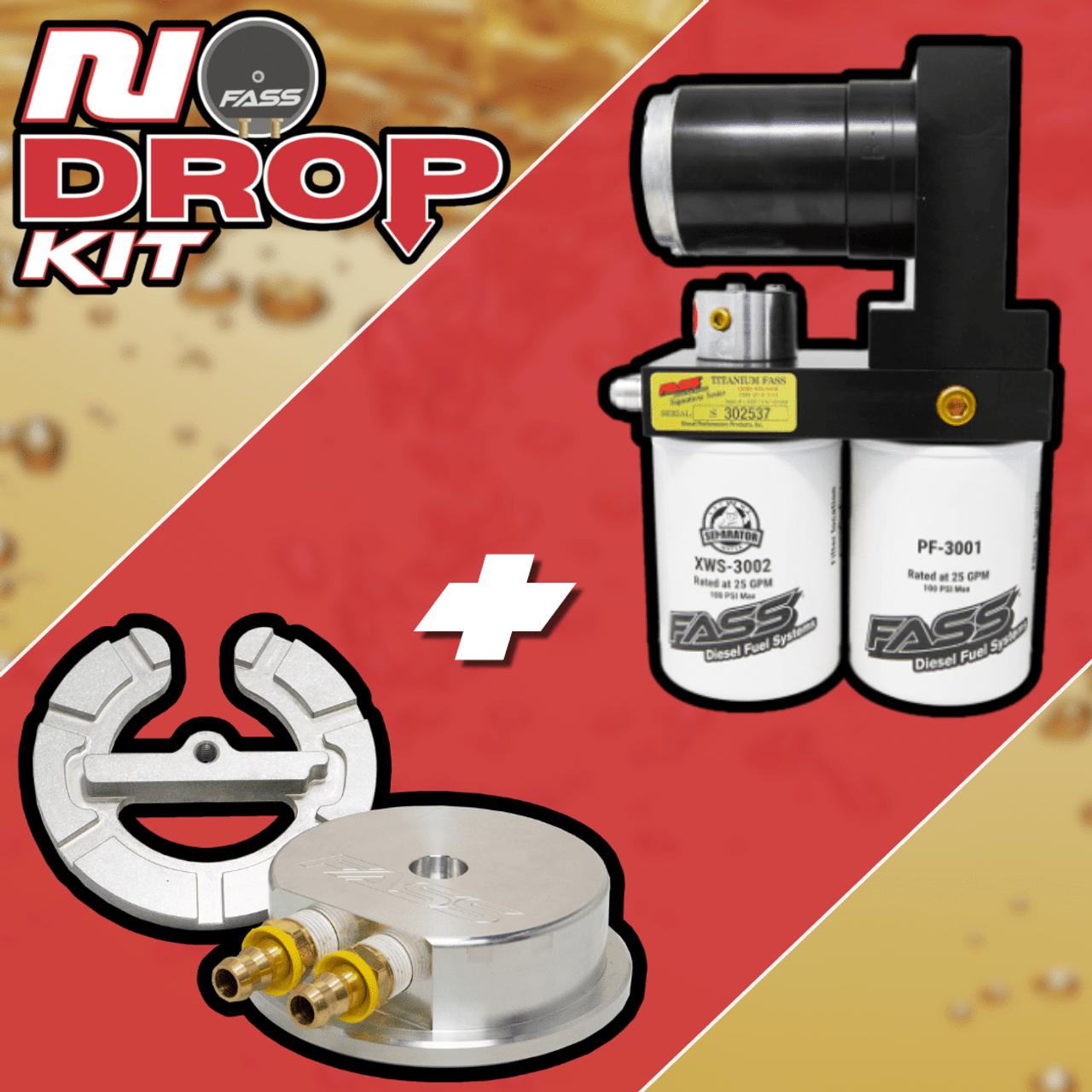

Fast, clean, no-tank-drop install for L5P. The FASS No Drop Series combines a Titanium Signature Series 180F/140 GPH fuel system with the return-style SK5501 sump so you don’t have to pull the tank on your 2020–2023 GM/Chevy 6.6L Duramax. Expect quieter operation, steadier pressure, better filtration, and longer injector life—all in a kit built for stock-to-~500 HP trucks.
Key Benefits
- Increases fuel lubricity (helps extend injector & pump life)
- Removes >99% of water and entrained air/vapor; 2-micron absolute filtration
- Far greater fuel flow than OEM; heater kit compatible for cold climates
- No-drop install with included sump; complete kit with brackets & hardware
What’s Included
- One (1) Titanium Signature Series Diesel Fuel System for 2020–2023 GM/Chevy Duramax 6.6L (TSC15180F140G)
- One (1) FASS Return-Style Fuel Tank Sump Kit (SK5501)
- Mounting brackets, harness, hose & fittings, filters, hardware, instructions
Fitment
- 2020–2023 Chevrolet Silverado 2500HD/3500HD 6.6L Duramax L5P (stock–~500 HP)
- 2020–2023 GMC Sierra 2500HD/3500HD 6.6L Duramax L5P (stock–~500 HP)
Cross-Reference / Related FASS Options (CPP Diesel)
- NDTSC15250F220G — No Drop 220 GPH (500–900 HP)
- NDTSC15290F240G — No Drop 240 GPH (900–1200 HP)
- NDTSPC15180F140G — No Drop PLUS 140 GPH (stock–500 HP)
- TSC15180F140G — Titanium Signature Series 140 GPH (base system)
Installation Instructions
Download the official FASS No-Drop Series manuals here: FASS Installation Manuals.
Specifications for Fass NDTSC15180F140G
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | NDTSC15180F140G |
| Series / Flow | No Drop + Titanium Signature 180F / 140 GPH |
| Fuel Pressure | ~70–75 PSI (system spec) |
| UPC | Not specified by manufacturer for kit; component TSC15180F140G UPC: 850044137312 |
| GTIN | (Component) 0850044137312 |
| Included Sump | SK5501 (return-style) |
| Vehicle Fitment | 2020–2023 Silverado/Sierra 2500/3500 6.6L Duramax L5P (stock–~500 HP) |
| Package Dimensions (W×H×D) | 14.0 × 11.5 × 18.0 in |
| Shipping | Free Shipping; ships from CPP Diesel |
| Prop 65 | California Warning: Cancer and Reproductive Harm — www.P65Warnings.ca.gov |
FAQ
Will this kit support my tuned or lightly modded L5P?The 140 GPH No Drop kit is sized for stock to roughly 500 HP L5P builds. If you plan larger injectors or aggressive tuning, step up to the 220 GPH or 240 GPH systems linked above.
Do I need to drop the tank to install it?
No. The included SK5501 return-style sump allows a clean, single-hole install without removing the tank, which cuts time and hassle dramatically.
What filtration does it provide compared to OEM?
FASS filters to 2-micron absolute and removes air/vapor and >99% of water, which is significantly better than stock. This helps extend injector and pump life.
Is a heater kit available for cold climates?
Yes. Electric fuel heater kits are available for the Titanium Signature Series if you operate regularly in sub-freezing temps.
