FASS NDTSC10165G NO DROP SERIES DIESEL FUEL SYSTEM FOR 2001–2010 GM/CHEVY DURAMAX 6.6L (600–1,000HP)

Product Description

Overview

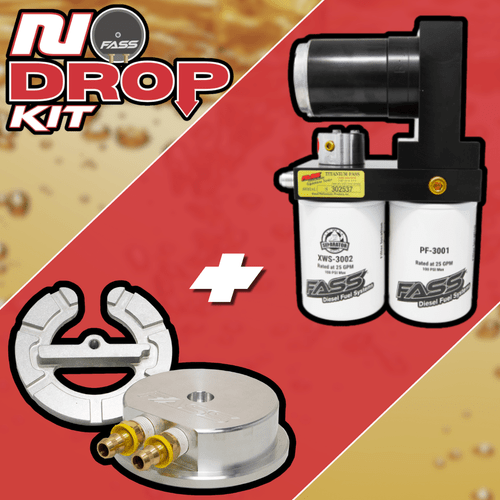

The FASS No Drop Series Diesel Fuel System (NDTSC10165G) is a complete, tank-drop-free upgrade for 2001–2010 GM/Chevy Duramax 6.6L (LB7/LLY/LBZ/LMM) builds in the 600–1,000 HP range. This kit combines the TSC10165G Titanium Signature Series 165 GPH fuel system with the FASS single-bolt sump, eliminating the need to lower the fuel tank and drastically simplifying installation. Enhanced filtration (2µm absolute) helps remove entrained air/vapor and over 99% of water for quieter operation and extended injection component life.

• No-tank-drop installation using included sump
• 165 GPH flow, preset ~8–10 PSI (system dependent)
• Air/vapor separation + 2µm absolute filtration
• Supports 600–1,000 HP Duramax builds (LB7/LLY/LBZ/LMM)
• Designed to outflow OEM and stabilize rail pressure under load

What’s Included

• FASS Titanium Signature Series Fuel System – TSC10165G
• FASS Fuel Sump Kit – SK5501
• Model-specific plumbing, wiring, brackets & hardware

Fitment
2001–2010 Chevrolet/GMC 2500/3500 HD with 6.6L Duramax (LB7, LLY, LBZ, LMM). For higher or lower power goals in the same platform, see Cross-References below.

Recommended Filters & Maintenance
Use the latest XWS/PF filters: XWS3002 Extreme Water Separator (pressure side) and PF3001 Particulate Filter (suction side). For extended capacity: XWS-3002-XL and PF3001XL.

Cross-Reference / Alternatives (FASS on CPP only)

• Same years, stock-600 HP: NDTSC10100G
• Same platform, 900–1,200 HP: NDTSC10250G
• Same platform, 1,200–1,500 HP: NDTSC10290G
• Entry alternative (flow enhancer): DMAX7001

Installation Instructions
FASS publishes current installation PDFs here: FASS Manuals. Select Duramax 2001–2010 and Titanium Signature Series / No-Drop kit to download the latest instructions.

FAQs

Do I have to drop the tank?
No. The included SK5501 single-bolt sump allows a no-tank-drop install for faster, cleaner fitment.

Which filters should I run with this kit?
Run the updated XWS3002 on the pressure side and PF3001 on the suction side. Extended-length options: XWS-3002-XL and PF3001XL.

What horsepower range is it designed for?
600–1,000 HP (Duramax LB7/LLY/LBZ/LMM) when paired with appropriate fueling and tuning.

Will it support future upgrades?
Yes. If you plan big power later, consider the higher-flow No-Drop kits linked above for additional headroom.

Specifications for Fass NDTSC10165G
