Product Description

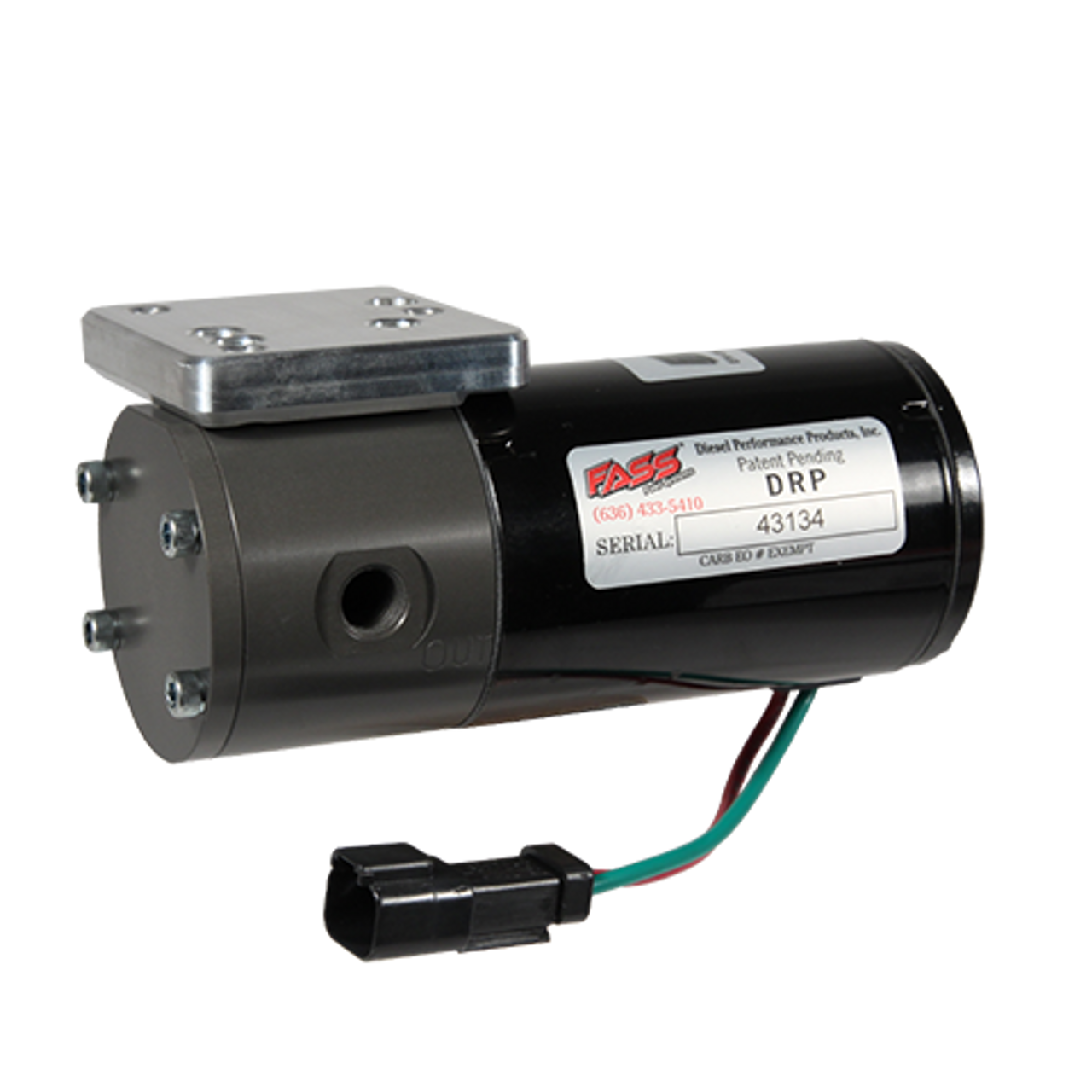

Direct-fit replacement for the weak factory lift pump on 1998.5–2002 Dodge Ram 2500/3500 5.9L Cummins (VP44). The FASS DRP02 delivers consistent fuel supply and pressure for better reliability, easier starts, and longer VP44 life. Includes hardware for a clean, factory-location install, and pairs perfectly with the RK02 relocation kit to shorten suction length and improve pump longevity.
Key Benefits
- Larger, more powerful motor vs. stock
- Direct replacement mounts to factory points
- Supports proper VP44 supply pressure
- All installation hardware included
- Works with FASS RK02 Relocation Kit for best results
Fitment
- 1998.5–2002 Dodge Ram 2500/3500, 5.9L Cummins 24-valve (VP44 injection pump)
- Cab-and-chassis trucks may require minor modifications
- Use with OEM block-mounted pump configuration; in-tank retrofit trucks should add a suction tube kit
Recommended FASS Cross-References (CPP Diesel)
- FASS RK02 Relocation Kit (98.5–02) — moves DRP02 closer to tank for better priming and reduced aeration.
- FASS STK1002 Suction Tube Kit — recommended when drawing from tank module or after in-tank conversions.
- FASS WH-1006-3R Wiring Harness — robust relay harness upgrade to ensure proper voltage to your FASS system.
- FASS DRP04 (03–04) — the next-gen VP44 replacement pump if you’re working on 2003–2004 trucks.
Installation Instructions
Download the latest FASS DRP Series instructions from the FASS manuals page:
fassride.com/manuals
FAQ
Will the DRP02 improve VP44 life?
Yes. Stable inlet pressure and reduced aeration help protect the VP44 from low-pressure damage and cavitation.
Do I need the RK02 relocation kit?
Highly recommended. Relocating the pump rearward shortens the suction side so the pump pushes under pressure instead of pulling under vacuum, which improves priming and longevity.
What if my truck has an in-tank pump retrofit?
Add a FASS STK1002 suction tube to ensure reliable supply to the DRP02.
Is wiring included?
Core wiring is included for factory-location installs. For higher current capacity and clean add-ons, use the FASS WH-1006-3R relay harness.
Specifications for Fass DRP02
| Attribute | Value |
|---|---|
| Brand | FASS Fuel Systems |
| Part Number | DRP02 |
| UPC | 850044106752 |
| GTIN | 0850044106752 (GTIN-12) |
| Flow / Pressure | Up to ~110 GPH @ 16–18 PSI (stock applications) |
| Vehicle Fitment | 1998.5–2002 Dodge Ram 2500/3500, 5.9L Cummins 24V (VP44) |
| Package Dimensions | 7.75" × 6.5" × 4.75" |
| Shipping Weight | ~5 lb |
| Shipping Method | Ground; calculated at checkout |
| Prop 65 | Yes — www.P65Warnings.ca.gov |
