Product Description

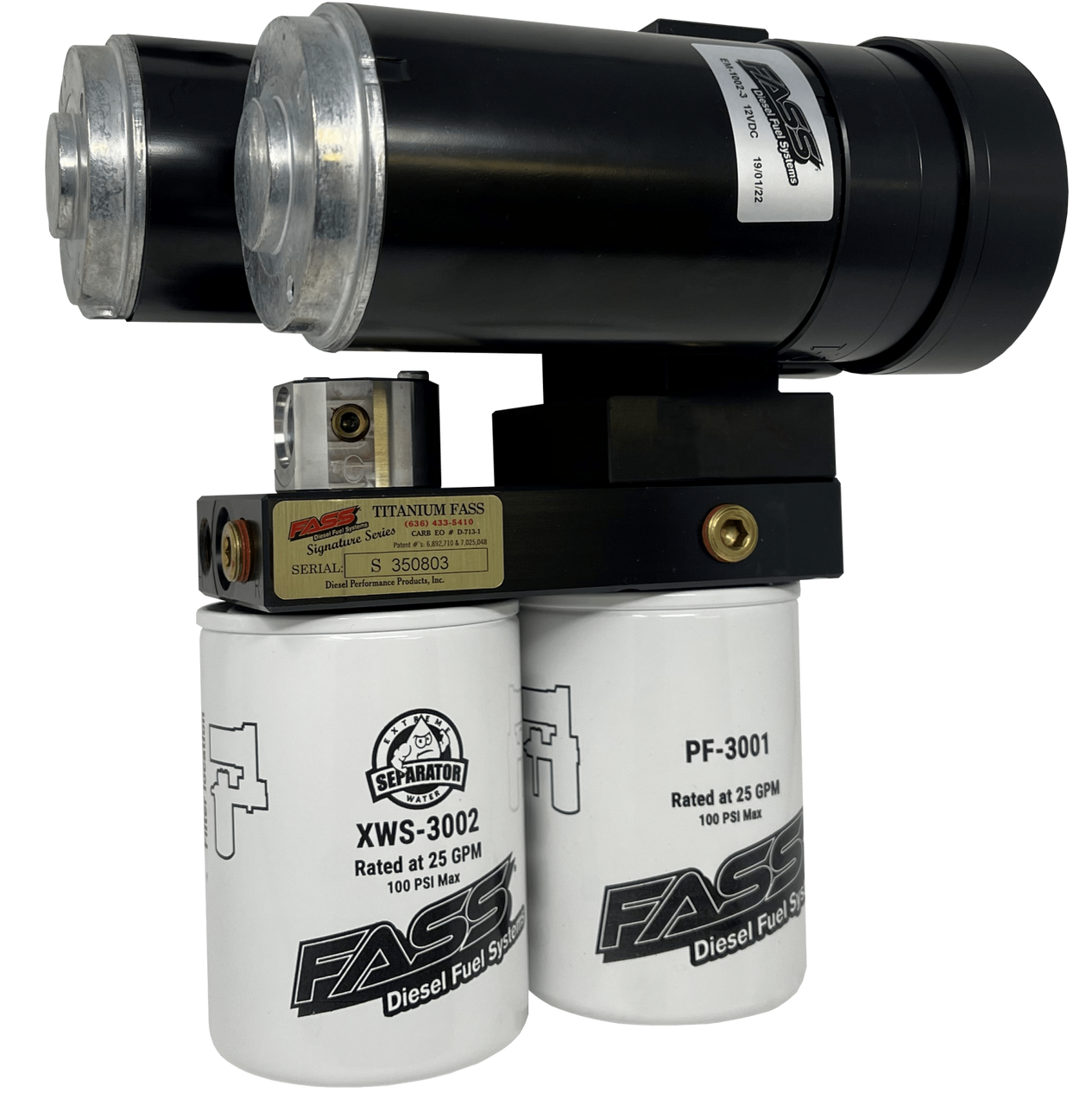

THE MOST AGGRESSIVE FASS COMPETITION SYSTEM—540GPH @ UP TO 70 PSI. The FASS COMP540G Competition Series is purpose-built for sled pulling, dyno, and drag applications that demand massive, stable fuel delivery. It pairs extreme flow with elite filtration—removing water, air, and particulates down to 2 microns—to protect hardware at the ragged edge. Pressure is user-adjustable (0–70 PSI) via the High Flow Adjustable Regulator for precise fueling under boost. (Universal mounting bracket included; lines/wiring/fittings not included.)
- Flow: 540+ GPH free flow; maintains high volume through 10–70 PSI
- Pressure: Adjustable 0–70 PSI (High Flow Adjustable Regulator)
- Filtration: Extreme Water Separator, 2-micron absolute (3rd-party tested)
- Ports: -10 AN inlet, outlet, and regulator; 1/8" NPT gauge port
- Electrical: Each motor up to ~10 A (recommend 30 A fuse & 10-ga wiring per motor)
- Bracket: Universal mounting bracket included
Fitment & Use
Application: Universal/competition diesel fuel system for high-performance builds (race, sled pull, dyno). Not supplied with vehicle-specific plumbing or wiring. Designed to replace dual systems and reduce weight while delivering stable fuel supply for extreme HP builds.
Recommended Cross-Reference / Complementary FASS Items (CPP Diesel)
- FASS COMP360G Competition Series 360GPH (100 PSI MAX)
- FASS COMP330G Competition Series 330GPH (30 PSI MAX)
- FASS WH-1006-3R Wiring Harness (pair recommended for COMP Series dual motors)
- FASS XWS1002 Extreme Water Separator (2-micron)
Installation Instructions
Download the official COMP540G installation guide (PDF): COMP540G Installation Guide. More FASS manuals are available here: FASS Manuals.
FAQ
Q: Is the COMP540G vehicle-specific?
A: No. It’s a universal competition system. You’ll build or source your own -12 suction, -8/-10 engine feed, and return lines, plus wiring. Use the WH-1006-3R harnesses if you prefer a plug-and-play wiring solution.
Q: How much electrical current does it draw?
A: Each motor can draw up to ~10 amps. Use a 30A fuse and 10-gauge wiring per motor as recommended.
Q: What filtration does it provide?
A: Extreme Water Separator with 2-micron absolute media. It removes >99% of water (3rd-party tested) and traps particulates to protect injectors at high load.
Q: What pressure should I run?
A: The integrated High Flow Adjustable Regulator allows 0–70 PSI. Set pressure based on your fuel system/injection pump requirements and monitor with a gauge via the 1/8" NPT port.
Q: Is it easier to prime than a mechanical gear pump?
A: Yes—this unit is easier to prime than a typical mechanical gear system and is designed specifically for extreme-duty competition use.
Specifications for Fass COMP540G
| Spec | Value |
|---|---|
| Brand / Series | FASS — Competition Series |
| Part Number | COMP540G |
| Flow / Pressure | 540 GPH; 0–70 PSI adjustable |
| Filtration | Extreme Water Separator, 2-micron absolute |
| UPC | 850044106080 |
| GTIN | 0850044106080 (GTIN-12) |
| SKU | FASCOMP540G |
| Package Dimensions | 18.00" L × 14.00" W × 12.00" H (approx.) |
| Shipping | Free Shipping (continental U.S.) |
| Regulator / Ports | High Flow Adjustable Regulator; -10 AN inlet/outlet/regulator; 1/8" NPT gauge port |
| Electrical | Dual motors; ~10 A per motor; use 30A fuse & 10-ga wiring per motor |
| Prop 65 | Warning: Cancer and Reproductive Harm — www.P65Warnings.ca.gov |
