Product Description

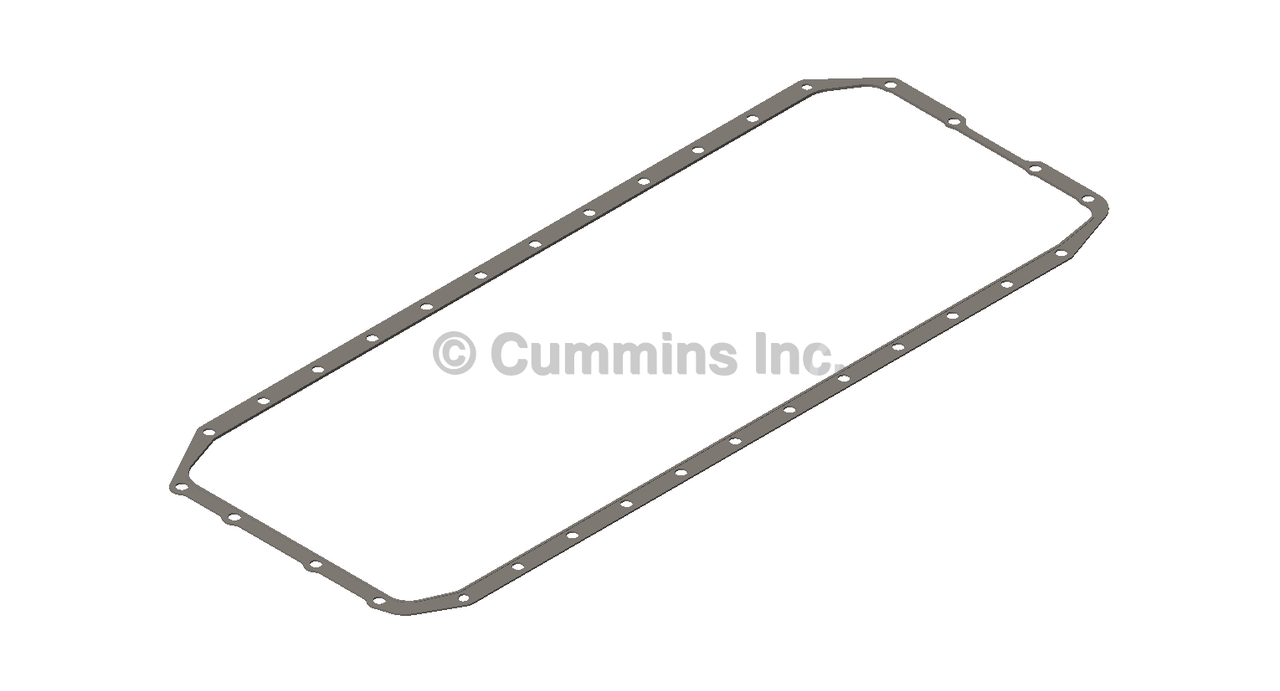

Cummins 5522189 — Engine Oil Pan Gasket
MPN: 5522189 | Also Known As: oil pan gasket | Supersedes: 5394189
Why This Part
- ✓ Genuine OE gasket engineered for the 6.7L ISB sealing surface.
- ✓ Direct-fit for 2013–2025 Ram 6.7L applications (verify by VIN/ESN).
- ✓ Helps prevent oil leaks & pressure loss after pan service.
- ✓ Built to Cummins OEM specs for durability and long service life.
Quick Specs
| Type | Engine oil pan gasket |
|---|---|
| OE Part # | 5522189 (supersedes 5394189) |
| Qty Required | 1 per engine (sold individually) |
| Primary Use | EPA13+ ISB/QSB 6.7L platforms (confirm by ESN for industrial) |
Verified Fitment (Automotive)
| Year Range | Engine | Chassis |
|---|---|---|
| 2013–2025 | Ram 6.7L ISB (24V Common-Rail) | Ram 2500/3500/4500/5500 |
Notes: Cummins documents this gasket as used primarily on EPA13+ ISB/QSB 6.7 platforms. Always confirm by VIN (automotive) or ESN (industrial), especially for late-model year changes.
Often Paired With
- Oil Pickup Tube Gasket: 3949562
- Front Main Seal (with wear sleeve): 3802820
- Rear Main Seal (with repair sleeve): 3926126
- Fresh oil & filter after re-seal
What’s In The Box
- (1) Genuine Cummins Engine Oil Pan Gasket (5522189)
- Bolts/sealants sold separately.
Install Tips
- Clean mating surfaces thoroughly; remove old RTV.
- Use a light RTV dab only where factory manual specifies (e.g., joint corners); avoid excess.
- Tighten pan fasteners in a crisscross pattern to factory torque; recheck for seepage after heat cycle.
FAQ
WILL THIS FIT MY RAM 6.7L?Yes—5522189 is the OE pan gasket for most 2013–2025 6.7L Ram 2500–5500 applications. Confirm by VIN for best results.
DOES THIS INCLUDE BOLTS OR RTV?No—this listing is the gasket only. Reuse or replace hardware as needed and apply RTV only where the service manual calls for it.
IS THIS A GENUINE CUMMINS PART?Yes—OE Cummins 5522189 (supersedes 5394189) for proper fit and sealing.
DO I NEED TO DROP THE OIL PAN TO REPLACE THIS?Yes—the pan must be removed, surfaces cleaned, and the gasket installed per factory procedure and torque specs.
WILL IT WORK ON CAB & CHASSIS (4500/5500)?Yes—fits 6.7L Ram 2500/3500/4500/5500; verify by VIN for model-year variations.
