Product Description

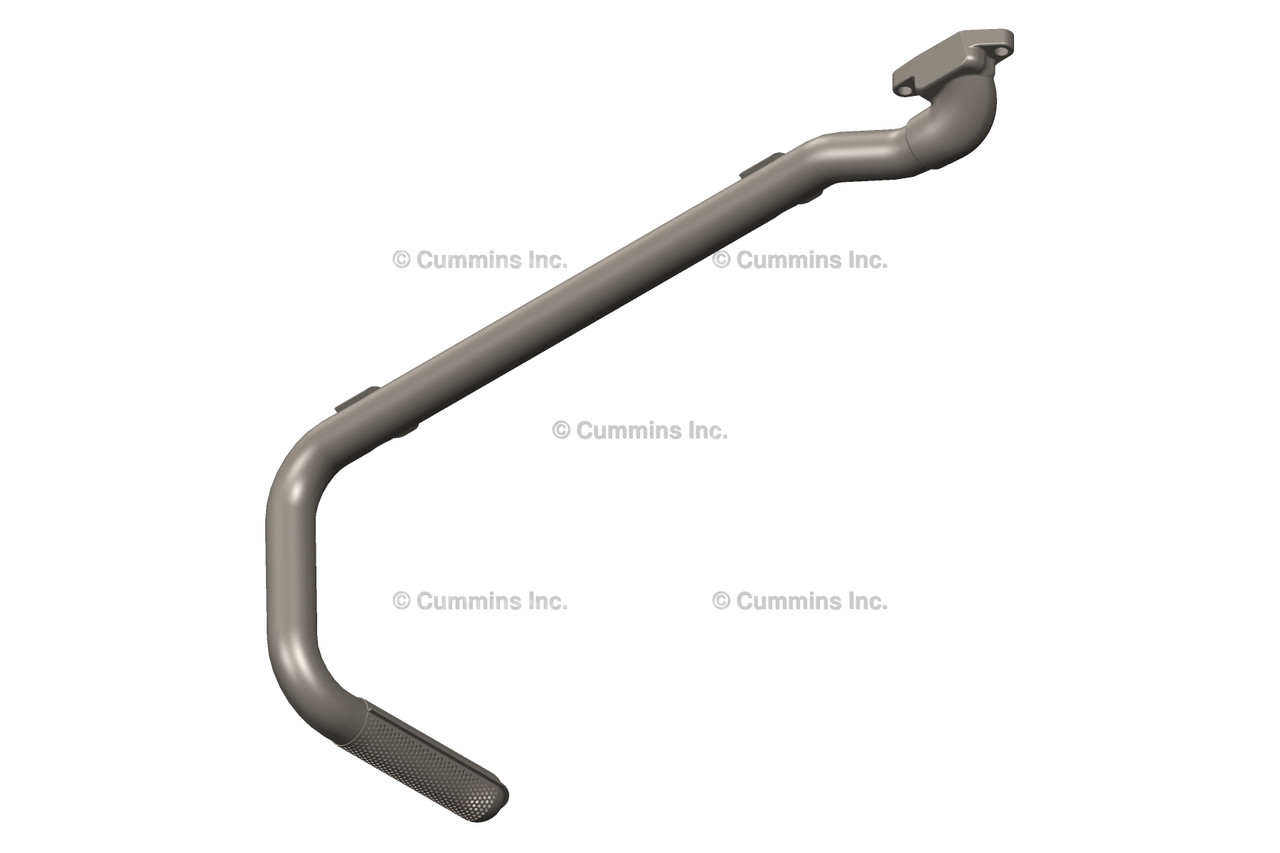

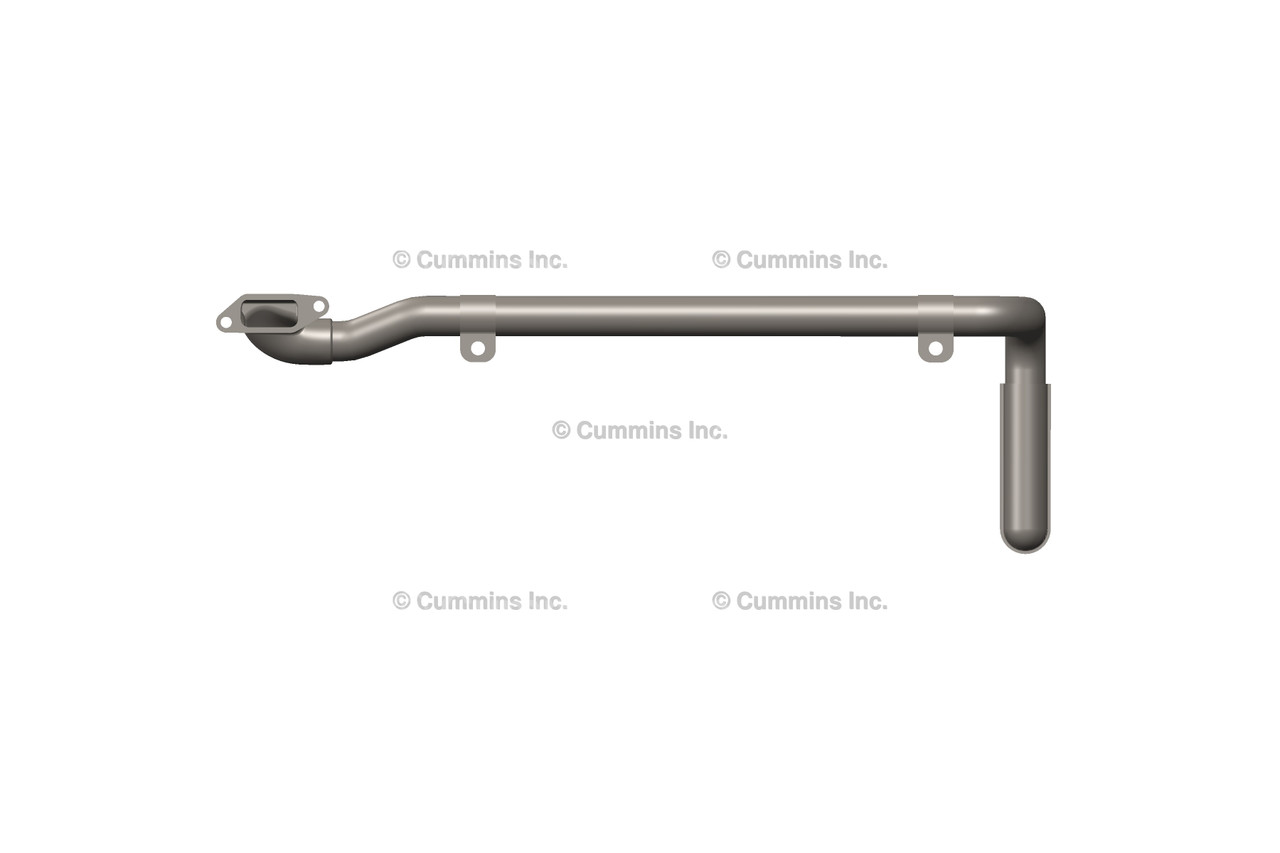

CUMMINS 3949692 OEM ENGINE OIL PICKUP TUBE (OIL SUCTION CONNECTION) – ISB 5.9L (2003–2007)
The Cummins 3949692 OEM engine oil pickup tube (oil suction connection) is the genuine Cummins part that draws oil from the pan to the pump on 2003–2007 Ram 2500/3500 trucks with the 5.9L ISB. When you are rebuilding the bottom end, resealing the oil pan, or chasing low oil pressure, this OE-geometry pickup tube restores the correct pickup height, pan clearance, and oil flow your 5.9L Cummins needs for long life.
Unlike generic aftermarket tubes that can sit too high in the sump or leak air at the seal, the genuine Cummins 3949692 pickup matches OE bend geometry and mounting points. That means stable oil pressure under towing, racing, and high-mileage daily driving. Cummins also catalogs this number as an oil suction connection used on select EPA13 ISB/QSB applications, so you get a robust design proven in demanding on- and off-highway service.
Key Features & Benefits
- Genuine Cummins 3949692 oil pickup tube – not an aftermarket reproduction.
- Correct OE bend, screen, and mounting geometry for 2003–2007 5.9L ISB pan and pump layouts.
- Helps prevent aeration and low oil pressure that can destroy bearings and turbochargers.
- Built from durable steel with a welded pickup screen for long service life.
- Ideal any time the oil pan is removed, during in-frame rebuilds, or when repairing oil system damage.
Verified Fitment – Automotive
Engine Family: 5.9L ISB common-rail Cummins (24-valve)
Primary Automotive Fitment:
- 2003–2007 Dodge Ram 2500 5.9L Cummins (ISB common-rail)
- 2003–2007 Dodge Ram 3500 5.9L Cummins (ISB common-rail)
Location: Oil pan sump to engine oil pump inlet
Quantity Required: 1 per engine
Outside of the 2003–2007 Ram applications, Cummins lists 3949692 as an oil suction connection for certain ISB/QSB 6.7L engines in industrial and EPA13 applications. Always verify by ESN (engine serial number) for non-Ram or equipment installs.
Cross-Reference (Identification Only)
- Cummins: 3949692 (primary)
- Mopar: 5086857AA, 05086857AA (oil pickup tube for select 2003–2012 Cummins-equipped Ram, mostly manual trans applications)
Cross-reference numbers are for identification only. Always match by VIN/ESN, pan design, and pump configuration before ordering.
Related Genuine Cummins Components (Ram 5.9L)
Round out your bottom-end oil system service with these Cummins OEM parts from CPP Diesel:
- CUMMINS 3949769 OEM ENGINE OIL PAN – 5.9L CUMMINS (2003–2007)
- CUMMINS 3957070 OEM ENGINE OIL DIPSTICK TUBE – ISB 5.9L (2003–2007)
- CUMMINS 3928455 OEM ENGINE OIL PICKUP TUBE (OIL SUCTION CONNECTION) – 5.9L 12V/24V (1994–2002) – ideal if you are working on an earlier 12V or 24V 5.9L.
Installation Notes
- Drop the oil pan and thoroughly clean out any sludge, metal, or gasket debris.
- Always install a new pickup tube O-ring/seal (match by ESN or OE catalog).
- Inspect the oil pump inlet and mounting surface for scoring or damage.
- Verify pickup screen clearance to the pan per Cummins service information.
- Torque all fasteners to the correct Cummins torque spec and prime the lubrication system before first start.
Specifications for cummins 3949692
| Attribute | Detail |
|---|---|
| Brand | Cummins (Genuine OEM) |
| Part Number | 3949692 |
| Component Type | Engine oil pickup tube / oil suction connection |
| Engine Compatibility | 2003–2007 5.9L ISB Cummins (Ram 2500/3500); selected ISB/QSB industrial/EPA13 applications (verify by ESN) |
| UPC | Not published by Cummins |
| GTIN | Not published by Cummins |
| Shipping Weight | Approx. 7 lb (boxed) |
| Shipping Dimensions | Approx. 30.5 × 10.5 × 9.25 in |
| Shipping Method | Ships via standard ground; qualifies for CPP Diesel free shipping on most orders |
| Cross Reference | Mopar 5086857AA, 05086857AA (ID only – confirm by VIN/ESN) |
| E-Codes | Not applicable – lubrication component |
| Prop 65 | This product may contain chemicals known to the State of California to cause cancer or reproductive harm. See www.P65Warnings.ca.gov. |
FAQ
Yes. This is the correct OEM oil pickup / oil suction connection for most 2003–2007 Ram 2500/3500 trucks equipped with the 5.9L ISB common-rail engine. For absolute accuracy, always confirm using your VIN and Cummins ESN, especially on swapped or mixed-year trucks.
DOES THIS PART ALSO FIT 6.7L OR INDUSTRIAL CUMMINS APPLICATIONS?
Cummins catalogs 3949692 as an oil suction connection used primarily on certain EPA13 ISB/QSB engines in addition to the Ram 5.9L ISB coverage. Industrial and equipment applications vary widely, so you should always confirm by ESN and compare the pan and pump configuration before ordering.
DOES THE CUMMINS 3949692 PICKUP TUBE COME WITH THE O-RING OR SEALS?
No. The pickup tube is typically supplied by Cummins without the O-ring or additional sealing hardware. Always install a new OE-quality O-ring or seal when replacing the tube to prevent air ingestion and oil aeration.
DO I HAVE TO DROP THE OIL PAN TO REPLACE THIS PICKUP TUBE?
In nearly all Ram 5.9L ISB applications, you must remove the oil pan to access and replace the pickup tube. This is an excellent opportunity to clean the pan, inspect for metal or sludge, and check bearing and crank condition before reassembly.
IS THIS A GENUINE CUMMINS PART OR AN AFTERMARKET REPLACEMENT?
This listing is for a 100% genuine Cummins OEM 3949692 oil suction connection. CPP Diesel does not substitute aftermarket components on Cummins genuine parts listings, so you get the exact fit and performance Cummins engineered for your engine.
