Product Description

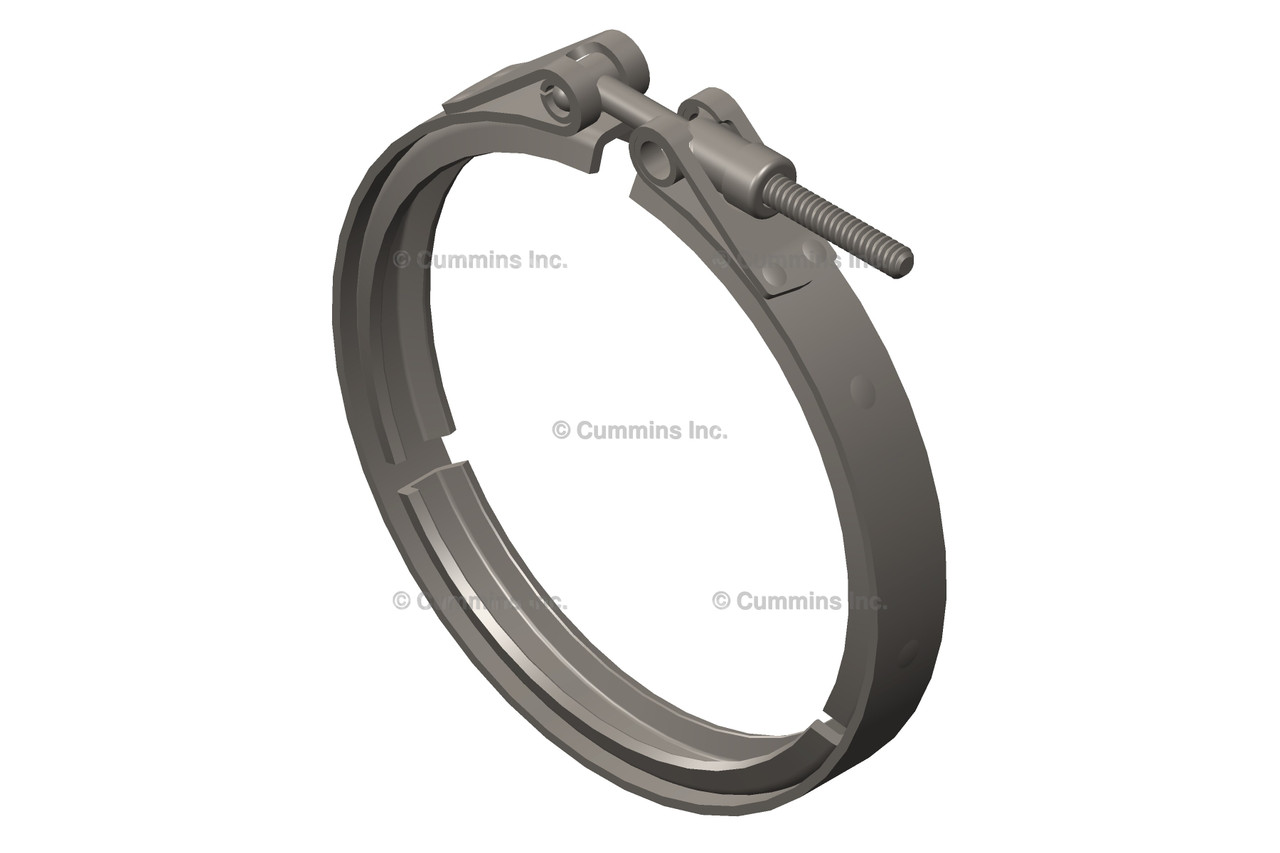

Cummins 3595658 — Turbocharger V-Band Clamp (Center/Bearing Housing ↔ Turbine Housing)
MPN: 3595658 | Also Known As: center section to turbine clamp, bearing housing clamp, HE341/HE351CW center cartridge clamp | Notes: Industrial use on Tier 3 3.9L B-series; verify by ESN.
Why This Part
- ✓ OE stainless clamp that secures the turbo center/bearing housing to the turbine housing.
- ✓ Direct-fit for HE341/HE351CW turbos used on 2003–2007 Ram 5.9L.
- ✓ Restores leak-free seal and proper turbo alignment after service.
- ✓ Durable OE construction for heat/vibration resistance.
Quick Specs
| Type | Turbocharger V-band clamp (center/bearing housing ↔ turbine housing) |
|---|---|
| OE Part # | 3595658 |
| Applications | HE341, HE351CW (’03–’07 Ram 5.9L); select Tier 3 3.9L B-series industrial |
| Qty Required | 1 per turbo (sold individually) |
Verified Fitment (Automotive)
| Year Range | Engine / Turbo | Chassis |
|---|---|---|
| 2003–2007 | 5.9L ISB (HE341 / HE351CW) | Ram 2500/3500 |
Industrial/Off-Highway: Used primarily on Tier 3 3.9L B-series (ISB/QSB). Always verify by ESN and turbo model.
Often Paired With
- V-band Nut: 3595659 (some catalogs also reference 4943908; verify by turbo hardware)
- Outlet/Elbow Clamp (different clamp): Cummins 3535399 (HE351 turbine housing → cast elbow/downpipe)
- Inspect sealing faces; clean and torque per service manual after alignment
What’s In The Box
- (1) Genuine Cummins Turbocharger V-Band Clamp (3595658)
- Nut/hardware sold separately (see “Often Paired With”).
Install Tips
- Dry-fit and align housings; lightly snug, clock turbo as needed, then torque evenly.
- Recheck torque after heat-cycle; replace any stretched or damaged hardware.
- Confirm no exhaust leaks on warm-up; monitor boost/EGT on test drive.
FAQ
WILL THIS FIT MY 2003–2007 5.9L CUMMINS RAM?Yes—this clamp is for the HE341/HE351CW turbo center/bearing housing to turbine housing connection on 2003–2007 5.9L ISB Rams (verify by VIN/ESN and turbo tag).
IS THIS THE CENTER/BEARING HOUSING TO TURBINE CLAMP?Correct—this is not the downpipe/elbow clamp. For the elbow/downpipe connection on HE351, use clamp 3535399.
DOES IT INCLUDE THE NUT?No—the clamp is sold by itself. The matching nut is typically part number 3595659 (some catalogs list 4943908). Check your turbo hardware before ordering.
WILL THIS WORK WITH HE341 AND HE351CW?Yes—fits both HE341 (early ’03–’04) and HE351CW (’04.5–’07) center-to-turbine interface. Always confirm by part number and turbo model.
IS THIS A GENUINE CUMMINS PART?Yes—OE Cummins 3595658 for proper fit and durability.
