Product Description

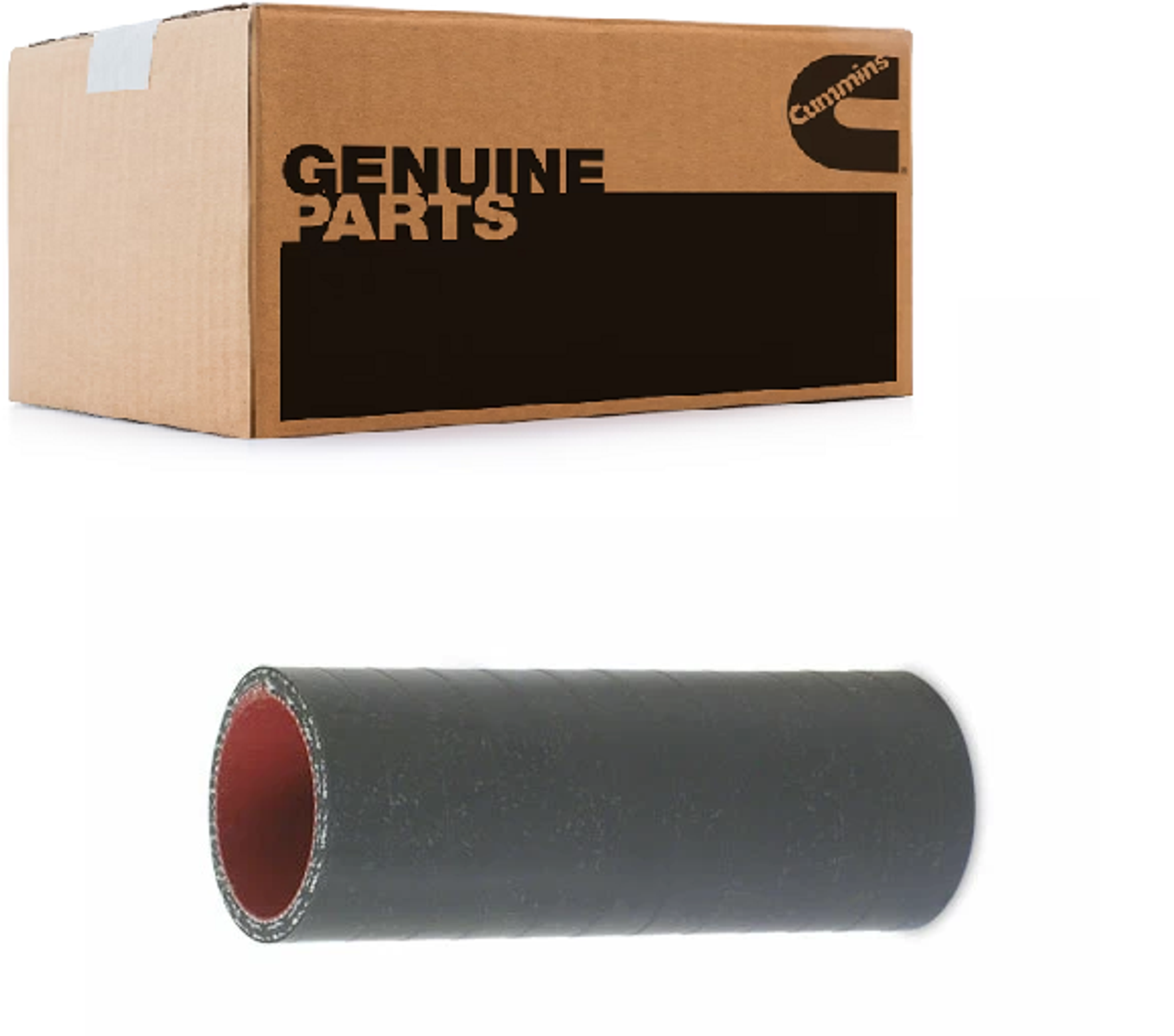

CUMMINS 3286499 OEM TURBO OIL DRAIN HOSE – 5.9L CUMMINS (1989–2004)
The genuine CUMMINS 3286499 OEM turbo oil drain hose is the correct factory replacement for the return-side turbo lubrication circuit on 1989–2004 5.9L Cummins engines. This hose connects the rigid turbo drain tube to the crankcase drain port, allowing hot oil to flow freely back into the engine. A cracked, hardened, or leaking drain hose can cause oil consumption, driveway drips, burned oil smells, and premature turbo bearing wear. Installing a real OEM Cummins hose ensures proper heat resistance, fitment, and long-term sealing.
Compatible with VE-pump, P7100 (P-pump), VP44, and early common rail applications, the 3286499 hose features reinforced, oil-resistant rubber engineered specifically for high-temperature turbocharger drain conditions. For best results, pair this hose with new clamps and inspect both the upper drain tube and lower block elbow for wear or distortion.
Key Features
- Genuine Cummins OEM turbo oil drain hose.
- Direct-fit replacement for 1989–2004 5.9L Cummins turbocharged engines.
- Heat- and oil-resistant construction engineered for turbocharger return oil temperatures.
- Prevents leaks and ensures proper oil flow back to the crankcase.
- Compatible with VE, P7100, VP44, and early common rail turbos.
Fitment Details
- Engine: 5.9L Cummins (6BT / ISB)
- Years: 1989–2004
- Fuel Systems: VE pump (1989–1993), P7100 (1994–1998), VP44 (1998.5–2002), Early Common Rail (2003–2004)
- Turbo Types: HX35 / HY35 / HE341 / HE351 (OE-style)
Cross-Reference & Companion Cummins Parts
CPP Diesel offers the supporting Cummins hardware needed to restore your entire turbo oil circuit:
- CUMMINS 3903744 TURBO OIL DRAIN ELBOW – connects the drain hose to the engine block.
- CUMMINS 3912747 TURBO OIL FEED LINE – 12V 5.9L
- CUMMINS 3919687 TURBO OIL INLET FITTING
- VIEW MORE GENUINE CUMMINS PARTS
Common Cummins cross-references: 3286499, 3286500 (hose supersession), 3908515 (related hardware – verify by VIN/ESN).
Installation Notes
- Always replace old clamps when installing the new hose.
- Verify the upper drain tube is not cracked or distorted.
- Ensure the lower block elbow is fully seated and leak-free.
- Do not overtighten clamps—this can deform the hose.
Specifications for cummins 3286499
| Attribute | Value |
|---|---|
| Brand | Cummins (Genuine OEM) |
| Cummins Part Number | 3286499 |
| Alternate Part Numbers | 3286500 (superseded hose), verify by VIN/ESN |
| Function | Turbocharger oil return (drain) hose |
| Engine Compatibility | 5.9L Cummins 6BT / ISB (1989–2004) |
| Vehicle Fitment | Ram 2500 / 3500 (1989–2004) |
| UPC | 190910284809 |
| GTIN | 190910284809 |
| Shipping Weight | Approx. 0.20 lbs |
| Shipping Method | Standard ground; expedited shipping available |
| E-Codes / Emissions | Non-emissions-critical; lubrication circuit component |
| Prop 65 Warning | WARNING: May expose you to chemicals known to the State of California to cause cancer and reproductive harm. Visit www.P65Warnings.ca.gov. |
| Country of Origin | As labeled by Cummins (varies by batch) |
Frequently Asked Questions
WILL THIS FIT MY 5.9L CUMMINS?
Yes. CUMMINS 3286499 fits 1989–2004 5.9L Cummins engines, covering VE, P7100, VP44, and early common rail applications. Always verify via VIN/ESN.
SHOULD I REPLACE THE DRAIN ELBOW TOO?
If the drain elbow is leaking or corroded, replace it with the CUMMINS 3903744 elbow for a complete, leak-free repair.
CAN A BAD DRAIN HOSE CAUSE TURBO FAILURE?
Yes. A collapsed or restricted drain hose can restrict oil return flow, causing turbo bearing overheating and oil leaks.
IS THIS A GENUINE CUMMINS PART?
Yes — CPP Diesel sells only authentic Cummins OEM components for guaranteed reliability.
