Product Description

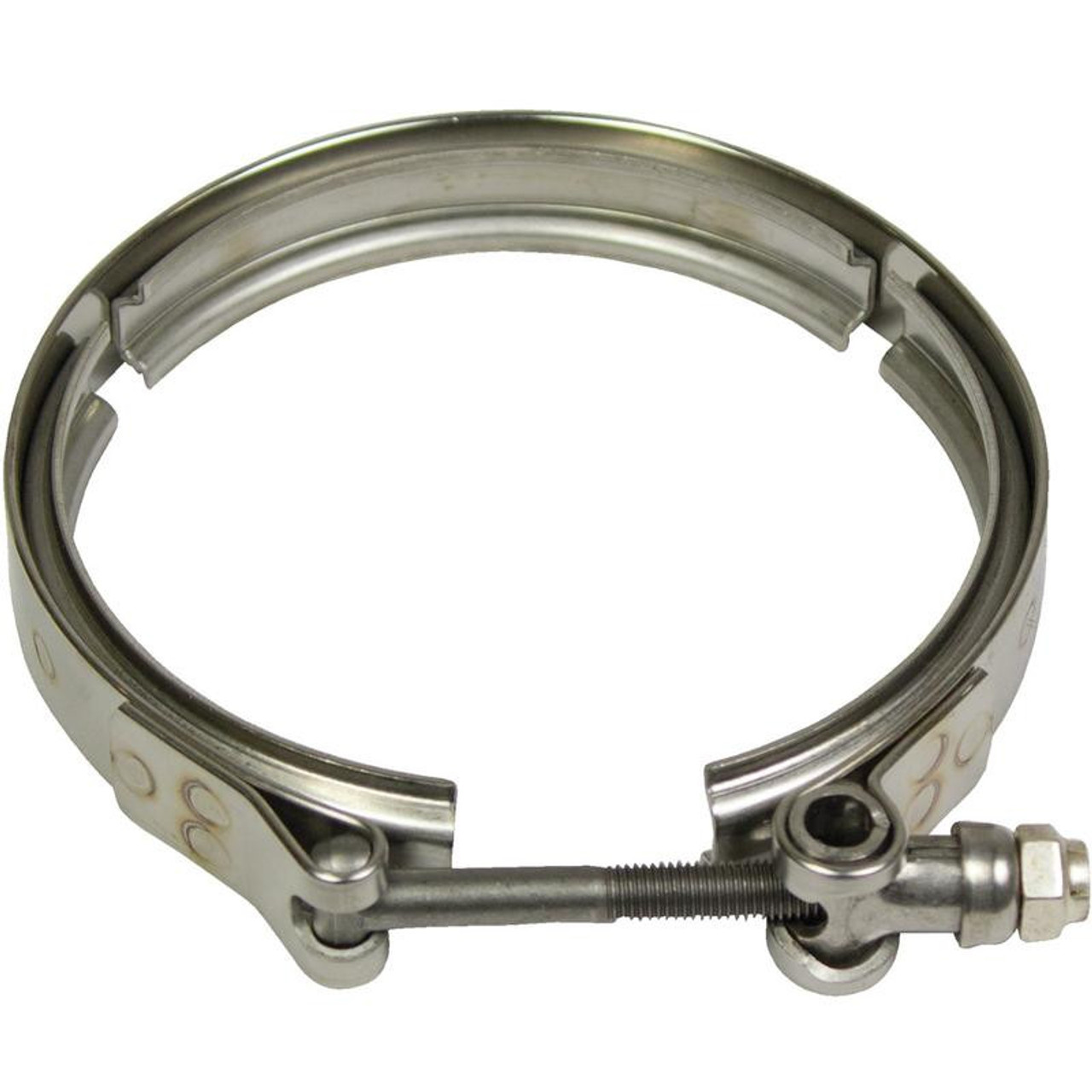

CPP 132681 — S400 Center Section to Exhaust Housing V-Band Clamp
Keep your BorgWarner S400 sealed and secure under heat and boost. The CPP 132681 V-band clamp locks the center section (CHRA/backplate) to the turbine (exhaust) housing on S400 builds, from S464 street trucks to S475/S480 competition setups.
Key Features
- Application: BorgWarner S400 family (S400SX / S400SX3 / S467 / S472 / S475 / S480 and similar)
- Function: Secures CHRA/backplate to turbine housing for a leak-free, serviceable joint
- Construction: Heavy-duty clamp band and T-bolt with prevailing-torque nut
- Finish: Corrosion-resistant for long service life
Verify your housing style and seating surfaces. Clean mating flanges and torque evenly for best results.
What’s Included
- CPP 132681 S400 Center Section to Turbine Housing V-Band Clamp
Popular Companion Parts
- Fleece FPE-34856 S300/S400 Turbo Stud Kit
- CPP -12AN Oil Drain Kit (S300/S400)
- CPP S400 4.0" Compressor Discharge Elbow
Where It Fits
Designed for BorgWarner S400-series turbos used on Cummins, Powerstroke, and Duramax performance builds. Works in single and compound configurations when using an S400 low-pressure charger.
Shop Turbo Sections by Vehicle
Dodge/Ram Cummins
- CUMMINS MAIN HUB (Home tab)
- 1989–1993 5.9L (VE) — Turbocharger
- 1998.5–2002 5.9L (VP44) — Turbocharger
- 2003–2007 5.9L CR — Turbo/Supercharger
- 2007.5–2012 6.7L — Turbocharger
- 2013–2018 6.7L — Turbocharger
- 2019–2024 6.7L — Turbos & Accessories
Ford Powerstroke
GM Duramax
FAQ
Is CPP 132681 compatible with all S400 variants?
It’s designed for standard S400 CHRA-to-turbine housing V-band interfaces (S400SX/SX3, common S46x/S47x/S48x builds). If you’re running a non-standard or custom housing, contact us.
Will this clamp fix an exhaust leak?
It will secure a proper seal, but leaks caused by warped flanges, damaged seats, or poor alignment require inspection and repair before clamping.
What torque should I use?
Tighten evenly in small increments around the band. Final torque depends on hardware and lubricant; avoid over-torquing. If unsure, reach out and we’ll advise for your setup.
Do I need a new gasket?
The S400 CHRA-to-turbine joint is a metal-to-metal V-band interface. Ensure clean, flat mating surfaces; gaskets are typically not used at this joint.
Why Buy from CPP Diesel
- Diesel turbo specialists with hands-on S300/S400 compound experience
- Fast shipping, protective packaging, and real tech support
- Deep catalog coverage for Cummins, Powerstroke & Duramax
