Product Description

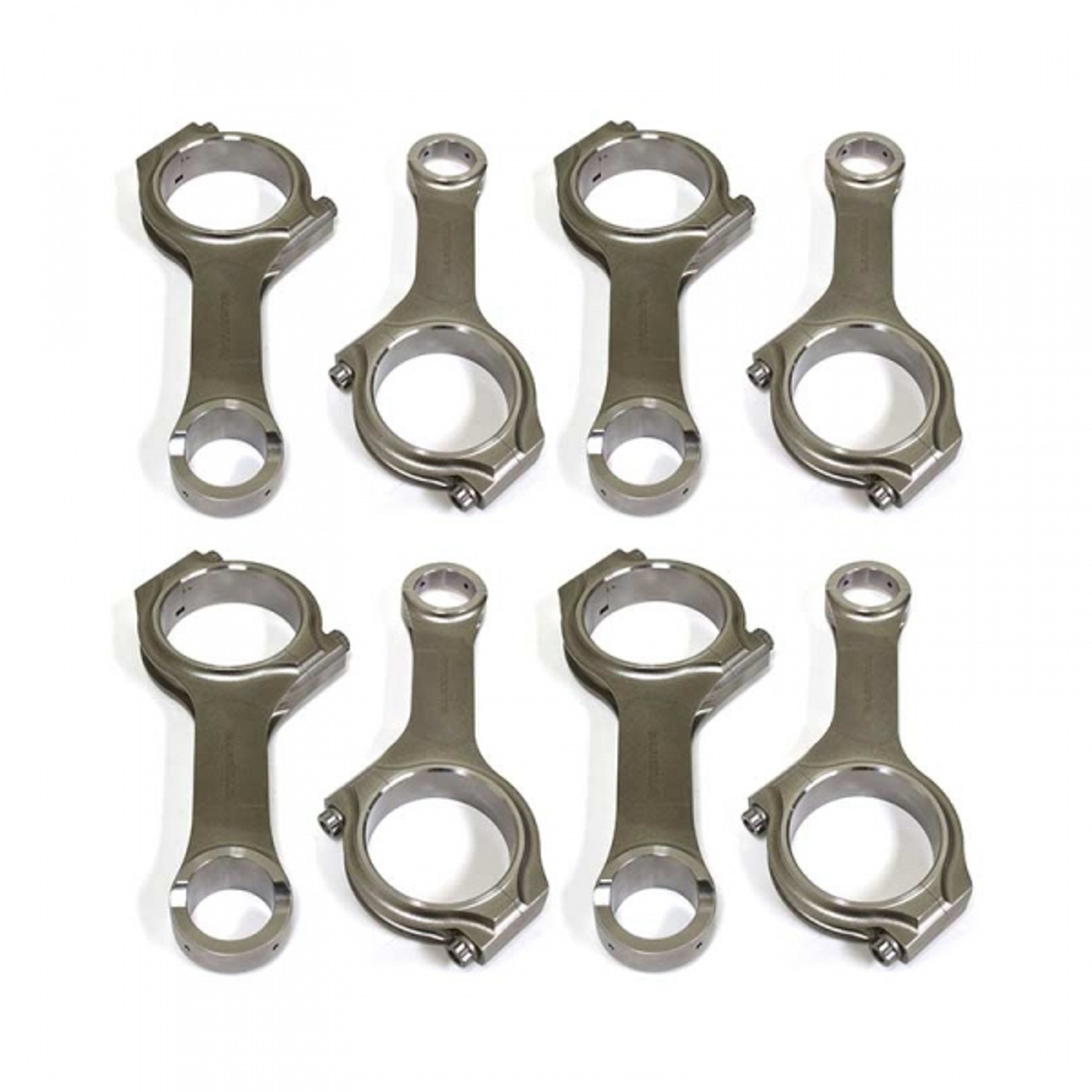

CARRILLO PS737130S 7.3L POWERSTROKE PRO-H CONNECTING ROD SET (WITH CARR BOLTS)
Build a bottom end that laughs at boost. The CP-Carrillo PS737130S Pro-H connecting rod set pairs race-proven forging with CARR multiphase bolts for serious 7.3L Powerstroke builds (set of 8). Each rod is manufactured from an oversized forging for ideal grain flow, CNC-checked for dimensional integrity, magnaflux inspected, Rockwell tested, shot peened, and matched by end weight—engineering choices trusted by top engine builders.
Fitment
- Ford Powerstroke 7.3L (1994–2003), F-250 / F-350 / F-450 / F-550 (engine family 7.3L DI) — set of 8 rods.
Key Specs
- Center-to-center length: 7.130 in
- Bolt size/type: 7/16" CARR multiphase
- Big-end bore: 2.6905 in (68.339 mm); Big-end width: 1.230 in
- Pin size: 1.309 in; Pin-end width: 1.230 in (tapered)
- Sold as: Set of 8 rods
Specification values per supplier tech listing; production tolerances apply.
Cross-Reference / Alternatives (CP-Carrillo on CPP Diesel)
- Need H-11 bolts instead? See CARRILLO PS737130H 7.3L PRO-H (H-11 BOLTS).
- Building a 6.0L? See CARRILLO PS606929S 6.0L PRO-H (CARR BOLTS).
- Building a 6.4L? See CARRILLO PS646929S 6.4L PRO-H (CARR BOLTS).
Shop the full CP-Carrillo lineup on our brand page.
Why Buy From CPP Diesel
- Authorized CP-Carrillo source, diesel-focused support
- Fast shipping and real-world tech help
FAQ
Will these rods support high boost and heavy tow duty?
Yes. The Pro-H design, premium CARR bolts, and rigorous QC are engineered for extreme diesel applications including high boost, racing, and heavy towing. Always have clearances and fastener stretch verified by a qualified engine builder.
What’s the difference between PS737130S and PS737130H?
Both are Pro-H rods for 7.3L. The S set includes CARR multiphase bolts (higher tensile spec), while the H set includes H-11 bolts. Choose based on your power goals and builder preference. Cross-link above.
Is there a Prop 65 warning?
Yes. California Proposition 65 applies (Cancer & Reproductive Harm).
Specifications for CP CARRILLO PS737130S
| Attribute | Value |
|---|---|
| Brand | CP-Carrillo |
| Part Number | PS737130S |
| UPC | Not provided by manufacturer (some resellers list “MM-13421” as an internal barcode, not a GS1 UPC) |
| GTIN (EAN) | Not provided by manufacturer |
| Turbo Series | Not applicable (connecting rods) |
| E-Codes | Not applicable |
| Cross Reference | PS737130H (7.3L, H-11 bolts); PS606929S (6.0L); PS646929S (6.4L) |
| Shipping Weight | ~35 lb |
| Package Dimensions | ~12 in × 12 in × 5 in |
| Prop 65 | WARNING: Cancer & Reproductive Harm |
