Product Description

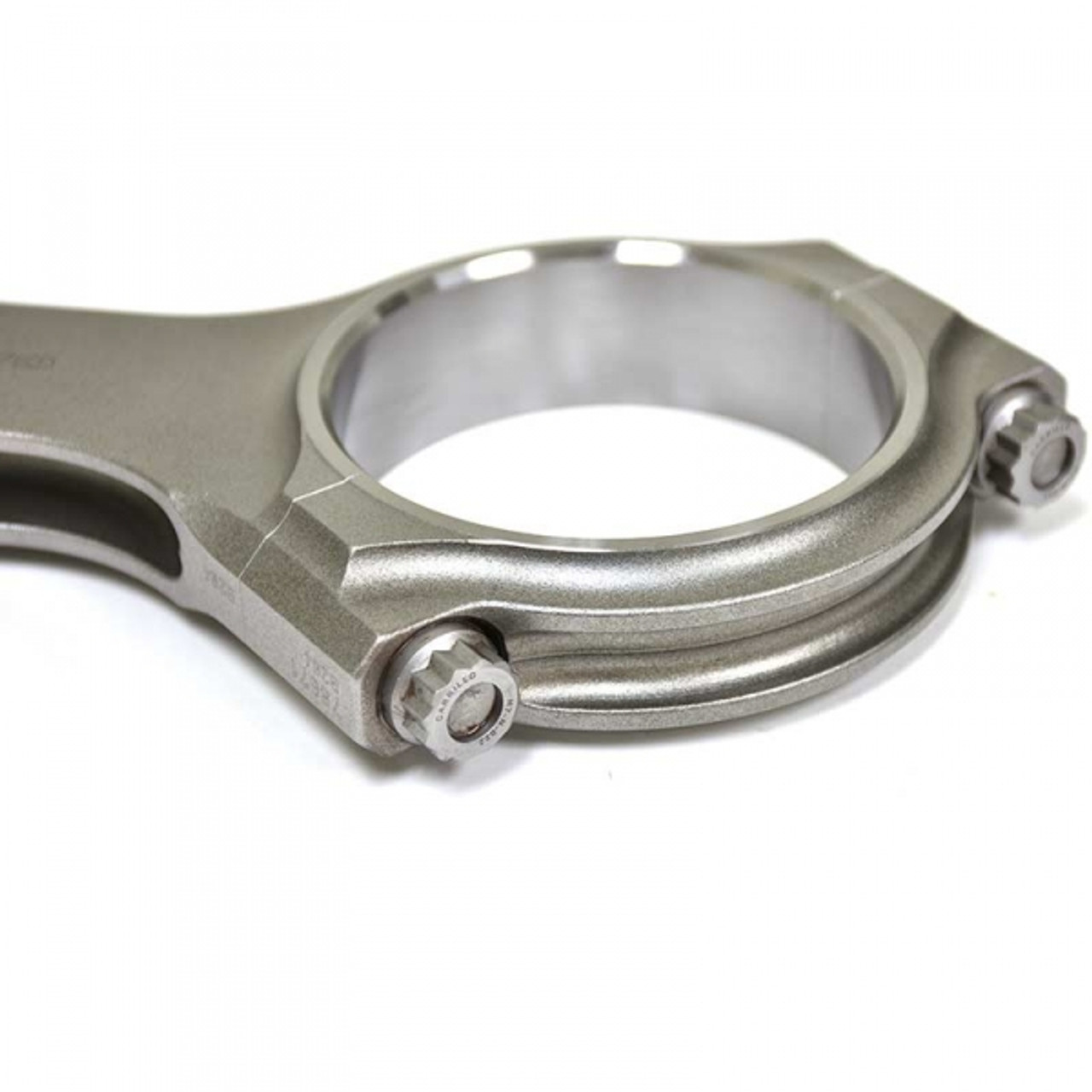

CP CARRILLO PS6716HD6969H, 6.7L POWERSTROKE CONNECTING RODS, PRO-H, H-11 BOLTS, DIESEL PERFORMANCE, BILLET STEEL, VAR STEEL, SHOT PEENED, CPP DIESELLevel up your 2016–2019 Ford 6.7L Power Stroke build with the CP-Carrillo PS6716HD6969H Pro-H Connecting Rod Set. Engineered from CP-Carrillo’s race-proven alloy and secured with H-11 tool-steel fasteners, these rods deliver exceptional strength, precise big-end sizing, and durability for high-boost, heavy-tow, and competition use.
- Designed specifically for 2016–2019 Ford 6.7L Power Stroke (F-250, F-350, F-450, F-550).
- Pro-H beam profile for superior rigidity and stability under extreme cylinder pressure.
- Premium H-11 rod bolts for reliable clamp load in high-RPM, high-boost environments.
- Fully machined, shot-peened, and quality-checked for consistent weight and sizing across all eight rods.
Fitment
Ford 6.7L Power Stroke diesel, model years 2016, 2017, 2018, 2019 (F-250/F-350/F-450/F-550). Set of 8 rods.
Cross-Reference / Alternatives (CP-Carrillo only)
- 2011–2015 6.7L, Pro-H with CARR bolts: CARRILLO PS67HD6969H
- 2011–2015 6.7L, Pro-H with CARR bolts (alt listing): CARRILLO PS67HD6969S
- 2008–2010 6.4L, Pro-H H-11: CARRILLO PS646929H
- 2008–2010 6.4L, Pro-H CARR: CARRILLO PS646929S
- 2003–2007 6.0L, Pro-H H-11: CARRILLO PS606929H
- 2003–2007 6.0L, Pro-H CARR: CARRILLO PS606929S
- 1994–2003 7.3L, Pro-H CARR: CARRILLO PS737130S
Why Buy From CPP Diesel
Enthusiast support, fast shipping, and proven parts. We stock the diesel components serious builders trust—backed by real-world tech help.
FAQ
Do these rods fit all 2016–2019 6.7L Power Stroke trucks?
Yes—F-250, F-350, F-450, and F-550 with the 6.7L Power Stroke (2016–2019).
What bolts are included?
This set uses H-11 tool-steel rod bolts for maximum strength and repeatable clamp load.
Are these suitable for high-boost or towing builds?
Absolutely. The Pro-H design and H-11 fasteners are engineered for heavy tow, performance street, and competition builds.
Is machine work required?
As with any performance rod set, always verify clearances and bearing sizing during assembly; professional installation is recommended.
Specifications for CP CARRILLO PS6716HD6969H
| Brand | CP-Carrillo |
| Part Number | PS6716HD6969H |
| Engine | Ford 6.7L Power Stroke (2016–2019) |
| Configuration | Pro-H beam, set of 8, 7/16" H-11 bolts |
| Center-to-Center Length | 6.969" (nominal) |
| Material / Process | CP-Carrillo proprietary VAR-grade steel, shot-peened, precision machined |
| UPC | Not specified by manufacturer |
| GTIN | Not specified by manufacturer |
| Shipping Info | Ships from CPP Diesel or manufacturer; shipping calculated at checkout |
| Cross Reference | PS67HD6969H (11–15 6.7L), PS646929H/S (08–10 6.4L), PS606929H/S (03–07 6.0L), PS737130S (94–03 7.3L) |
| E-Codes | N/A (connecting rods) |
| Turbo Series | N/A (engine internals) |
| Prop 65 | This product may contain materials known to the State of California to cause cancer or reproductive harm. See P65Warnings.ca.gov. |
