Product Description

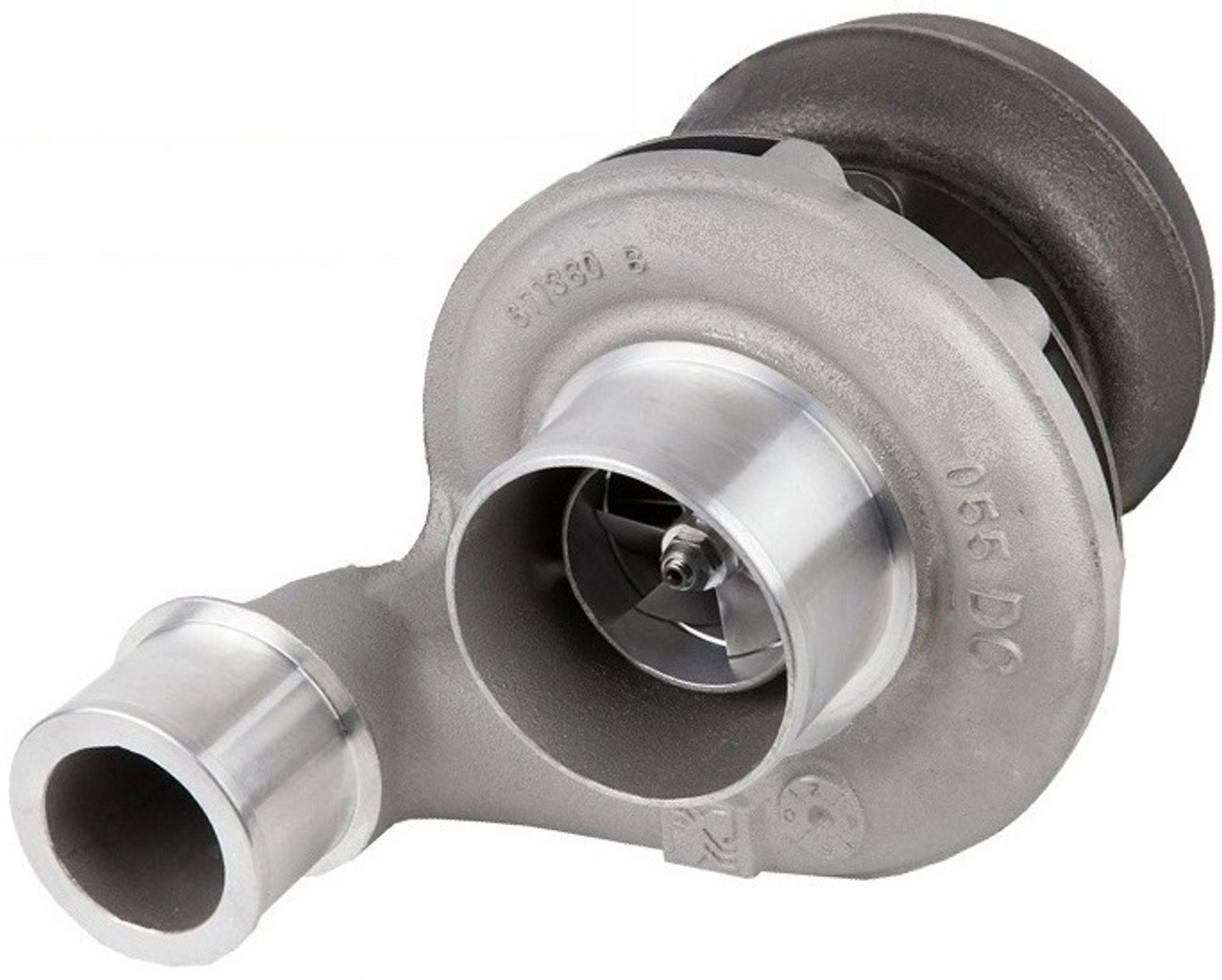

BorgWarner 177284 S300SX3 Turbocharger — S366/74, .91 A/R, T4 Housing

BORGWARNER 177284 combines a 66mm S366 compressor, 74mm turbine, and a .91 A/R T4 twin-scroll housing with a 90° compressor outlet. Built on the AirWerks S300 platform with proven journal bearings, it’s a go-to for responsive street/strip singles and S300/S400 compound atmospheres.

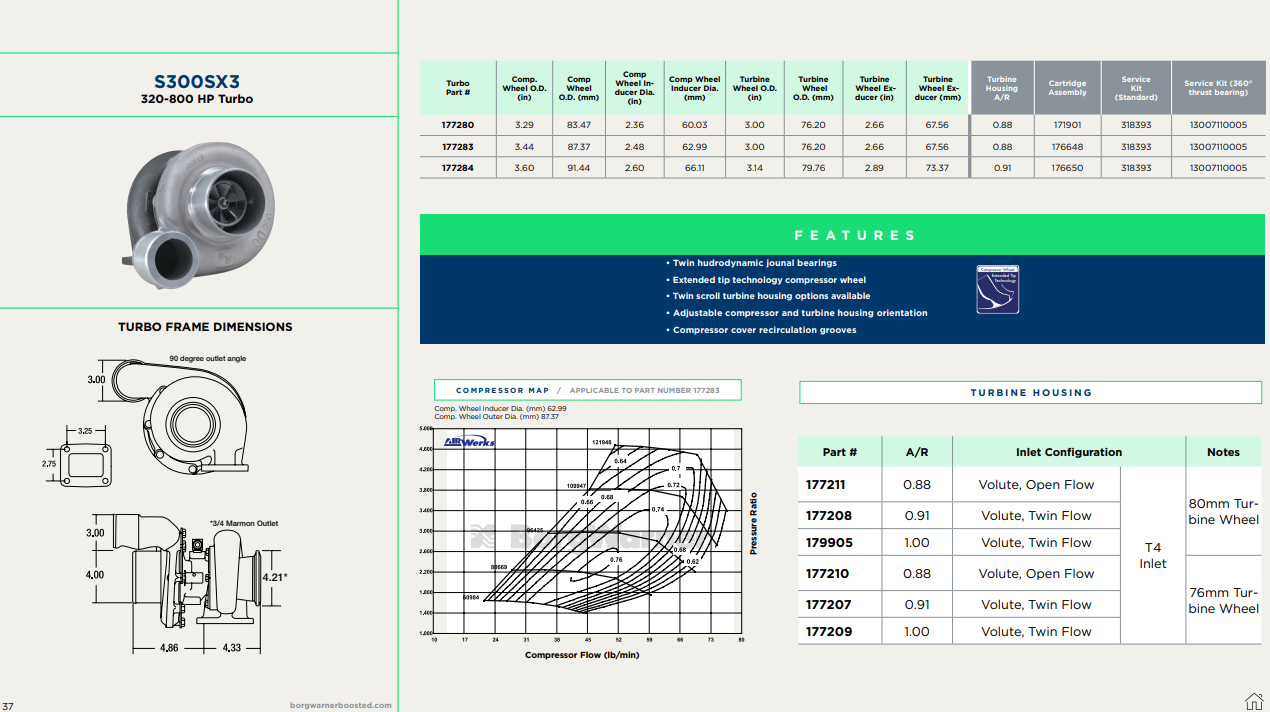

Key Specifications

• Compressor (S366): 66mm inducer, 3.60" exducer, 90° outlet
• Turbine: 74mm wheel, .91 A/R twin-scroll T4 inlet
• Center Section: journal bearings; adjustable compressor/turbine housing orientation
• Use Case: 320–800 HP builds; excellent base for compounds

Universal turbo; verify manifold flange, downpipe style, oil feed/return, and charge piping before purchase.

What’s Included

• BorgWarner 177284 S300SX3 turbocharger (S366/74, .91 A/R T4)

Recommended Add-Ons

• CPP -12AN Oil Drain Kit (S300/S400)
• Fleece FPE-34856 S300/S400 Turbo Stud Kit
• CPP S400 4.0" Compressor Discharge Elbow

Popular Build Paths

Responsive Single: Pairs well with supporting fuel/air mods; expect quicker spool than many S400s while keeping strong top-end.

Compounds: Run 177284 as the high-pressure or atmospheric unit depending on goals; we’ll spec the mate turbo, gates, and piping for you.

Shop Turbo Sections by Vehicle

Dodge/Ram Cummins

• CUMMINS MAIN HUB (Home tab)
• 1998.5–2002 5.9L (VP44) — Turbocharger
• 2003–2007 5.9L CR — Turbo/Supercharger
• 2007.5–2012 6.7L — Turbocharger
• 2013–2018 6.7L — Turbocharger
• 2019–2024 6.7L — Turbos & Accessories

Ford Powerstroke

• Powerstroke — Turbochargers
• Powerstroke Parts Hub (7.3L / 6.0L / 6.4L / 6.7L)

GM Duramax

• Duramax — Turbochargers
• Duramax Parts Hub (LB7 / LLY / LBZ / LMM / LML / L5P)

FAQ

Is the 177284 a direct bolt-on?

No. It’s a universal turbo with a T4 twin-scroll inlet and .91 A/R housing. Most OEM manifolds are T3; plan a matching manifold, downpipe, oil lines, and charge piping.

Street manners vs. S400?

The S300SX3 66mm typically spools quicker than many S400 single setups while still supporting strong top-end with proper fueling.

What’s the compressor outlet?

90-degree outlet (verify your charge pipe orientation or plan an adapter/elbow).

Do I need an oil restrictor?

Generally not for journal-bearing S300s; ensure clean feed, proper pressure, and a free-draining return (-10AN to -12AN recommended).
