BDS SUSPENSION BDS835FPE 2 INCH LIFT KIT FOX 2.5 COIL-OVER TOYOTA TACOMA 16-23 4WD FOX 2.0 PERFORMANCE SHOCKS

Up the ante in your 2016-2023 Toyota Tacoma truck with style and performance by installing this 2-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. Additionally, 1 inchfront differential spacers and longer hardware is supplied to reposition the front differential to keep CV axles within the correct operating angles.Р’В

In the rear, BDS supplies a set of add-a-leafs to provide 1 inch of lift to level out the truck and utilizes a complementary set of FOX 2.0 Performance shocks for an improved ride. Optional rear FOX 2.5 Dual Speed Compression Adjust reservoir shocks are available for maximum off road capabilities.

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 2 inch

1. 285/75R16 with 4.5 inch back space will require trimming.

2. 285/70R17 with 4.5 inch back space will require trimming.

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 285 / 70 Wheel Diameter: 17 x 8 Back Spacing: 4.5

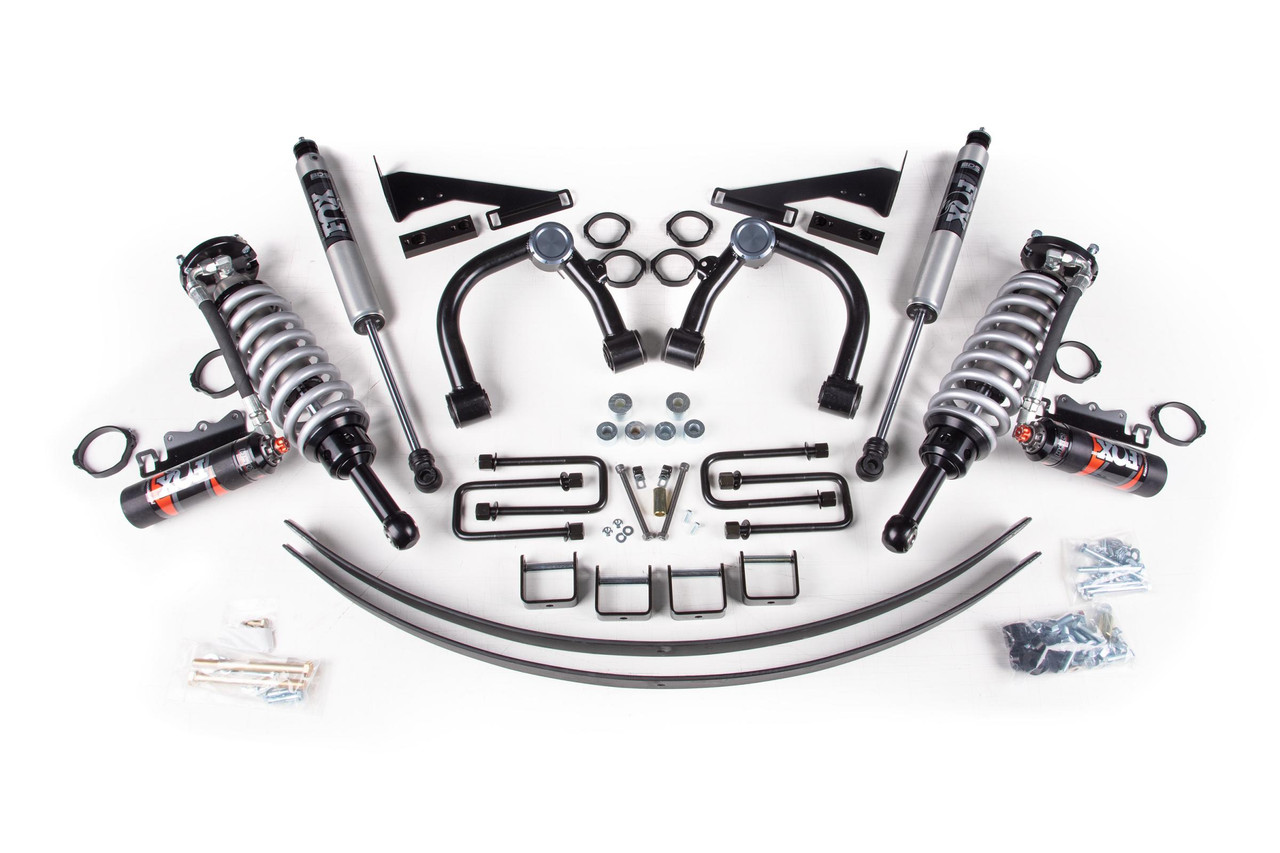

Kit Components:

• Includes one BDS018217, 2005-2023 Toyota Tacoma Add-A-Leaf Kit, UPC Code 658848614417
• Includes one BDS028301, 2005-2023 Toyota Tacoma 3 inch Coilover Front Box Kit, UPC Code 658848616145
• Includes one FOX88306178, Kit: 05-ON Toyota Tacoma, Front, Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2-3 inch Lift, Dual Speed Compression Adjust
• Includes two FOX98024670, 05-ON Toyota Tacoma Rear, PS, 2.0, Internal Floating Piston, 8.1 inch, 0-1 Inch Lift

Transform your 2016-2023 Toyota Tacoma into an off-road powerhouse with the BDS Suspension BDS835FPE 2-inch Lift Kit featuring FOX 2.5 Coil-Over shocks. Engineered for enhancing performance, capability, and style, this comprehensive lift kit equips your Tacoma for adventure, allowing for the installation of up to 33-inch tires.

The front section utilizes FOX 2.5 Factory Series remote reservoir coil-over shocks paired with heavy-duty tubular upper control arms, designed to withstand rigorous use while enhancing strength and stability. Included are 1-inch front differential spacers and longer hardware, ensuring optimal positioning of the front differential and maintaining correct operating angles for CV axles.

The rear lift method incorporates add-a-leaf components for an additional inch of lift, leveling out your truck and optimizing its stance. Complementing the rear setup are FOX 2.0 Performance shocks, which deliver an improved ride quality. For those seeking maximum off-road capabilities, optional rear FOX 2.5 Dual Speed Compression Adjust reservoir shocks can be added for unbeatable performance.

The FOX Performance Elite shocks stand out by delivering exceptional on-road comfort and unrivaled off-road durability. Designed with a remote reservoir for efficient heat management, they feature a Dual Speed Compression Adjust system, allowing for precise tuning across multiple compression levels. Built with robust 2.5-inch diameter construction, these shocks are primed for intense conditions.

The kit also includes high-strength upper control arms constructed from tubular materials to enhance suspension travel while maintaining accurate ball joint positioning. Finished in durable black powder coat, these arms come ready for a hassle-free installation.

With all parts designed for easy, bolt-on installation and a factory protection plus drivetrain warranty, the BDS835FPE Lift Kit is the perfect enhancement for Tacoma enthusiasts ready to elevate their driving experience.
