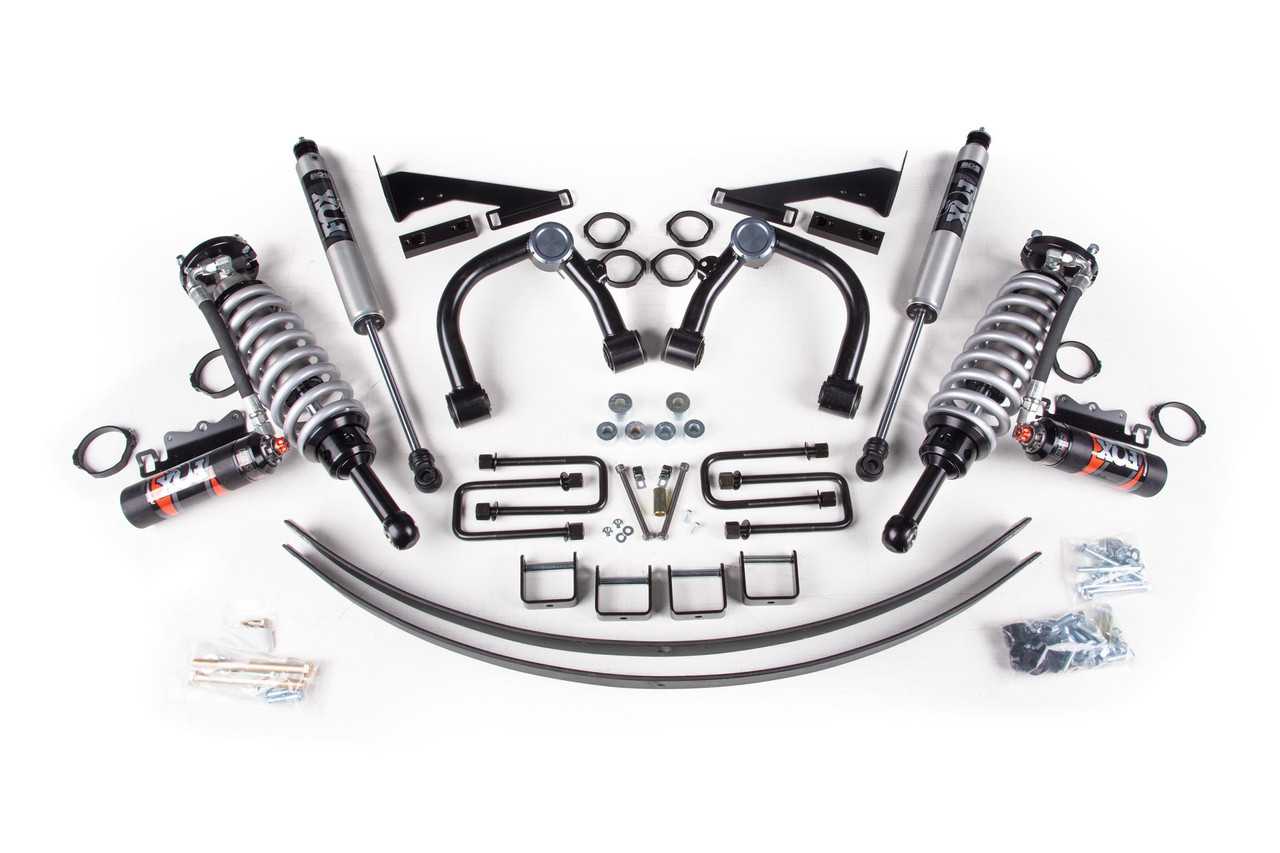

BDS SUSPENSION BDS831FPE 3 INCH LIFT KIT FOX 2.5 COIL-OVER TOYOTA TACOMA 05-15 4WD FOX 2.0 PERFORMANCE SHOCKS

Up the ante in your 2005-2015 Toyota Tacoma truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. Additionally, 1 inchfront differential spacers and longer hardware is supplied to reposition the front differential to keep CV axles within the correct operating angles.

In the rear, BDS supplies a set of add-a-leafs to provide 1 inchof lift to level out the truck and utilizes a complementary set of FOX 2.0 Performance shocks for an improved ride. Optional rear FOX 2.5 Dual Speed Compression Adjust reservoir shocks are available for maximum off road capabilities.

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Add-A-Leaf
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Rear Shock Option FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 285 / 70 Wheel Diameter: 17 x 8 Back Spacing: 4.5

Kit Components:

• Includes one BDS018217, 2005-2023 Toyota Tacoma Add-A-Leaf Kit, UPC Code 658848614417
• Includes one BDS028301, 2005-2023 Toyota Tacoma 3 inch Coilover Front Box Kit, UPC Code 658848616145
• Includes one FOX88306178, Kit: 05-ON Toyota Tacoma, Front, Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2-3 inch Lift, Dual Speed Compression Adjust
• Includes two FOX98024670, 05-ON Toyota Tacoma Rear, PS, 2.0, Internal Floating Piston, 8.1 inch, 0-1 Inch Lift

Transform your 2005-2015 Toyota Tacoma into a standout powerhouse with the BDS SUSPENSION BDS831FPE 3 Inch Lift Kit. Engineered for both performance and style, this lift kit elevates your truck's stance by three inches, allowing for the installation of larger tires up to 33 inches. Featuring FOX Performance Elite 2.5 coil-over shocks, this kit ensures improved handling and comfort on any terrain, from rugged trails to city streets.

The BDS831FPE kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks paired with heavy-duty tubular upper control arms, significantly enhancing strength and ride quality. Additional components, like the 1-inch front differential spacers, maintain proper CV axle angles during your adventures. The rear section utilizes BDS add-a-leafs to provide an extra inch of lift, complemented by FOX 2.0 Performance shocks for a balanced and smooth ride.

With cutting-edge technology, the FOX 2.5 Performance Elite shocks are pre-tuned for optimal performance, allowing you to effortlessly tackle challenging landscapes. The remote reservoir design increases fluid capacity, keeping the shocks cool and operational even under heavy stress. Furthermore, the dual-speed compression adjuster provides exceptional versatility, enabling fine-tuning for various driving conditions with 10 low-speed and 12 high-speed compression levels.

The included upper control arms are built using robust tubular construction for added travel, featuring indexed ball joint cups that improve suspension dynamics. Finished in a sleek black powder coat and equipped with maintenance-free, greaseable joints, these components are designed for ease of installation and longevity.

Experience a superior driving experience while maintaining the aesthetic appeal of your Tacoma with this comprehensive lift kit that delivers both style and performance.
